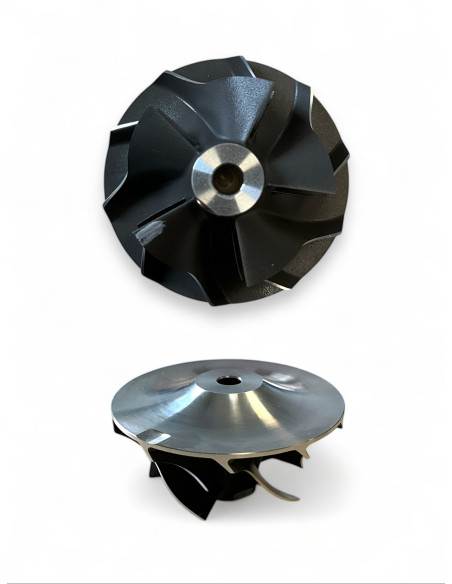

Compressor Wheel CW-G053
CW-G053
Neu
Please login to see prices and stock
717694-0016, CW-G053
Compressor Wheel CW-G053 for turbos 740067-0002, 755046-0001, 755046-0002, 755046-0003, 755046-0004, 762660-0002, 766340-0001, 766340-0002, 773720-0001.
CW-G053 - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-G053
CW-G053 - Alternative numbers
GHO (Garrett original part number): 717694-0016
CW-G053 - Compatibility table
| Compressor Wheel CW-G053 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT1749MV | 740067-0002 | 55188659, 55190872, 55193106, 55195788, 55196766, 55196859, 55205356, 55205483, 55211063, 55217692, 93184791 |
| Garrett | GT1749MV | 755046-0001 | 55196859 |
| Garrett | GT1749MV | 755046-0002 | 55196766 |
| Garrett | GT1749MV | 755046-0003 | 55205356 |
| Garrett | GT1749MV | 755046-0004 | 7550460004 |
| Garrett | GT1749MV | 762660-0002 | -- |
| Garrett | GT1749MV | 766340-0001 | 55205483 |
| Garrett | GT1749MV | 766340-0002 | 55205483 |
| Garrett | GT1749MV | 773720-0001 | -- |
CW-G053 - Part Properties
Blades (Compressor wheel blades count): 5/5
Trim (Compressor wheel trim): Deep Superback
Exducer diameter A (Exducer diameter A): 49.0
Inducer diameter B (Inducer diameter B): 36.5
Tip Height C (Tip Height C): 4.0
Total Height D (Total Height D): 26.5
Model (Model): GT15-25
55188659, 55190872, 55193106, 55195788, 55196766, 55196859, 55205356, 55205483, 55211063, 55217692, 740067-0002, 93184791, 55196859, 755046-0001, 55196766, 755046-0002, 55205356, 755046-0003, 755046-0004, 7550460004, 762660-0002, 55205483, 766340-0001, 55205483, 766340-0002, 773720-0001
Data updated: 2025-09-02 14:51:09
