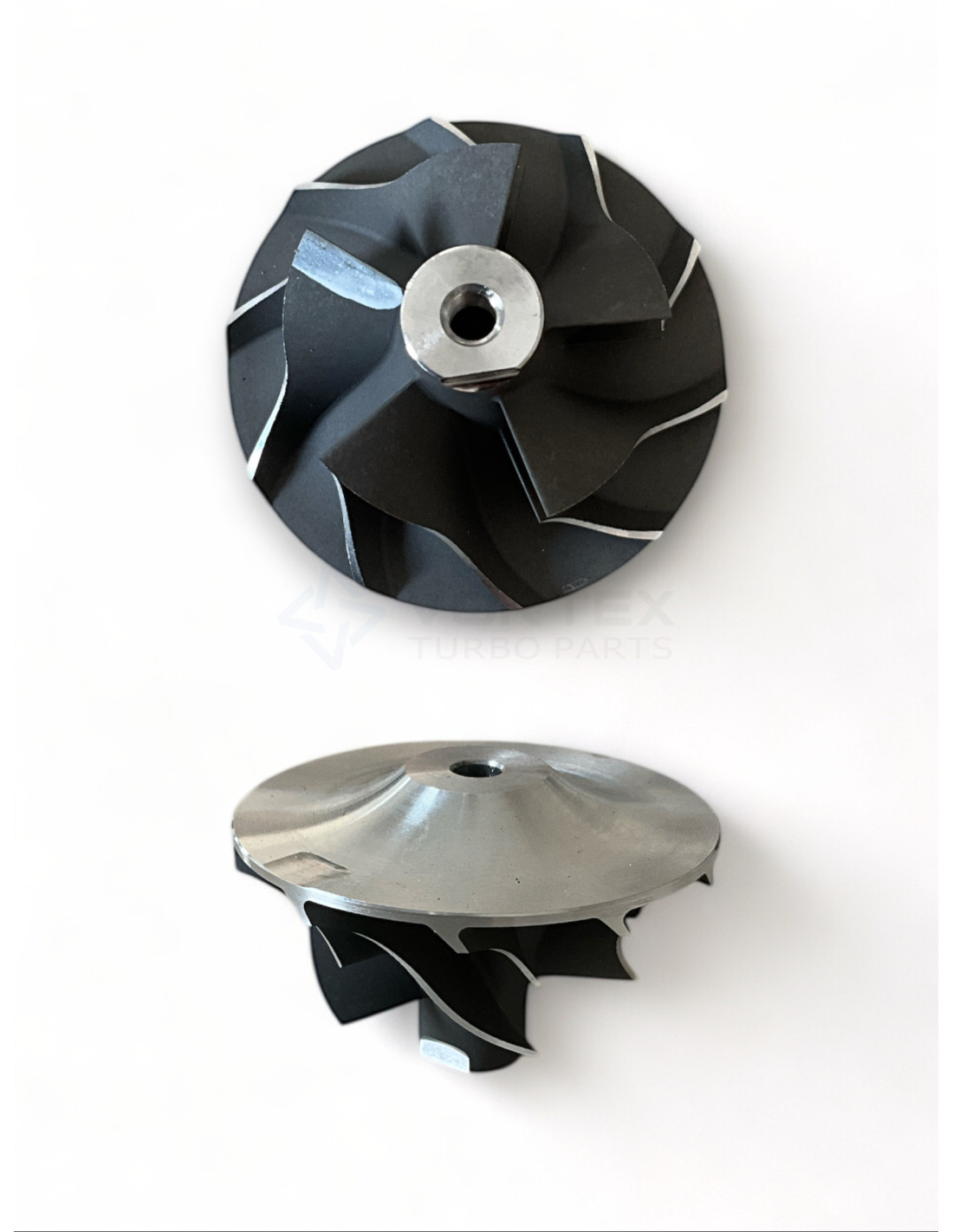

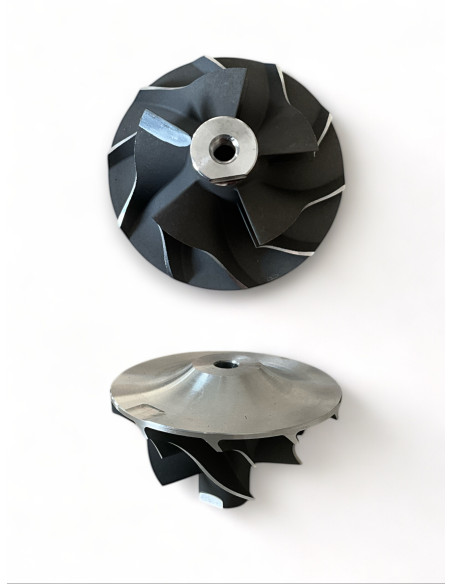

Compressor Wheel CW-G019
CW-G019
Neu
Please login to see prices and stock
Compressor Wheel CW-G019 for turbos 780708-0001, 780708-0002, 780708-0003, 780708-0004, 780708-0005, 780708-0006, 780709-0003, 780709-0006.
CW-G019 - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-G019
CW-G019 - Compatibility table
| Compressor Wheel CW-G019 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GTB1241VKZ | 780708-0001 | -- |
| Garrett | GTB1241VKZ | 780708-0002 | -- |
| Garrett | GTB1241VKZ | 780708-0003 | -- |
| Garrett | GTB1241VKZ | 780708-0004 | -- |
| Garrett | GTB1241VKZ | 780708-0005 | -- |
| Garrett | GTB1241VKZ | 780708-0006 | -- |
| Garrett | GT1241VZ | 780709-0003 | -- |
| Garrett | GT1241VZ | 780709-0006 | -- |
CW-G019 - Part Properties
Blades (Compressor wheel blades count): 5/5
Trim (Compressor wheel trim): Superback
Exducer diameter A (Exducer diameter A): 41.0
Inducer diameter B (Inducer diameter B): 29.0
Tip Height C (Tip Height C): 3.2
Total Height D (Total Height D): 26.8
Model (Model): GT14
780708-0001, 780708-0002, 780708-0003, 780708-0004, 780708-0005, 780708-0006, 780709-0003, 780709-0006
Data updated: 2025-09-08 16:44:06
