Back plate BP-G005
Back plate BP-G005

Back plate BP-G005

BP-G005
In Stock (177 Items)
€8.35
Tax included

700593-0006, BP-G005

Back plate BP-G005 for turbos 454183-0001, 454183-0002, 454183-0003, 454183-0004, 454183-0005, 454195-0001, 454216-0001, 454216-0002, 454216-0003, 454219-0001.



BP-G005 - Back plate

Brand: Vortex

Vortex Reference: BP-G005

BP-G005 - Alternative numbers

GHO (Garrett original part number): 700593-0006

BP-G005 - Compatibility table

Back plate BP-G005 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749V454183-0001028145702E
GarrettGT1749V454183-0002028145702E
GarrettGT1749V454183-0003028145702E
GarrettGT1749V454183-0004028145702E
GarrettGT1749V454183-0005028145702E
GarrettGT1749V454195-0001--
GarrettGT1549S454216-000124442214, 860027, 860046, 90570506
GarrettGT1549S454216-000224442214, 860027, 860046, 90570506
GarrettGT1549S454216-000324442214, 860027, 860046, 90570506
GarrettGT1549S454219-0001--
GarrettGT1549S454219-0002--
GarrettGT1549S454219-0003--
GarrettGT1549S454219-0004--
GarrettGT1549S454229-0001--
GarrettGT1549S454229-0002--
GarrettGT1749V454231-0001028145702H
GarrettGTA1749V454231-0002028145702R, 038145702L
GarrettGT1749V454231-0003028145702H
GarrettGT1749V454231-0004028145702H
GarrettGT1749V454231-0005028145702H, 028145702HV225
GarrettGT1749V454231-0006028145702R, 028145702RV225, 038145702L
GarrettGT1749V454231-0008028145702R, 028145702RV500, 038145702L
GarrettGT1749V454231-0009028145702R, 028145702RV550, 038145702L
GarrettGTA1749V454231-0010038145702L
GarrettGT1749V454231-0012028145702H, 028145702HV500
GarrettGT1749V454231-0013028145702R, 038145702L
GarrettGT1749V454232-0001038253019, 038253019A
GarrettGT1749V454232-0002038253019D
GarrettGT1749V454232-0003038253019, 038253019A, 03G253016K
GarrettGT1749V454232-0004038253019, 038253019A
GarrettGT1749V454232-0005038253019, 038253019A, 038253019AV200
GarrettGT1749V454232-0006038253019D
GarrettGT1749V454232-0011038253019D, 038253019DV500
GarrettGTA1749MV454232-0014038253019DV500
GarrettGT1549V700447-000111652247297, 11652248901, 11652248905, 2247297F
GarrettGT1549V700447-000311652247297, 11652248901, 11652248905, 2247297G
GarrettGT1549V700447-00042248901G, 2248905G
GarrettGT1549V700447-000511652247297, 11652248901, 11652248905, 2247297H
GarrettGT1549V700447-000611652247297, 11652248901, 11652248905, 2247905H
GarrettGT1549V700447-000711652247297, 11652248901, 11652248905, 2247901H
GarrettGT1749V701470-0001--
GarrettGT1749V701470-0002--
GarrettGT1749V701470-0003--
GarrettGT1749V701470-0004--
GarrettGT1749V701854-0002--
GarrettGT1749V701854-0003--
GarrettGT1749V701854-0004--
GarrettGT1749V701855-0001028145702P, 1094742, 95VW9G438BA
GarrettGT1749V701855-0002028145702S, 1094743, 95VW9G438CA
GarrettGT1749V701855-0005028145702P, 028145702PV500
GarrettGT1749V701855-0006028145702S, 028145702SV500
GarrettGT1749V701855-0007028145702P, 028145702PV500
GarrettGT1749V701855-0008028145702S, 028145702SV500
GarrettGTA1749VK703672-00012249865B
GarrettGTA1749VK703672-000277854099
GarrettGTA1749VK703672-00032249865E
GarrettGTA1749VK703672-000477854099C
GarrettGTA1749VK703673-0001--
GarrettGTA1749VK703673-0002--
GarrettGT1849V703894-0001--
GarrettGT1849V703894-000209202690
GarrettGT1849V703894-000324442215
GarrettGT1749V704505-0001--
GarrettGT1849V705097-0001--
GarrettGT1849V705097-0002--
GarrettGT1849V705204-0001--
GarrettGT1849V705204-0002--
GarrettGT1749V705650-0001--
GarrettGT1749V708366-00017781450B, LR006108, STC4546
GarrettGT1749V708366-0002--
GarrettGT1749V708366-0003--
GarrettGT1749V708366-0004--
GarrettGT1749V708366-0006--
GarrettGT1749V708366-0007--
GarrettGT1749V708366-0008--
GarrettGT1749V712077-0001--
GarrettGT1749V712078-0001--
GarrettGT1749V712078-0002--
GarrettGT1749V712968-0001038253019L, 03G253016P
GarrettGT1749V712968-0002038253019L, 03G253016P
GarrettGT1749V712968-0003038253019L, 038253019LV225, 03G253016P
GarrettGT1749V712968-0004038253019L, 038253019LV500, 03G253016P
GarrettGT1749V712968-0005038253019L, 038253019LV500, 03G253016P
GarrettGT1749V712968-0006038253019L, 03G253016P
GarrettGT1749V712968-0007038253019L, 03G253016P
GarrettGT1749V713672-0001038253019C, 03G253016L
GarrettGT1749V713672-0002038253019C, 038253019CV500, 03G253016L
GarrettGT1749V713672-0003038253019C, 038253019CV225, 03G253016N
GarrettGT1749V713672-0004038253019C, 038253019CV500, 03G253016L
GarrettGT1749V713672-0005038253019C, 038253019CV500, 03G253016L, 03G253016N
GarrettGT1749V713672-0006038253019C, 03G253016L, 03G253016N
GarrettGT1749V713673-0002038253019N, 038253019NV225, 03G253014E
GarrettGT1749V713673-0003038253019N, 038253019NV225, 03G253014E
GarrettGT1749V713673-0004038253019N, 038253019NV500, 03G253014E, 1135819, 1556571, 6M219G438AA, YM219G438BA
GarrettGT1749V713673-0005038253019NV500, 1135819, 6M219G438AA
GarrettGT1749V713673-0006038253019N, 03G253014E, 1556571
GarrettGT1749V713673-0007038253019N, 03G253014E, 1135819, 1556571, 6M219G438AA, YM219G438BA
GarrettGTA1749VK714486-00017786799B
GarrettGTA1749VK714486-00027786801B
GarrettGTA1749VK714486-00057786799C
GarrettGTA1749VK714486-00067786801C
GarrettGTA1749VK714486-00087786801C
GarrettGT1749V715294-0001--
GarrettGT1749V715294-0002--
GarrettGT1749V715294-0003--
GarrettGT1749V716213-0001038253016D, 038253016G, 038253019G, 03G253016R
GarrettGT1749V716215-0001--
GarrettGT1749V716216-0001--
GarrettGT1749V716419-0002--
GarrettGT1749V716860-0001038253016E, 038253016F, 03G253016Q
GarrettGT1749V716860-0002038253016E, 038253016F, 03G253016Q
GarrettGT1749V716860-0003038253016E, 038253016F, 03G253016Q
GarrettGT1749V717478-000111657787628, 11657793093, 11657794144, 7787626F
GarrettGT1749V717478-000211657787628, 11657793093, 11657794144, 7787626F
GarrettGT1749V717478-000311657787628, 11657793093, 11657794144, 7787626F
GarrettGT1749V717478-000411657787628, 11657793093, 11657794144, 7787626G
GarrettGT1749V717478-000511657787628, 11657793093, 11657794144, 7787627G
GarrettGT1749V717478-00067787628G
GarrettGT1849V717625-0001--
GarrettGT1849V717626-000124445062
GarrettGT1849V717626-0004860086
GarrettGT1849V717628-000124443096
GarrettGTA1749V717858-0001038145702E, 038145702G, 038145702J, 038145702N
GarrettGTA1749V717858-0002038145702E, 038145702EV110, 038145702G, 038145702J, 038145702N
GarrettGTA1749V717858-0003038145702E, 038145702G, 038145702J, 038145702N
GarrettGTA1749V717858-0004038145702E, 038145702G, 038145702GV105, 038145702J, 038145702N
GarrettGTA1749V717858-0005038145702E, 038145702G, 038145702J, 038145702N
GarrettGTA1749V717858-0006038145702E, 038145702G, 038145702GV505, 038145702J, 038145702N
GarrettGTA1749V717858-0007038145702E, 038145702G, 038145702GV550, 038145702J, 038145702N
GarrettGT1749V720855-0001038253016E, 038253016F, 03G253016Q
GarrettGT1749V720855-0003038253016E, 038253016F, 038253016FV115, 03G253016Q
GarrettGT1749V720855-0004038253016E, 038253016F, 038253016FV500, 03G253016Q
GarrettGT1749V720855-0005038253016E, 038253016F, 038253016FV510, 03G253016Q
GarrettGT1749V720855-0006038253016E, 038253016F, 03G253016Q
GarrettGT1749V720855-000703G253016Q
GarrettGT1749V721021-0001038253016D, 038253016G, 038253019G, 03G253016R
GarrettGT1749V721021-0003038253016D, 038253016G, 038253019G, 03G253016R
GarrettGT1749V721021-0004038253016D, 038253016G, 038253016GV500, 038253019G, 03G253016R
GarrettGT1749V721021-0005038253016D, 038253016G, 038253016GV510, 038253019G, 03G253016R
GarrettGT1749V721021-0006038253016D, 038253016G, 038253019G, 03G253016R
GarrettGT1749V721875-000118900PLZD00, 8972873794
GarrettGT1749V721875-000518900PLZD00, 8972873792
GarrettGT1749V722010-000311657789077, 77890582A, 7789069E, 7789076F
GarrettGT1749V722010-000411657789077, 77890582A, 7789069E, 7789076F
GarrettGT1749V722010-000811657789077, 77890582A, 7789069E, 7789076F
GarrettGT1749V722011-000311657789076, 7789070E, 7789077F, 7789583A
GarrettGT1749V722011-000411657789076, 7789070E, 7789077F, 7789583A
GarrettGT1749V722011-000711657789076, 7789070E, 7789077F, 7789583A
GarrettGT1749V722730-0001038253016H
GarrettGT1749V722730-0003038253016H, 038253016HV500
GarrettGT1749V722730-0005038253016H, 038253016HV500
GarrettGT1749V724930-000203G253010J, 03G253014H, 03G253019A
GarrettGT1749V724930-000403G253010J, 03G253014H, 03G253019A
GarrettGT1749V724930-000603G253010J, 03G253014H, 03G253019A, 03G253019AV550
GarrettGT1749V729325-0002070145701K, 070145701KV301
GarrettGT1749V729325-0003070145701K, 070145701KV302
GarrettGT1749V729325-0004070145701K, 070145701KV302
GarrettGT1749V731877-000411657790994, 7790992H
GarrettGT1749V731877-00077790994H
GarrettGT1749V731877-00097790994I
GarrettGTA1749V733701-0001--
GarrettGTA1749V733701-0002--
GarrettGTA1749V733701-0003--
GarrettGTA1749V733701-0004--
GarrettGT1749V740911-00017790221C
GarrettGT1749V740911-00037790223C
GarrettGT1749V740911-00067790223D03
GarrettGT1749V740911-00077790223D03
GarrettGT1749V741785-00047792413
GarrettGT1749V741785-00077792413
GarrettGT1749V741785-00107792412F
GarrettGT1749V741785-00137792412
GarrettGT1749V741785-00147792413
GarrettGT1749V741785-00167792413
GarrettGT1749V742614-0001--
GarrettGT1749V742614-0002--
GarrettGT1749V742614-0003--
GarrettGT1749V742614-0004--
GarrettGTA1749VK742785-0004--
GarrettGTA1749VK742785-0007--
GarrettGTA1749VK742785-0010--
GarrettGTA1749VK742785-0013--
GarrettGT1749V750431-000411657787628, 11657792413, 11657793093, 11657794022, 11657794144, 7794140C
GarrettGT1749V750431-000711657787628, 11657792413, 11657793093, 11657794022, 11657794144, 7794140D
GarrettGT1749V750431-001011657787628, 11657792413, 11657793093, 11657794022, 11657794144, 7794140000
GarrettGT1749V750431-00127794144000
GarrettGT1749V750431-00137794144000
GarrettGT1749V750718-0001--
GarrettGT17 VNT750720-0003--
GarrettGT1749V753556-00029654919580
GarrettGT1749V756047-00029658673480
GarrettGT1749V756047-00040375K8, 9662301280
GarrettGT1749V756047-00050375K8, 9682778680
GarrettGT1749V756047-00060375K8, 9682778680
GarrettGT1749V756062-000203G253014J, MN980201
GarrettGTB1649V757886-00032823127400
GarrettGTB1649V757886-00042823127450
GarrettGTB1649V757886-00052823127460
GarrettGTB1649V757886-00062823127860
GarrettGTB1649V757886-00072823127480
GarrettGTB1649V757886-00082823127470
GarrettGT1749V758219-000203G145702F
GarrettGT1749V758219-000303G145702F, 03G145702K
GarrettGT1749V758219-000403G145702F, 03G145702K
GarrettGTB1549V761433-0002A6640900780
GarrettGTB1549V761433-0003A6640900880
GarrettGT1749V761437-0003--
GarrettGT1749V761437-0005--
GarrettGT1749V761437-0006--
GarrettGT1749V768329-0001--
GarrettGT1749V768331-0001038253019C, 03G253014R, 03G253016L
GarrettGT1749V768331-0002038253019C, 03G253014R, 03G253016L

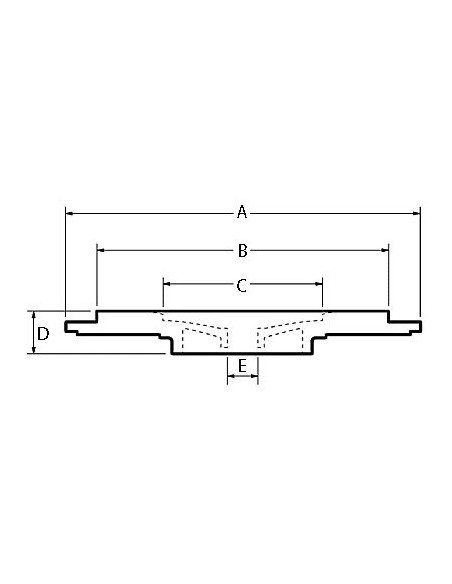

BP-G005 - Part Properties

Trim (Back plate trim): Superback

A (Size A): 99.0

B (Size B): 90.0

C (Size C): 50.0

D (Size D): 12.0

E (Size E): 10.0

Model (Model): GT15-25

028145702E, 454183-0001, 028145702E, 454183-0002, 028145702E, 454183-0003, 028145702E, 454183-0004, 028145702E, 454183-0005, 454195-0001, 24442214, 454216-0001, 860027, 860046, 90570506, 24442214, 454216-0002, 860027, 860046, 90570506, 24442214, 454216-0003, 860027, 860046, 90570506, 454219-0001, 454219-0002, 454219-0003, 454219-0004, 454229-0001, 454229-0002, 028145702H, 454231-0001, 028145702R, 038145702L, 454231-0002, 028145702H, 454231-0003, 028145702H, 454231-0004, 028145702H, 028145702HV225, 454231-0005, 028145702R, 028145702RV225, 038145702L, 454231-0006, 028145702R, 028145702RV500, 038145702L, 454231-0008, 028145702R, 028145702RV550, 038145702L, 454231-0009, 038145702L, 454231-0010, 028145702H, 028145702HV500, 454231-0012, 028145702R, 038145702L, 454231-0013, 038253019, 038253019A, 454232-0001, 038253019D, 454232-0002, 038253019, 038253019A, 03G253016K, 454232-0003, 038253019, 038253019A, 454232-0004, 038253019, 038253019A, 038253019AV200, 454232-0005, 038253019D, 454232-0006, 038253019D, 038253019DV500, 454232-0011, 038253019DV500, 454232-0014, 11652247297, 11652248901, 11652248905, 2247297F, 700447-0001, 11652247297, 11652248901, 11652248905, 2247297G, 700447-0003, 2248901G, 2248905G, 700447-0004, 11652247297, 11652248901, 11652248905, 2247297H, 700447-0005, 11652247297, 11652248901, 11652248905, 2247905H, 700447-0006, 11652247297, 11652248901, 11652248905, 2247901H, 700447-0007, 701470-0001, 701470-0002, 701470-0003, 701470-0004, 701854-0002, 701854-0003, 701854-0004, 028145702P, 1094742, 701855-0001, 95VW9G438BA, 028145702S, 1094743, 701855-0002, 95VW9G438CA, 028145702P, 028145702PV500, 701855-0005, 028145702S, 028145702SV500, 701855-0006, 028145702P, 028145702PV500, 701855-0007, 028145702S, 028145702SV500, 701855-0008, 2249865B, 703672-0001, 703672-0002, 77854099, 2249865E, 703672-0003, 703672-0004, 77854099C, 703673-0001, 703673-0002, 703894-0001, 09202690, 703894-0002, 24442215, 703894-0003, 704505-0001, 705097-0001, 705097-0002, 705204-0001, 705204-0002, 705650-0001, 708366-0001, 7781450B, LR006108, STC4546, 708366-0002, 708366-0003, 708366-0004, 708366-0006, 708366-0007, 708366-0008, 712077-0001, 712078-0001, 712078-0002, 038253019L, 03G253016P, 712968-0001, 038253019L, 03G253016P, 712968-0002, 038253019L, 038253019LV225, 03G253016P, 712968-0003, 038253019L, 038253019LV500, 03G253016P, 712968-0004, 038253019L, 038253019LV500, 03G253016P, 712968-0005, 038253019L, 03G253016P, 712968-0006, 038253019L, 03G253016P, 712968-0007, 038253019C, 03G253016L, 713672-0001, 038253019C, 038253019CV500, 03G253016L, 713672-0002, 038253019C, 038253019CV225, 03G253016N, 713672-0003, 038253019C, 038253019CV500, 03G253016L, 713672-0004, 038253019C, 038253019CV500, 03G253016L, 03G253016N, 713672-0005, 038253019C, 03G253016L, 03G253016N, 713672-0006, 038253019N, 038253019NV225, 03G253014E, 713673-0002, 038253019N, 038253019NV225, 03G253014E, 713673-0003, 038253019N, 038253019NV500, 03G253014E, 1135819, 1556571, 6M219G438AA, 713673-0004, YM219G438BA, 038253019NV500, 1135819, 6M219G438AA, 713673-0005, 038253019N, 03G253014E, 1556571, 713673-0006, 038253019N, 03G253014E, 1135819, 1556571, 6M219G438AA, 713673-0007, YM219G438BA, 714486-0001, 7786799B, 714486-0002, 7786801B, 714486-0005, 7786799C, 714486-0006, 7786801C, 714486-0008, 7786801C, 715294-0001, 715294-0002, 715294-0003, 038253016D, 038253016G, 038253019G, 03G253016R, 716213-0001, 716215-0001, 716216-0001, 716419-0002, 038253016E, 038253016F, 03G253016Q, 716860-0001, 038253016E, 038253016F, 03G253016Q, 716860-0002, 038253016E, 038253016F, 03G253016Q, 716860-0003, 11657787628, 11657793093, 11657794144, 717478-0001, 7787626F, 11657787628, 11657793093, 11657794144, 717478-0002, 7787626F, 11657787628, 11657793093, 11657794144, 717478-0003, 7787626F, 11657787628, 11657793093, 11657794144, 717478-0004, 7787626G, 11657787628, 11657793093, 11657794144, 717478-0005, 7787627G, 717478-0006, 7787628G, 717625-0001, 24445062, 717626-0001, 717626-0004, 860086, 24443096, 717628-0001, 038145702E, 038145702G, 038145702J, 038145702N, 717858-0001, 038145702E, 038145702EV110, 038145702G, 038145702J, 038145702N, 717858-0002, 038145702E, 038145702G, 038145702J, 038145702N, 717858-0003, 038145702E, 038145702G, 038145702GV105, 038145702J, 038145702N, 717858-0004, 038145702E, 038145702G, 038145702J, 038145702N, 717858-0005, 038145702E, 038145702G, 038145702GV505, 038145702J, 038145702N, 717858-0006, 038145702E, 038145702G, 038145702GV550, 038145702J, 038145702N, 717858-0007, 038253016E, 038253016F, 03G253016Q, 720855-0001, 038253016E, 038253016F, 038253016FV115, 03G253016Q, 720855-0003, 038253016E, 038253016F, 038253016FV500, 03G253016Q, 720855-0004, 038253016E, 038253016F, 038253016FV510, 03G253016Q, 720855-0005, 038253016E, 038253016F, 03G253016Q, 720855-0006, 03G253016Q, 720855-0007, 038253016D, 038253016G, 038253019G, 03G253016R, 721021-0001, 038253016D, 038253016G, 038253019G, 03G253016R, 721021-0003, 038253016D, 038253016G, 038253016GV500, 038253019G, 03G253016R, 721021-0004, 038253016D, 038253016G, 038253016GV510, 038253019G, 03G253016R, 721021-0005, 038253016D, 038253016G, 038253019G, 03G253016R, 721021-0006, 18900PLZD00, 721875-0001, 8972873794, 18900PLZD00, 721875-0005, 8972873792, 11657789077, 722010-0003, 77890582A, 7789069E, 7789076F, 11657789077, 722010-0004, 77890582A, 7789069E, 7789076F, 11657789077, 722010-0008, 77890582A, 7789069E, 7789076F, 11657789076, 722011-0003, 7789070E, 7789077F, 7789583A, 11657789076, 722011-0004, 7789070E, 7789077F, 7789583A, 11657789076, 722011-0007, 7789070E, 7789077F, 7789583A, 038253016H, 722730-0001, 038253016H, 038253016HV500, 722730-0003, 038253016H, 038253016HV500, 722730-0005, 03G253010J, 03G253014H, 03G253019A, 724930-0002, 03G253010J, 03G253014H, 03G253019A, 724930-0004, 03G253010J, 03G253014H, 03G253019A, 03G253019AV550, 724930-0006, 070145701K, 070145701KV301, 729325-0002, 070145701K, 070145701KV302, 729325-0003, 070145701K, 070145701KV302, 729325-0004, 11657790994, 731877-0004, 7790992H, 731877-0007, 7790994H, 731877-0009, 7790994I, 733701-0001, 733701-0002, 733701-0003, 733701-0004, 740911-0001, 7790221C, 740911-0003, 7790223C, 740911-0006, 7790223D03, 740911-0007, 7790223D03, 741785-0004, 7792413, 741785-0007, 7792413, 741785-0010, 7792412F, 741785-0013, 7792412, 741785-0014, 7792413, 741785-0016, 7792413, 742614-0001, 742614-0002, 742614-0003, 742614-0004, 742785-0004, 742785-0007, 742785-0010, 742785-0013, 11657787628, 11657792413, 11657793093, 11657794022, 11657794144, 750431-0004, 7794140C, 11657787628, 11657792413, 11657793093, 11657794022, 11657794144, 750431-0007, 7794140D, 11657787628, 11657792413, 11657793093, 11657794022, 11657794144, 750431-0010, 7794140000, 750431-0012, 7794144000, 750431-0013, 7794144000, 750718-0001, 750720-0003, 753556-0002, 9654919580, 756047-0002, 9658673480, 0375K8, 756047-0004, 9662301280, 0375K8, 756047-0005, 9682778680, 0375K8, 756047-0006, 9682778680, 03G253014J, 756062-0002, MN980201, 2823127400, 757886-0003, 2823127450, 757886-0004, 2823127460, 757886-0005, 2823127860, 757886-0006, 2823127480, 757886-0007, 2823127470, 757886-0008, 03G145702F, 758219-0002, 03G145702F, 03G145702K, 758219-0003, 03G145702F, 03G145702K, 758219-0004, 761433-0002, A6640900780, 761433-0003, A6640900880, 761437-0003, 761437-0005, 761437-0006, 768329-0001, 038253019C, 03G253014R, 03G253016L, 768331-0001, 038253019C, 03G253014R, 03G253016L, 768331-0002
