Back plate BP-G007
Back plate BP-G007

Back plate BP-G007

BP-G007
New
In Stock (19 Items)
€8.71
Tax included

701335-0003, BP-G007

Back plate BP-G007 for turbos 454135-0001, 454135-0002, 454135-0003, 454135-0005, 454135-0006, 454135-0008, 454135-0009, 454135-0010, 704412-0001, 709835-0001.

See below for more info.



BP-G007 - Back plate

Brand: Vortex

Vortex Reference: BP-G007

BP-G007 - Alternative numbers

GHO (Garrett original part number): 701335-0003

BP-G007 - Compatibility table

Back plate BP-G007 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2052V454135-0001059145701C, 059145701G, 059145702D
GarrettGT2052V454135-0002059145701C, 059145701G, 059145702D
GarrettGT2052V454135-0003059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGT2052V454135-0005059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGT2052V454135-0006059145701C, 059145701G, 059145702D
GarrettGT2052V454135-0008059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGT2052V454135-0009059145701C, 059145701G, 059145702D
GarrettGTA2052V454135-0010059145701D, 059145701E, 059145701F, 059145701K, 059145701S
GarrettGT1852V704412-0001--
GarrettGT1852V709835-0001A6110960799
GarrettGT1852V709835-0002A6110960799
GarrettGT1852V709836-00016110960899, 6110961599, 6110961699, A6110960899
GarrettGT1852V709836-00036110960899, 6110961599, 6110961699, A6110960899
GarrettGT1852V709836-00046110960899, 6110961599, 6110961699, A6110960899
GarrettGT1852V709836-00056110960899, 6110961599, 6110961699, A6110960899
GarrettGT2052V710415-000111657781434, 7780199D
GarrettGT2052V710415-000377814359
GarrettGTA2052V710415-000777814359
GarrettGT1852V711006-0001A6110960999
GarrettGT1852V711006-0003A6110960999
GarrettGTA1852V711006-0004A6110960999
GarrettGT2052720168-001112755106
GarrettGT2052S723167-00018602480, 8603296, 8627752, 8653146
GarrettGT2052S723167-00028602480, 8603296, 8653146
GarrettGT2052S723167-00038602480, 8603296, 8653122
GarrettGT2052S723167-00048602480, 8603296, 8689592
GarrettGT1852V726698-0001A6110961599
GarrettGT1852V726698-0002A6110961599
GarrettGT1852V726698-0003A6110961599
GarrettGTA1852VK727461-00026460900180, 6460960399, A6460960099
GarrettGT1852V727461-00036460900180, 6460960399, A6460960099
GarrettGT1852V727461-00046460900180, 6460960399, A6460960499
GarrettGT1852V727461-00056460900180, 6460960399, A6460900080
GarrettGT1852V727461-00066460900180, 6460960399, A6460900080
GarrettGT2052GLS731320-0001PMF00009, PMF000090
GarrettGT1852V742693-0001A6460960399
GarrettGT1852V742693-0002A6460900180
GarrettGT1852V742693-0003A6460900180
GarrettGT1852V742693-0004A6460900180
GarrettGT2052GLS765472-0001PMF000090
GarrettGT2052GLS765472-0002PMF000090

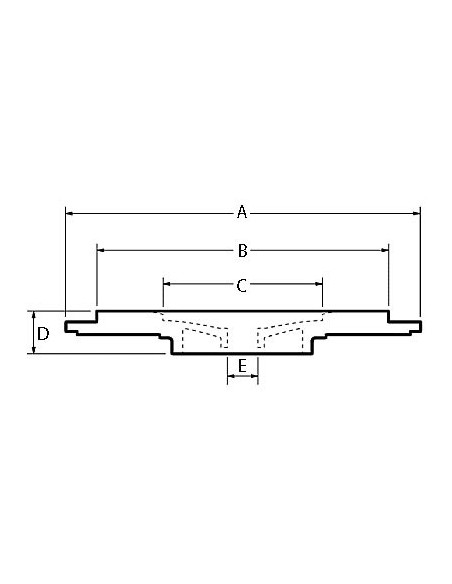

BP-G007 - Part Properties

Trim (Back plate trim): Superback

A (Size A): 124.0

B (Size B): 100.0

C (Size C): 53.0

D (Size D): 12.0

E (Size E): 10.0

Model (Model): GT15-25

Data updated: 2022-12-27 12:09:19
