Back plate BP-G053
Back plate BP-G053

Back plate BP-G053

BP-G053
New
In Stock (7 Items)
€7.26
Tax included

701335-0005, BP-G053

Back plate BP-G053 for turbos 454126-0001, 454126-0002, 454191-0003, 454191-0004, 454191-0005, 454191-0006, 454191-0007, 454191-0008, 454191-0009, 454191-0010.



BP-G053 - Back plate

Brand: Vortex

Vortex Reference: BP-G053

BP-G053 - Alternative numbers

GHO (Garrett original part number): 701335-0005

BP-G053 - Compatibility table

Back plate BP-G053 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTA2056S454126-0001--
GarrettGTA2056S454126-0002--
GarrettGT2556V454191-000311652248906, 11652248907, 2247691F
GarrettGT2556V454191-000422489079
GarrettGT2556V454191-000522489069
GarrettGT2556V454191-000611652248906, 11652248907, 2247691G
GarrettGT2556V454191-00072248906G
GarrettGT2556V454191-000811652248906, 11652248907, 2247691H
GarrettGT2556V454191-00092248906H
GarrettGT2556V454191-00102248906H
GarrettGT2556V454191-001111652248906, 11652248907, 2247691H
GarrettGT2556V454191-00122248906H
GarrettGT2556V454191-00132248907H
GarrettGT2256V707114-0001500379251
GarrettGTA2256V709837-0001A6120960299
GarrettGTA2256V709837-0002A6120960299
GarrettGTA2256V709837-0003A6120960299
GarrettGTA2256V709838-00016120960399
GarrettGTA2256V709838-00036120960399
GarrettGTA2256V709838-00046120960399
GarrettGTA2256V709838-00056120960399
GarrettGTA2256V709838-00066120960399
GarrettGTA2256V721020-0001--
GarrettGTA2056V757246-0001--

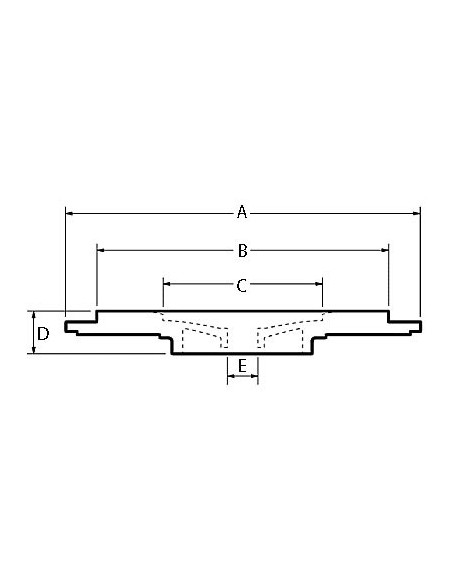

BP-G053 - Part Properties

Trim (Back plate trim): Superback

A (Size A): 129.0

B (Size B): 100.0

C (Size C): 57.0

D (Size D): 12.0

E (Size E): 10.0

Model (Model): GT15-25

454126-0001, 454126-0002, 11652248906, 11652248907, 2247691F, 454191-0003, 22489079, 454191-0004, 22489069, 454191-0005, 11652248906, 11652248907, 2247691G, 454191-0006, 2248906G, 454191-0007, 11652248906, 11652248907, 2247691H, 454191-0008, 2248906H, 454191-0009, 2248906H, 454191-0010, 11652248906, 11652248907, 2247691H, 454191-0011, 2248906H, 454191-0012, 2248907H, 454191-0013, 500379251, 707114-0001, 709837-0001, A6120960299, 709837-0002, A6120960299, 709837-0003, A6120960299, 6120960399, 709838-0001, 6120960399, 709838-0003, 6120960399, 709838-0004, 6120960399, 709838-0005, 6120960399, 709838-0006, 721020-0001, 757246-0001

Data updated: 2024-09-12 11:31:45
