Back plate BP-G055
Back plate BP-G055

Back plate BP-G055

BP-G055
New
Last items in stock (3 Items)
€7.26
Tax included

703682-0057, BP-G055

Back plate BP-G055 for turbos 711736-0001, 711736-0002, 711736-0003, 711736-0010, 711736-0012, 711736-0016, 711736-0023, 711736-0024, 711736-0025, 711736-0026.

See below for more info.



BP-G055 - Back plate

Brand: Vortex

Vortex Reference: BP-G055

BP-G055 - Alternative numbers

GHO (Garrett original part number): 703682-0057

BP-G055 - Compatibility table

Back plate BP-G055 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT25711736-0001--
GarrettGT2556S711736-0002--
GarrettGT25711736-0003--
GarrettGT25711736-0010--
GarrettGT30711736-0012--
GarrettGT2556S711736-0016--
GarrettGT25711736-0023--
GarrettGT25711736-0024--
GarrettGT2556S711736-0025--
GarrettGT25711736-0026--
GarrettGT25711736-0027--
GarrettGT25711736-0028--
GarrettGT25711736-0029--
GarrettGT2556V(S2)721204-0001--
GarrettGTA2056V751243-0002--
GarrettGT2256S762931-000132006047
GarrettGT2256S762931-0002320/06081
GarrettGT2256S762931-0003320/06079
GarrettGT2256S762931-0004320/06083
GarrettGT2256S762931-0005320/06084
GarrettGT2256S762931-0006320/06094
GarrettGT2256S762931-0009320/06160
GarrettGT2256S762931-0010320/06161, 32006161
GarrettGT2256S762931-0011320/06159
GarrettGT2256S762931-0015320/06157, 32006157
GarrettGTA2056V769708-0001--
GarrettGTA2056V769708-0002--
GarrettGTA2056V769708-0003--
GarrettGT2556S785827-0001--
GarrettGT2556S785827-0003--
GarrettGT2556S785827-0005--
GarrettGT2556S785827-0006--
GarrettGT2556S785827-0007--
GarrettGT2556S785827-0008--
GarrettGT2556S785827-0009--
GarrettGT2556S785827-00102674A817
GarrettGT2556S785827-0011--
GarrettGT2556S785827-0012--
GarrettGT2556S785827-0014--
GarrettGT2556S785827-0015--
GarrettGT2556S785827-0017--
GarrettGT2556S785827-0021--
GarrettGT2556S785827-0022--
GarrettGT2556S785827-0023--
GarrettGT2556S785827-0024--
GarrettGT2556S785827-00252674A827
GarrettGT2556S785827-0026--
GarrettGT2556S785827-0027--

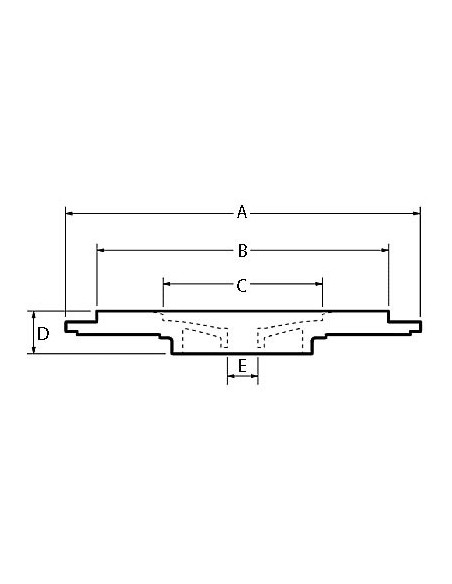

BP-G055 - Part Properties

Trim (Back plate trim): Deep Superback

A (Size A): 129.1

B (Size B): 112.0

C (Size C): 57.5

D (Size D): 13.7

E (Size E): 10.0

Model (Model): GT15-25

Data updated: 2022-12-27 12:21:27
