Back plate BP-M002
Back plate BP-M002

Back plate BP-M002

BP-M002
New
In Stock (60 Items)
€5.45
Tax included

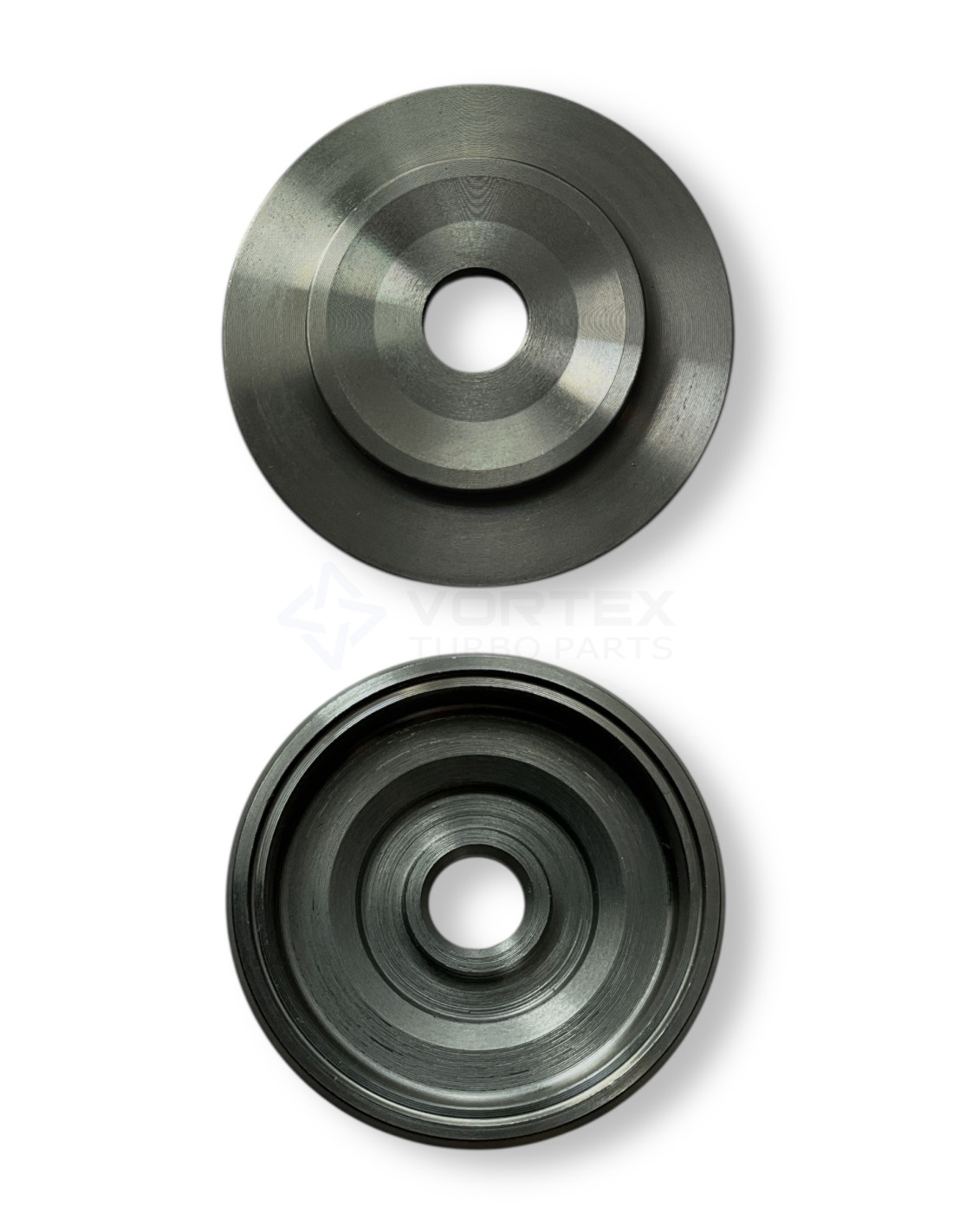

Back plate BP-M002 for turbos 49130-01900, 49130-01910, 49130-01920, 49130-01930, 49130-01940, 49130-02500, 49131-04300, 49131-05000, 49131-05001, 49131-05010.



BP-M002 - Back plate

Brand: Vortex

Vortex Reference: BP-M002

BP-M002 - Compatibility table

Back plate BP-M002 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD02549130-01900--
MitsubishiTD02549130-01910--
MitsubishiTD02549130-01920--
MitsubishiTD02549130-01930--
MitsubishiTD02549130-01940--
MitsubishiTD02L49130-02500--
MitsubishiTD03-07T49131-04300--
MitsubishiTD0349131-05000--
MitsubishiTD0349131-05001--
MitsubishiTD0349131-05010--
MitsubishiTD0349131-05011--
MitsubishiTD03L-08G-4.849131-05050--
MitsubishiTD03L-08G-4.849131-05060--
MitsubishiTD03L-08G-4.849131-05061--
MitsubishiTD0349131-05100--
MitsubishiTD0349131-05101--
MitsubishiTD0349131-05110--
MitsubishiTD0349131-05111--
MitsubishiTD0349131-05150--
MitsubishiTD0349131-05151--
MitsubishiTD0349131-05160--
MitsubishiTD0349131-05161--
MitsubishiTD0349131-05200--
MitsubishiTD0349131-052100375K7
MitsubishiTD0349131-05211--
MitsubishiTD0349131-052120375K7
MitsubishiTD0349131-05252--
MitsubishiTD0349131-05300--
MitsubishiTD0349131-05310--
MitsubishiTD0349131-05312--
MitsubishiTD0349131-05313--
MitsubishiTD0349131-05353--
MitsubishiTD0349131-05400--
MitsubishiTD0349131-05401--
MitsubishiTD0349131-05402--
MitsubishiTD0349131-05403--
MitsubishiTD0349131-05452--
MitsubishiTD03L4-07T-VG49131-06003860070, 860128, 860147, 93169104, 97300092, 98102364
MitsubishiTD03L4-07T-VG49131-06004860070, 860128, 860147, 93169104, 97300092, 98102364
MitsubishiTD03L4-07T-VG49131-06005860070, 860128, 860147, 93169104, 97300092, 98102364
MitsubishiTD03L4-07T-VG49131-06006860070, 860128, 860147, 93169104, 97300092, 98102364
MitsubishiTD03L4-07T-VG49131-06007860070, 860128, 860147, 93169104, 97300092, 98102364
MitsubishiTD0349131-06300--
MitsubishiTD0349131-06320--
MitsubishiTD0349131-06340--
MitsubishiTD0349131-06701--
MitsubishiTD0349131-06702--
MitsubishiTD0349131-06703--
MitsubishiTD0349131-06704--
MitsubishiTD0349131-06705--
MitsubishiTD0349131-06706--
MitsubishiTD0349131-06800--
MitsubishiTD0349131-06801--
MitsubishiTD0349131-06900--
MitsubishiTD0349131-07001--
MitsubishiTD0349131-07005--
MitsubishiTD0349131-07006--
MitsubishiTD0349131-07007--
MitsubishiTD0349131-07008--
MitsubishiTD0349131-07009--
MitsubishiTD0349131-07011--
MitsubishiTD0349131-07015--
MitsubishiTD0349131-07016--
MitsubishiTD0349131-07017--
MitsubishiTD0349131-07018--
MitsubishiTD0349131-07019--
MitsubishiTD0349131-07025--
MitsubishiTD0349131-07026--
MitsubishiTD0349131-07027--
MitsubishiTD0349131-07028--
MitsubishiTD0349131-07029--
MitsubishiTD0349131-07030--
MitsubishiTD0349131-07031--
MitsubishiTD0349131-07040--
MitsubishiTD0349131-07041--
MitsubishiTD0349131-07050--
MitsubishiTD0349131-07051--
MitsubishiTD0349131-07065--
MitsubishiTD0349131-07066--
MitsubishiTD0349131-07067--
MitsubishiTD0349131-07068--
MitsubishiTD0349131-07069--
MitsubishiTD0349131-07105--
MitsubishiTD0349131-07160--
MitsubishiTD0349131-07161--
MitsubishiTD03L4-10TK3-4.949131-07171--
MitsubishiTD0349131-07205--
MitsubishiTD0349131-07206--
MitsubishiTD0349131-07207--
MitsubishiTD0349131-07208--
MitsubishiTD0349131-07209--
MitsubishiTD0349131-07210--
MitsubishiTD0349131-07235--
MitsubishiTD0349131-07236--
MitsubishiTD0349131-07237--
MitsubishiTD0349131-07238--
MitsubishiTD0349131-07239--
MitsubishiTD0349131-07255--
MitsubishiTD0349131-07256--
MitsubishiTD0349131-07257--
MitsubishiTD0349131-07258--
MitsubishiTD0349131-07259--
MitsubishiTD0349131-07265--
MitsubishiTD0349131-07266--
MitsubishiTD0349131-07267--
MitsubishiTD0349131-07268--
MitsubishiTD0349131-07269--
MitsubishiTD0349131-07270--
MitsubishiTD0349131-07271--
MitsubishiTD0349131-07272--
MitsubishiTD0349131-07273--
MitsubishiTD0349131-07294--
MitsubishiTD0349131-07305--
MitsubishiTD0349131-07306--
MitsubishiTD0349131-07307--
MitsubishiTD0349131-07308--
MitsubishiTD0349131-07309--
MitsubishiTD0349131-07329--
MitsubishiTD0349131-07335--
MitsubishiTD0349131-07336--
MitsubishiTD0349131-07337--
MitsubishiTD0349131-07338--
MitsubishiTD0349131-07339--
MitsubishiTD0349131-07356--
MitsubishiTD0349131-07357--
MitsubishiTD0349131-07358--
MitsubishiTD0349131-07359--
MitsubishiTD0349131-07360--
MitsubishiTD02549172-03000--
MitsubishiTD02549172-03100--
MitsubishiTD02549173-02401--
MitsubishiTD02549173-02410--
MitsubishiTD02549173-02412--
MitsubishiTD02549173-02800--
MitsubishiTD025L49173-06100--
MitsubishiTD02549173-07721--
Mitsubishi49180-01230--
MitsubishiTD02549180-01240--
MitsubishiTD02549180-01270--
Mitsubishi49180-01274--
MitsubishiTD025R49180-01330--
MitsubishiTD025R49180-01360--
MitsubishiTD025R49180-01365--
MitsubishiTD025R49180-01370--
MitsubishiTD02549180-01400--
MitsubishiTD02549180-01405--
MitsubishiTD02549180-01406--
MitsubishiTD02549180-01420--
MitsubishiTD02549180-01424--
MitsubishiTD02549180-01425--
MitsubishiTD04L4bR-03*07WDT-2.749180-0143004E145722G
MitsubishiTD04L4bR-03*07WDT-2.749180-01431--
MitsubishiTD025L49180-02500--
MitsubishiTD025L49180-04010--
MitsubishiTD025L49180-04011--
MitsubishiTD025L49180-04020--
MitsubishiTD025L49180-04030--
MitsubishiTD025L49180-04051--
MitsubishiTD025L49180-04052--
MitsubishiTD025L49180-0405312679375
MitsubishiTD025L49180-04054--
MitsubishiTD025L49180-04055--
MitsubishiTD025L49180-04056--
MitsubishiTD025L49180-04061--
MitsubishiTD025L49180-04062--
MitsubishiTD025L49180-04063--
MitsubishiTD025L49180-04064--
MitsubishiTD025L49180-04065--
MitsubishiTD025L49180-04066--
MitsubishiTD025L49180-04067--
MitsubishiTD025L49180-0407012668297
MitsubishiTD025L49180-04071--
MitsubishiTD025L49180-04072--
MitsubishiTD025L49180-04073--
MitsubishiTD025L49180-04074--
MitsubishiTD025L49180-04075--
MitsubishiTD025L49180-04076--
MitsubishiTD025L49180-04080--
MitsubishiTD025L49180-04081--
MitsubishiTD025L49180-04082--
MitsubishiTD025L49180-04083--
MitsubishiTD025L49180-04084--
MitsubishiTD025L49180-04085--
MitsubishiTD025L49180-04090--
MitsubishiTD025L49180-04091--
MitsubishiTD025L49180-04092--
MitsubishiTD025L49180-04093--
MitsubishiTD025L49180-04094--
MitsubishiTD025L49180-04095--
MitsubishiTD025L49180-04096--
MitsubishiTD025L49180-04100--
MitsubishiTD025L49180-04150--
MitsubishiTD025L49180-04155--
MitsubishiTD025L49180-04160--
MitsubishiTD025L49180-04200--
MitsubishiTD025L49180-04220--
MitsubishiTD025L49180-04230--
MitsubishiTD02549373-02000--
MitsubishiTD02549373-02001--
MitsubishiTD02549373-020020375Q9, 0375R0, 9673283680, AV6Q-6K682-BB, AV6Q6K682BB
MitsubishiTD02549373-02003--
MitsubishiTD0249373-02004--
MitsubishiTD02549373-02012--
MitsubishiTD02549373-02013--
MitsubishiTD02549373-02022--
MitsubishiTD02549373-02023--
MitsubishiTD02549373-03000--
MitsubishiTD02549373-03001--
MitsubishiTD02549373-03002--
MitsubishiTD02549373-03003--
MitsubishiTD02549373-03004--
MitsubishiTD02549373-03005--
MitsubishiTD02549373-03006--
MitsubishiTD02549373-03010--
MitsubishiTD02549373-03011--
MitsubishiTD02549373-03012--
MitsubishiTD02H2-04TVT-2.349373-04000144108035R
MitsubishiTD02H2-04TVT-2.349373-04001144108035R
MitsubishiTD02H2-04TVT-2.349373-04002144108035R
MitsubishiTD02H2-04TVT-2.349373-04003144108035R
MitsubishiTD02549373-07000--
MitsubishiTD02549373-07010--
MitsubishiTD02549373-07011--
MitsubishiTD02549373-07012--
MitsubishiTD02549373-07013--
MitsubishiTD02549373-07014--
MitsubishiTD02549373-07015--
MitsubishiTD02549373-07100--
MitsubishiTD02549373-07101--
MitsubishiTD02549373-07102--
MitsubishiTD02549373-07103--

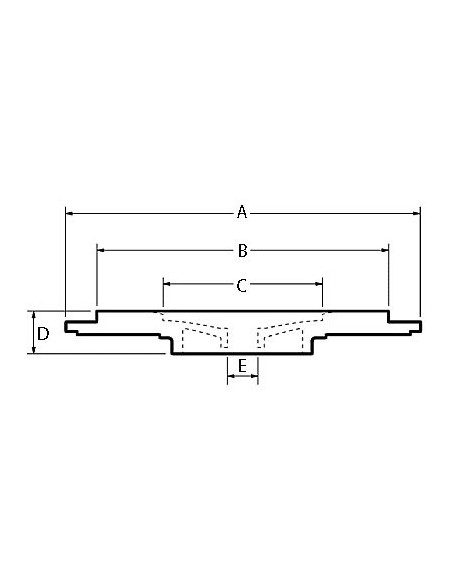

BP-M002 - Part Properties

Trim (Back plate trim): Superback

A (Size A): 39.9

D (Size D): 8.0

E (Size E): 10

Model (Model): T02/03

49130-01900, 49130-01910, 49130-01920, 49130-01930, 49130-01940, 49130-02500, 49131-04300, 49131-05000, 49131-05001, 49131-05010, 49131-05011, 49131-05050, 49131-05060, 49131-05061, 49131-05100, 49131-05101, 49131-05110, 49131-05111, 49131-05150, 49131-05151, 49131-05160, 49131-05161, 49131-05200, 0375K7, 49131-05210, 49131-05211, 0375K7, 49131-05212, 49131-05252, 49131-05300, 49131-05310, 49131-05312, 49131-05313, 49131-05353, 49131-05400, 49131-05401, 49131-05402, 49131-05403, 49131-05452, 49131-06003, 860070, 860128, 860147, 93169104, 97300092, 98102364, 49131-06004, 860070, 860128, 860147, 93169104, 97300092, 98102364, 49131-06005, 860070, 860128, 860147, 93169104, 97300092, 98102364, 49131-06006, 860070, 860128, 860147, 93169104, 97300092, 98102364, 49131-06007, 860070, 860128, 860147, 93169104, 97300092, 98102364, 49131-06300, 49131-06340, 49131-06701, 49131-06702, 49131-06703, 49131-06704, 49131-06705, 49131-06706, 49131-06800, 49131-06801, 49131-06900, 49131-07001, 49131-07005, 49131-07006, 49131-07007, 49131-07008, 49131-07009, 49131-07011, 49131-07015, 49131-07016, 49131-07017, 49131-07018, 49131-07019, 49131-07025, 49131-07026, 49131-07027, 49131-07028, 49131-07029, 49131-07030, 49131-07031, 49131-07040, 49131-07041, 49131-07050, 49131-07051, 49131-07065, 49131-07066, 49131-07067, 49131-07068, 49131-07069, 49131-07105, 49131-07160, 49131-07161, 49131-07171, 49131-07205, 49131-07206, 49131-07207, 49131-07208, 49131-07209, 49131-07210, 49131-07235, 49131-07236, 49131-07237, 49131-07238, 49131-07239, 49131-07255, 49131-07256, 49131-07257, 49131-07258, 49131-07259, 49131-07265, 49131-07266, 49131-07267, 49131-07268, 49131-07269, 49131-07270, 49131-07271, 49131-07272, 49131-07273, 49131-07294, 49131-07305, 49131-07306, 49131-07307, 49131-07308, 49131-07309, 49131-07329, 49131-07335, 49131-07336, 49131-07337, 49131-07338, 49131-07339, 49131-07356, 49131-07357, 49131-07358, 49131-07359, 49131-07360, 49172-03000, 49172-03100, 49173-02401, 49173-02410, 49173-02412, 49173-02800, 49173-06100, 49173-07721, 49180-01240, 49180-01270, 49180-01330, 49180-01360, 49180-01365, 49180-01370, 49180-01400, 49180-01405, 49180-01406, 49180-01420, 49180-01424, 49180-01425, 04E145722G, 49180-01430, 49180-01431, 49180-02500, 49180-04010, 49180-04011, 49180-04020, 49180-04030, 49180-04051, 49180-04052, 12679375, 49180-04053, 49180-04054, 49180-04055, 49180-04056, 49180-04061, 49180-04062, 49180-04063, 49180-04064, 49180-04065, 49180-04066, 49180-04067, 12668297, 49180-04070, 49180-04071, 49180-04072, 49180-04073, 49180-04074, 49180-04075, 49180-04076, 49180-04080, 49180-04081, 49180-04082, 49180-04083, 49180-04084, 49180-04085, 49180-04090, 49180-04091, 49180-04092, 49180-04093, 49180-04094, 49180-04095, 49180-04096, 49180-04100, 49180-04150, 49180-04155, 49180-04160, 49180-04200, 49180-04220, 49180-04230, 49373-02000, 49373-02001, 0375Q9, 0375R0, 49373-02002, 9673283680, AV6Q-6K682-BB, AV6Q6K682BB, 49373-02003, 49373-02004, 49373-02012, 49373-02013, 49373-02022, 49373-02023, 49373-03000, 49373-03001, 49373-03002, 49373-03003, 49373-03004, 49373-03005, 49373-03006, 49373-03010, 49373-03011, 49373-03012, 144108035R, 49373-04000, 144108035R, 49373-04001, 144108035R, 49373-04002, 144108035R, 49373-04003, 49373-07000, 49373-07010, 49373-07011, 49373-07012, 49373-07013, 49373-07014, 49373-07015, 49373-07100, 49373-07101, 49373-07102, 49373-07103
