Back plate BP-G080
BP-G080
New
Please login to see prices and stock

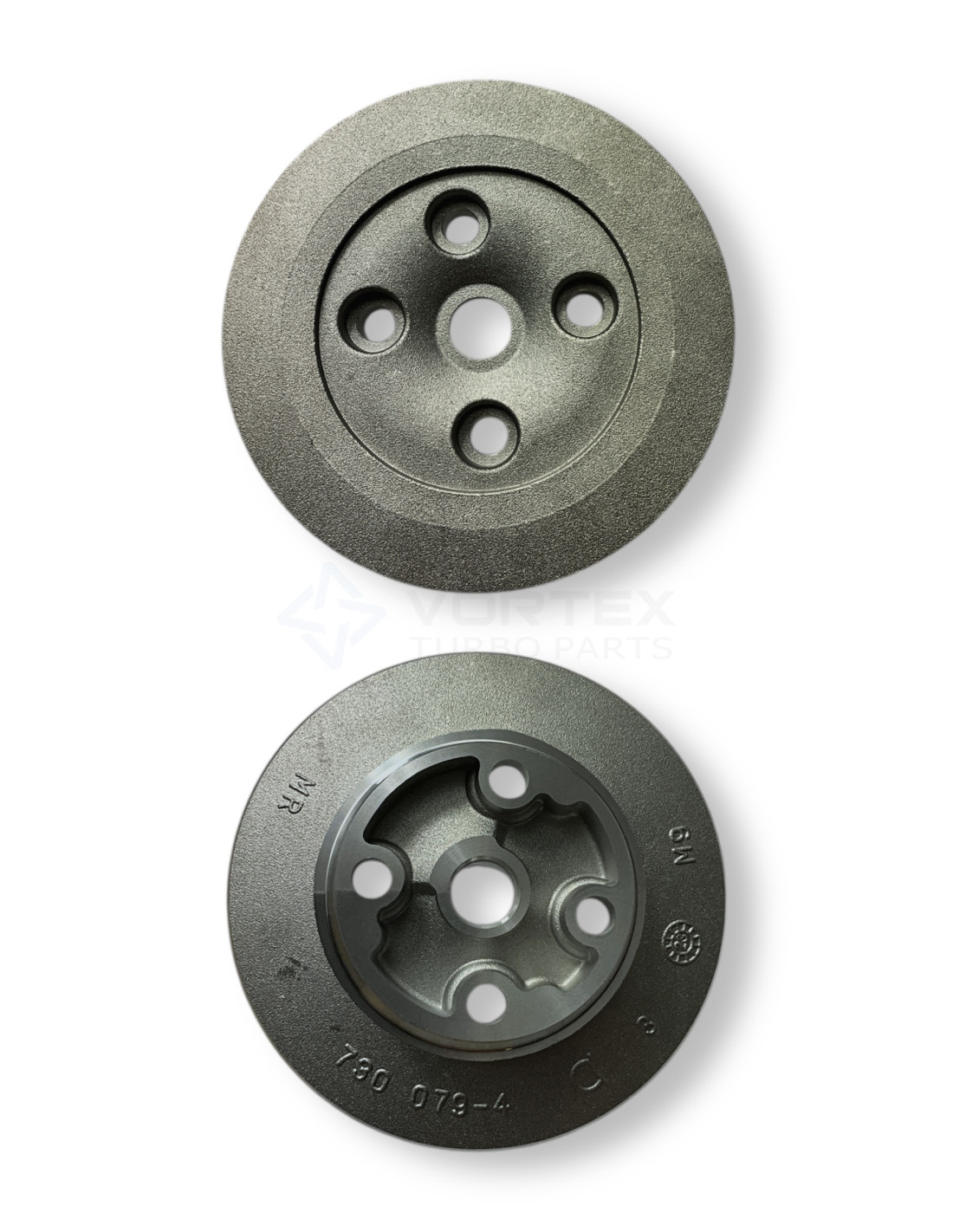

Back plate BP-G080 for turbos 806850-0001, 806850-0003, 806850-0005, 808549-0001, 808549-0002, 808549-0003, 808549-0004, 832637-0003(GT1549S).
BP-G080 - Back plate
Brand: Vortex
Vortex Reference: BP-G080
BP-G080 - Compatibility table
| Back plate BP-G080 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GTB1749LV | 806850-0001 | 5801415508 |
| Garrett | GTB1749LV | 806850-0003 | 5801415508 |
| Garrett | GTB1749V | 806850-0005 | 5801894377 |
| Garrett | GTB1749V | 808549-0001 | -- |
| Garrett | GTB1749V | 808549-0002 | -- |
| Garrett | GTB1749V | 808549-0003 | -- |
| Garrett | GTB1749V | 808549-0004 | -- |
| Garrett | GT1549S | 832637-0003(GT1549S) | -- |

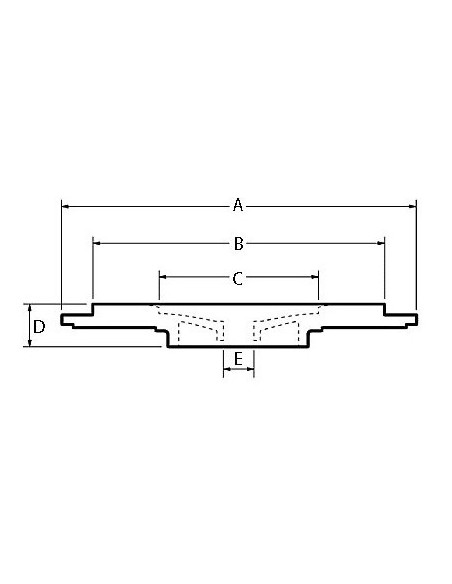

BP-G080 - Part Properties
A (Size A): 79.4
C (Size C): 50.6
D (Size D): 13.0
E (Size E): 10.0
Model (Model): GT15-25
5801415508, 806850-0001, 5801415508, 806850-0003, 5801894377, 806850-0005, 832637-0003
Data updated: 2024-09-11 21:15:49
