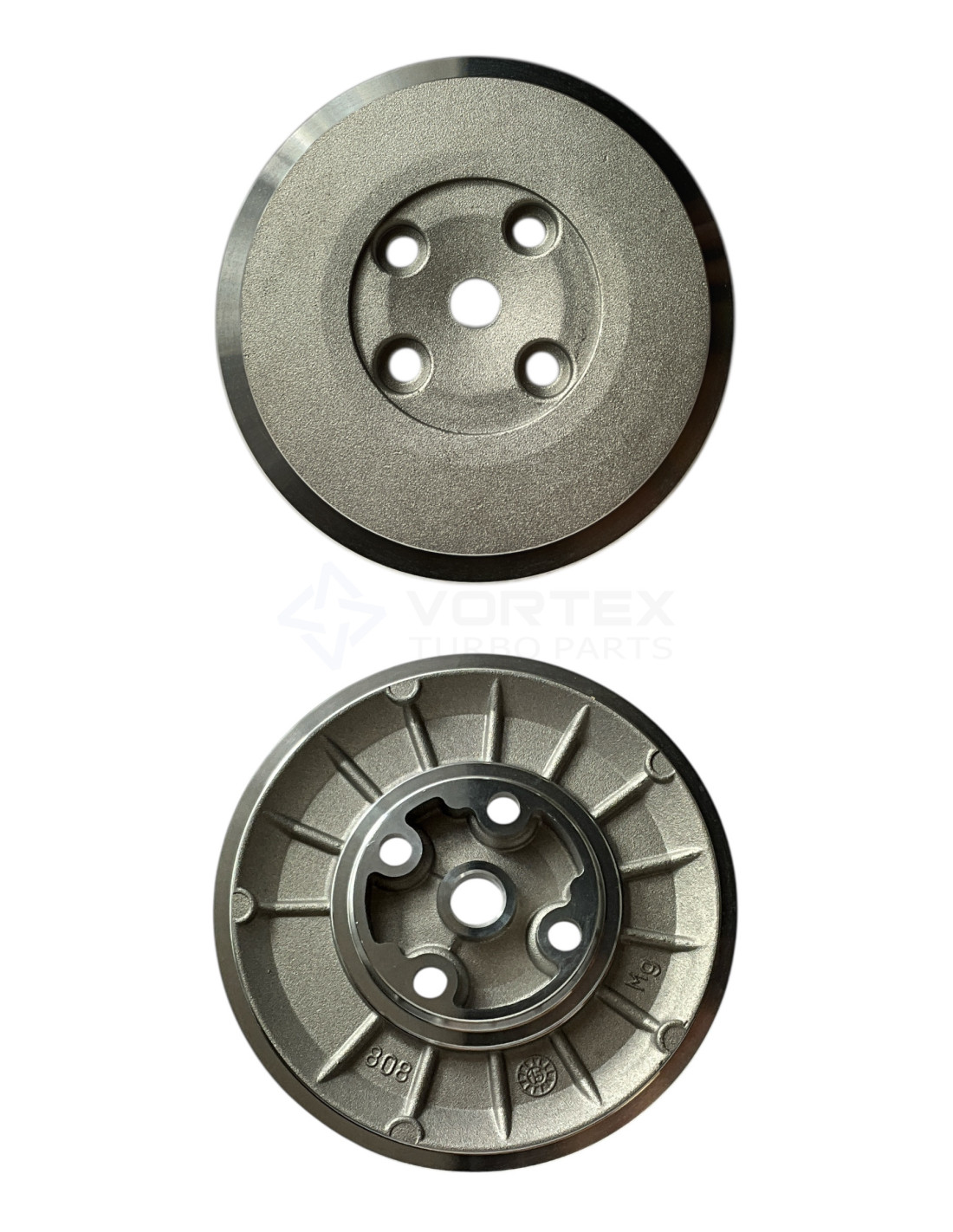

Back plate BP-G010
BP-G010
New
In Stock
(7 Items)
€7.26
Tax included
433254-0005, BP-G010
Back plate BP-G010 for turbos 454006-0002, 454080-0001, 454080-0003, 454080-0005, 454158-0001, 454159-0001, 454159-0002, 454161-0001, 454161-0003, 454161-0004.
BP-G010 - Back plate
Brand: Vortex
Vortex Reference: BP-G010
BP-G010 - Alternative numbers
GHO (Garrett original part number): 433254-0005
BP-G010 - Compatibility table
Back plate BP-G010 - Compatible turbochargers | |||
---|---|---|---|
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
Garrett | GT1544S | 454006-0002 | -- |
Garrett | GT1544S | 454080-0001 | -- |
Garrett | GT1544S | 454080-0003 | -- |
Garrett | GT1544S | 454080-0005 | -- |
Garrett | GT1749V | 454158-0001 | -- |
Garrett | GT1544S | 454159-0001 | 038145701A |
Garrett | GT1544S | 454159-0002 | 038145701A |
Garrett | GT1749V | 454161-0001 | 028145702D |
Garrett | GT1749V | 454161-0003 | 028145702D |
Garrett | GT1749V | 454161-0004 | 028145702D |
Garrett | GT1544S | 454165-0001 | -- |
Garrett | GT1544S | 700830-0001 | 7700107795 |
Garrett | GT1544S | 700999-0001 | -- |
Garrett | GT1544S | 701000-0001 | -- |
Garrett | GT1544H | 701796-0001 | -- |
Garrett | GT1544 | 702339-0001 | -- |
Garrett | GT1544S | 703753-0001 | -- |

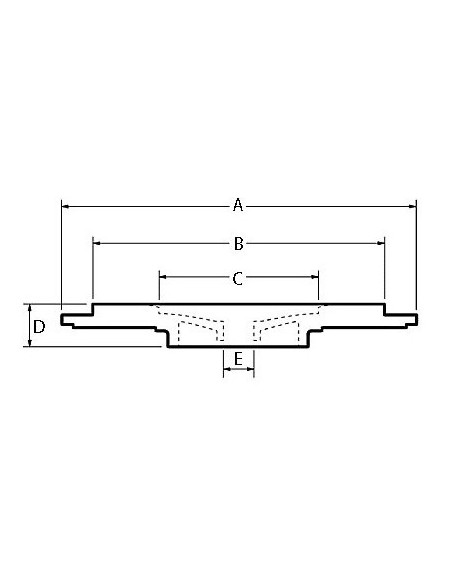

BP-G010 - Part Properties
Trim (Back plate trim): Superback
A (Size A): 95.0
B (Size B): 84.0
C (Size C): 45.0
D (Size D): 12.0
E (Size E): 9.35
Model (Model): GT15-25
454006-0002, 454080-0001, 454080-0003, 454080-0005, 454158-0001, 038145701A, 454159-0001, 038145701A, 454159-0002, 028145702D, 454161-0001, 028145702D, 454161-0003, 028145702D, 454161-0004, 454165-0001, 700830-0001, 7700107795, 700999-0001, 701000-0001, 701796-0001, 702339-0001, 703753-0001
Data updated: 2024-01-23 16:49:41
