Back plate BP-G088
BP-G088
New
Please login to see prices and stock

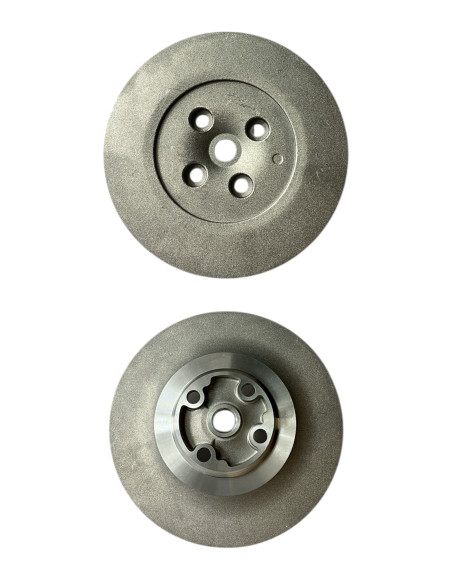

Back plate BP-G088 for turbos 833715-0005, 833715-0006, 833715-0007, 833715-0008, 833718-0005, 833718-0006.
BP-G088 - Back plate
Brand: Vortex
Vortex Reference: BP-G088
BP-G088 - Compatibility table
| Back plate BP-G088 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | DSGT-GTD2056VZK | 833715-0005 | -- |
| Garrett | DSGT-GTD2056VZK | 833715-0006 | -- |
| Garrett | DSGT-GTD2056VZK | 833715-0007 | -- |
| Garrett | DSGT-GTD2056VZK | 833715-0008 | -- |
| Garrett | GTD2060VZK | 833718-0005 | -- |
| Garrett | GTD2060VZK | 833718-0006 | -- |

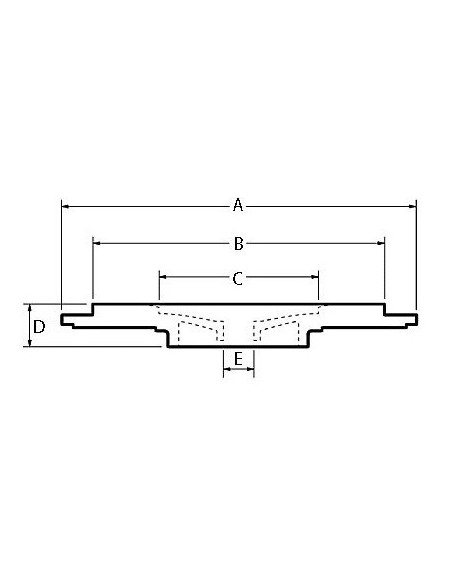

BP-G088 - Part Properties
Trim (Back plate trim): Deep Superback
A (Size A): 105.9
C (Size C): 62.0
D (Size D): 12.5
E (Size E): 10.0
Model (Model): GT15-25
833715-0005, 833715-0006, 833715-0007, 833715-0008, 833718-0005, 833718-0006
Data updated: 2025-01-08 17:40:16
