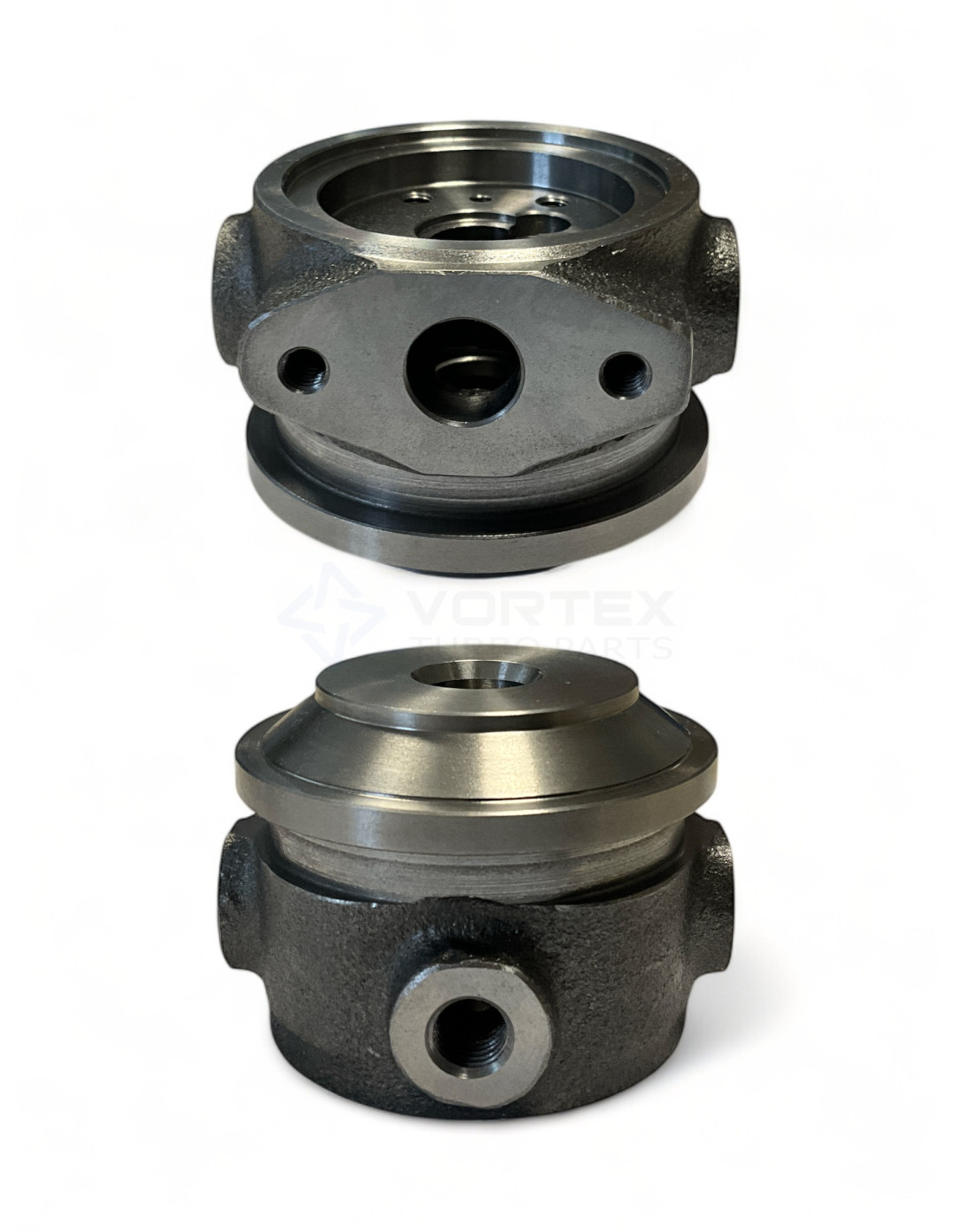

Bearing housing BH-G051
434578-0012, BH-G051
Bearing housing BH-G051 for turbos 466501-0005, 471037-0002, 471189-0002, 700273-0001, 700273-0002, 700917-0001, 702213-0001, 703389-0001, 703389-0002, 708337-0001.
BH-G051 - Bearing housing
Brand: Vortex
Vortex Reference: BH-G051
BH-G051 - Alternative numbers
GHO (Garrett original part number): 434578-0012
BH-G051 - Compatibility table
| Bearing housing BH-G051 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT1749S | 466501-0005 | -- |
| Garrett | GT1749S | 471037-0002 | -- |
| Garrett | GT1749S | 471189-0002 | -- |
| Garrett | GT1749S | 700273-0001 | -- |
| Garrett | GT1749S | 700273-0002 | -- |
| Garrett | GT1749S | 700917-0001 | -- |
| Garrett | GT205 | 702213-0001 | -- |
| Garrett | GT2052S | 703389-0001 | -- |
| Garrett | GT2052S | 703389-0002 | -- |
| Garrett | GT1749S | 708337-0001 | -- |
| Garrett | GT1749S | 708337-0002 | -- |
| Garrett | GT1749S | 710060-0001 | 28200-4A001, 282004A001 |
| Garrett | GT1749S | 710060-0003 | 28200-4A001, 282004A001 |
| Garrett | GT1749S | 715843-0001 | -- |
| Garrett | GT1749S | 715924-0001 | 28200-42610, 2820042610 |
| Garrett | GT1749S | 715924-0002 | 28200-42700, 2820042700 |
| Garrett | GT1749S | 715924-0003 | 28200-42610, 2820042610 |
| Garrett | GT1749S | 715924-0004 | 28200-42700, 2820042700 |
| Garrett | GT1749S | 715924-0005 | 28200-42800, 2820042800 |
| Garrett | GT1749S | 716938-0001 | -- |
| Garrett | GT1752S | 733952-0001 | 28200-4A101, 282004A101 |
| Garrett | GT1752S | 733952-0004 | 28200-4A101, 282004A101 |
BH-G051 - Part Properties
Turbine End Diameter C (Turbine End Diameter C): 68.0
Turbine End Diameter D (Turbine End Diameter D): 60.5
Oil Inlet Diameter E (Oil Inlet Diameter E): M10X1.25
466501-0005, 471037-0002, 471189-0002, 700273-0001, 700273-0002, 700917-0001, 702213-0001, 703389-0001, 703389-0002, 708337-0001, 708337-0002, 28200-4A001, 282004A001, 710060-0001, 28200-4A001, 282004A001, 710060-0003, 715843-0001, 28200-42610, 2820042610, 715924-0001, 28200-42700, 2820042700, 715924-0002, 28200-42610, 2820042610, 715924-0003, 28200-42700, 2820042700, 715924-0004, 28200-42800, 2820042800, 715924-0005, 716938-0001, 28200-4A101, 282004A101, 733952-0001, 28200-4A101, 282004A101, 733952-0004
Data updated: 2025-03-04 20:31:17
