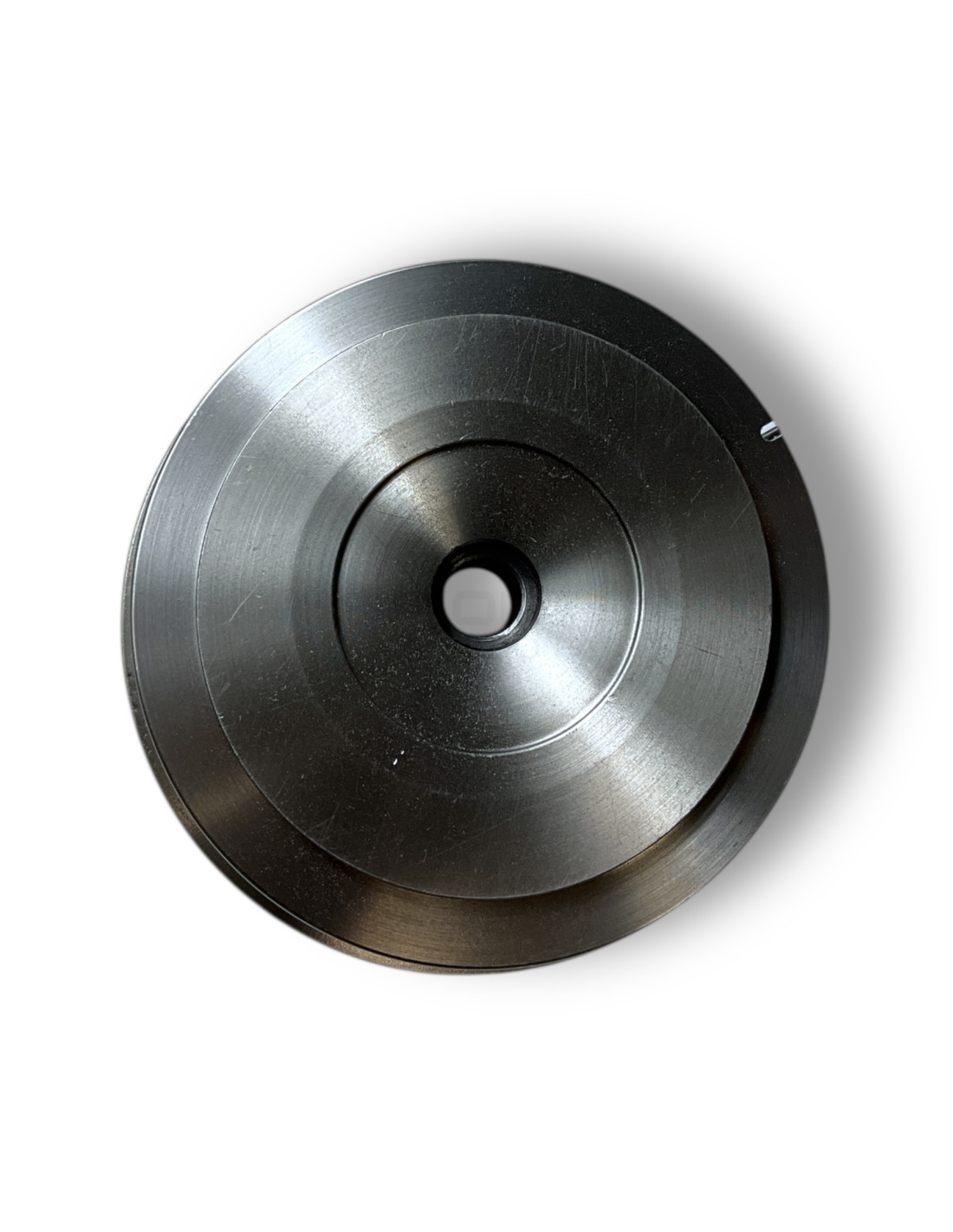

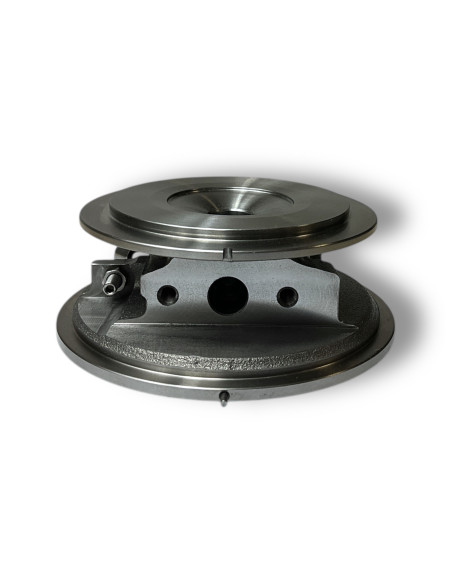

Bearing housing BH-G048
BH-G048
New
Please login to see prices and stock
Bearing housing BH-G048 for turbos 795680-0003, 805156-0003, 805156-0006.
BH-G048 - Bearing housing
Brand: Vortex
Vortex Reference: BH-G048
BH-G048 - Compatibility table
| Bearing housing BH-G048 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GTC1444VZ | 795680-0003 | 31312713 |
| Garrett | GTC1444VZ | 805156-0003 | 31331331 |
| Garrett | GTC1444VZ | 805156-0006 | 31380219 |
BH-G048 - Part Properties
VNT Position (Bearing Housing VNT Position): Left
Compressor End Diameter A (Compressor End Diameter A): 104.0
Compressor End Diameter B (Compressor End Diameter B): 84.4
Turbine End Diameter C (Turbine End Diameter C): 119.8
Turbine End Diameter D (Turbine End Diameter D): 107.8
Oil Inlet Diameter E (Oil Inlet Diameter E): M10X1
31312713, 795680-0003, 31331331, 805156-0003, 31380219, 805156-0006
Data updated: 2025-08-05 14:31:43
