Compressor Wheel CW-M005
CW-M005
New
Please login to see prices and stock
Compressor Wheel CW-M005 for turbos 49373-01000, 49373-01001, 49373-01002, 49373-01003, 49373-01004, 49373-01005.
CW-M005 - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-M005
CW-M005 - Compatibility table
| Compressor Wheel CW-M005 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Mitsubishi | TD025 | 49373-01000 | 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L |
| Mitsubishi | TD025 | 49373-01001 | 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L |
| Mitsubishi | TD025 | 49373-01002 | 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L |
| Mitsubishi | TD025 | 49373-01003 | 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L |
| Mitsubishi | TD025 | 49373-01004 | 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L |
| Mitsubishi | TD025 | 49373-01005 | 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L |
CW-M005 - Part Properties
Blades (Compressor wheel blades count): 6/6
Trim (Compressor wheel trim): Flatback

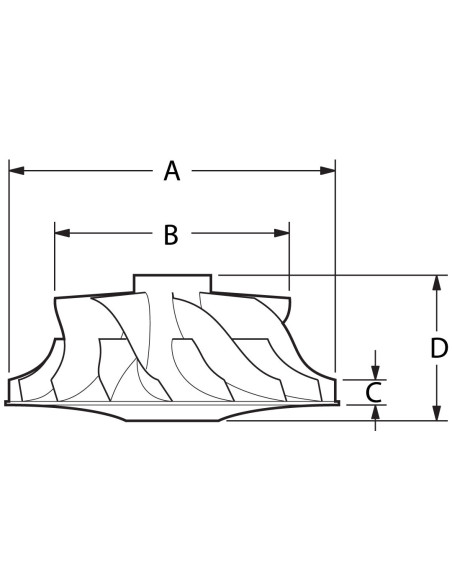

Exducer diameter A (Exducer diameter A): 40.0
Inducer diameter B (Inducer diameter B): 29.8
Tip Height C (Tip Height C): 4.8
Total Height D (Total Height D): 18.0
Model (Model): TD02
03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L, 49373-01000, 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L, 49373-01001, 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L, 49373-01002, 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L, 49373-01003, 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L, 49373-01004, 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L, 49373-01005
Data updated: 2025-07-09 15:20:19
