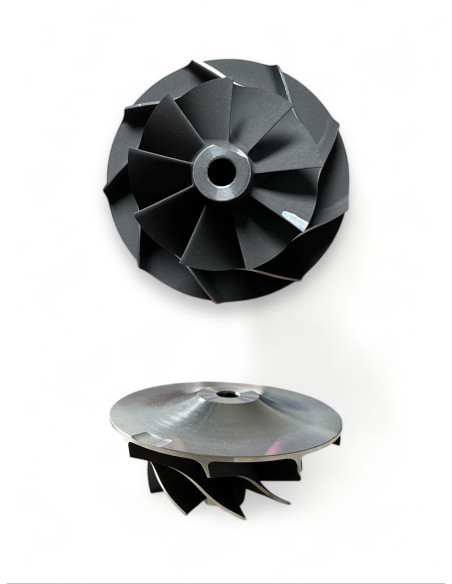

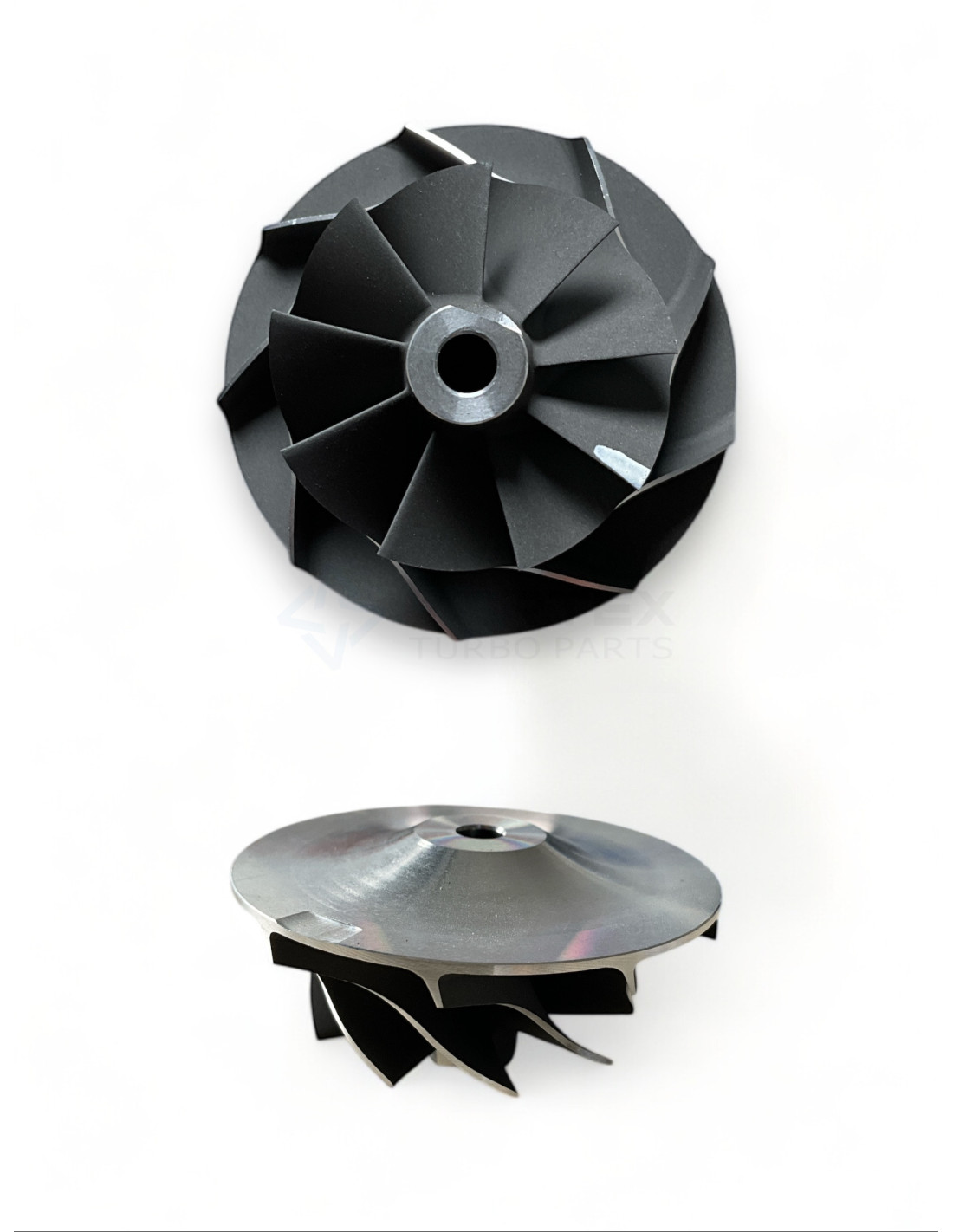

Compressor Wheel CW-G149
CW-G149
New
Please login to see prices and stock
Compressor Wheel CW-G149 for turbos 784114-0002, 796017-0001.
CW-G149 - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-G149
CW-G149 - Compatibility table
| Compressor Wheel CW-G149 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GTB1752 | 784114-0002 | -- |
| Garrett | GTB1752 | 796017-0001 | -- |
CW-G149 - Part Properties
Blades (Compressor wheel blades count): 9
Trim (Compressor wheel trim): Deep Superback

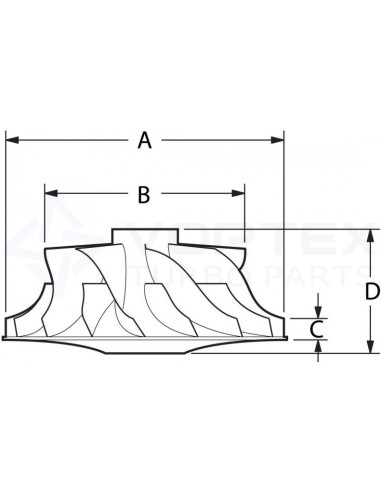

Exducer diameter A (Exducer diameter A): 52.4
Inducer diameter B (Inducer diameter B): 36.8
Tip Height C (Tip Height C): 4.5
Total Height D (Total Height D): 27.0
Model (Model): GT15-25
784114-0002, 796017-0001
