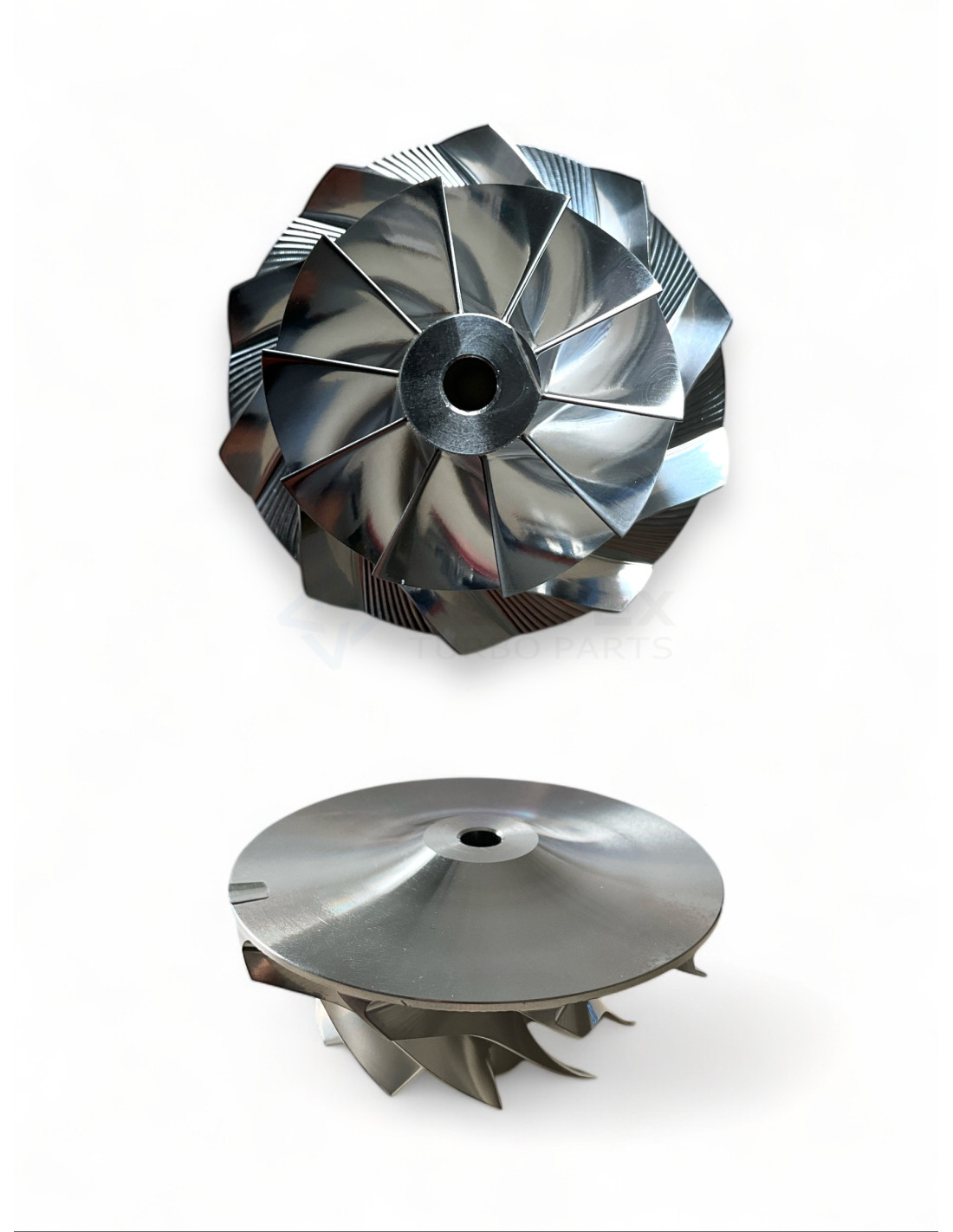

Compressor Wheel CW-G154B
Compressor Wheel CW-G154B

Compressor Wheel CW-G154B

CW-G154B
New
In Stock (18 Items)
€46.89
Tax included

Compressor Wheel CW-G154B for turbos 826830-0001, 826830-0003, 826830-0004, 829440-0001, 829440-0002, 829440-0003, 829440-0004, 833844-0001, 836977-0001, 839077-0002.



CW-G154B - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-G154B

CW-G154B - Compatibility table

Compressor Wheel CW-G154B - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
Garrett826830-0001--
Garrett826830-0003--
Garrett826830-0004--
GarrettGTB2060VR829440-0001--
GarrettGTB2060VR829440-0002--
GarrettGTB2060VR829440-0003--
GarrettGTB2060VR829440-0004--
GarrettGTD2060VZ833844-0001--
GarrettGTD2060VZK836977-0001--
GarrettGTD2060VZKL839077-0002059145873BP
GarrettGTD2060VZKL839077-0008059145873CH
GarrettGTD2060VZKL839077-0009059145873CL
GarrettGTD2060VZ839077-0011--
GarrettGTD2060VZK839078-0001--
GarrettGT2560SZ856061-0001--
GarrettGTD2060VZK880026-0001--
GarrettGTD2060VZK881651-0001--
GarrettGTD2060VZK888580-0001--
GarrettGTD2060VZK892460-0001--

CW-G154B - Part Properties

Blades (Compressor wheel blades count): 10

Trim (Compressor wheel trim): Deep Superback

Exducer diameter A (Exducer diameter A): 60.0

Inducer diameter B (Inducer diameter B): 42.9

Tip Height C (Tip Height C): 4.8

Total Height D (Total Height D): 32.4

Billet / Casting (Billet / Casting): Billet

Model (Model): GT15-25

826830-0001, 826830-0003, 826830-0004, 829440-0001, 829440-0002, 829440-0003, 829440-0004, 833844-0001, 836977-0001, 059145873BP, 839077-0002, 059145873CH, 839077-0008, 059145873CL, 839077-0009, 839077-0011, 839078-0001, 856061-0001, 880026-0001, 881651-0001, 888580-0001, 892460-0001

Data updated: 2024-10-21 17:34:57
