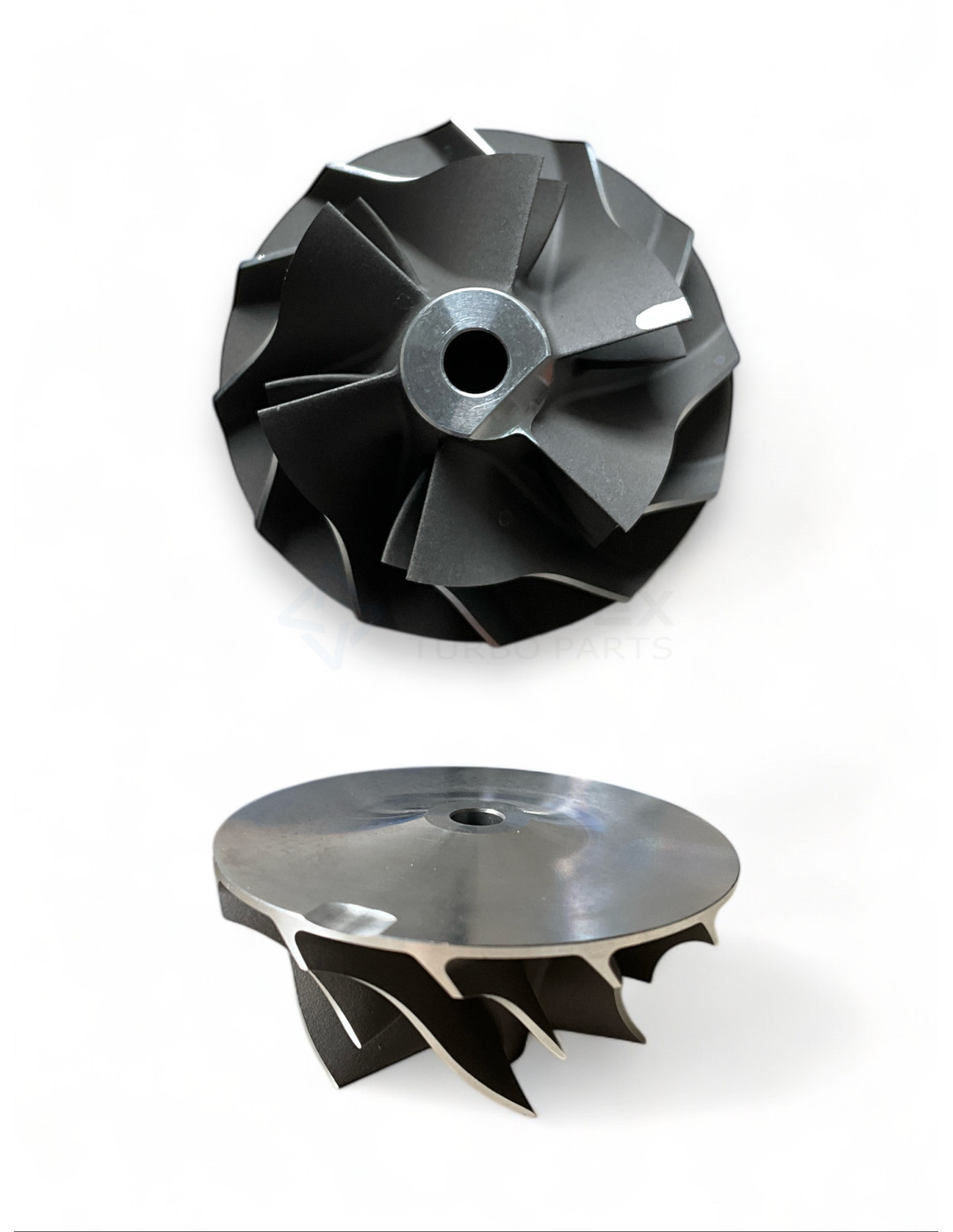

Compressor Wheel CW-M057
Compressor Wheel CW-M057

Compressor Wheel CW-M057

CW-M057
New
In Stock (18 Items)
€12.10
Tax included

Compressor Wheel CW-M057 for turbos 49135-00100, 49135-00101, 49135-00102, 49135-00110, 49135-00112, 49135-00120, 49135-00130, 49135-02000, 49135-02010, 49135-02700.



CW-M057 - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-M057

CW-M057 - Compatibility table

Compressor Wheel CW-M057 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTF03549135-00100--
MitsubishiTF03549135-00101--
MitsubishiTF03549135-00102--
MitsubishiTF03549135-00110--
MitsubishiTF03549135-00112--
MitsubishiTF03549135-00120--
MitsubishiTF03549135-00130--
MitsubishiTF03549135-02000--
MitsubishiTF03549135-02010--
MitsubishiTF03549135-02700--
MitsubishiTF03549135-02710--
MitsubishiTF03549135-02730--
MitsubishiTF03549135-02800--
MitsubishiTF03549135-04300--
MitsubishiTF03549135-04302--
MitsubishiTF03549135-04350--
MitsubishiTF03549135-05121--
MitsubishiTF03549135-05122--
MitsubishiTF03549135-05123--
MitsubishiTF03549135-05130--
MitsubishiTF03549135-05131--
MitsubishiTF03549135-05132--
MitsubishiTF03549135-05133--
MitsubishiTF03549135-05134--
MitsubishiTF035HM-10T-449135-06020--
MitsubishiTF035HM-10T-449135-06025--
MitsubishiTF035HM-10T-449135-06100--
MitsubishiTF035HM-10T-449135-06105--
MitsubishiTF035HM-10T-449135-06107--
MitsubishiTD0449377-01513--
MitsubishiTD0449377-01532--
MitsubishiTD0449377-01541--
MitsubishiTD0449377-01542--
MitsubishiTD0449377-01550--
MitsubishiTD0449377-01551--
MitsubishiTD0449377-01560--
MitsubishiTD0449377-01570--
MitsubishiTD0449377-01580--
MitsubishiTD0449377-01592--
MitsubishiTD0449377-01600--
MitsubishiTD0449377-01601--
MitsubishiTD0449377-01650--
MitsubishiTD0449377-01660--
MitsubishiTD04-10T-8.5T49377-073007701478861, 7711368133
MitsubishiTD04-10T-8.5T49377-073017701478861, 7711368133
MitsubishiTD04-10T-8.5T49377-073027701478861, 7711368133
MitsubishiTD04-10T-8.5T49377-073037701478861, 7711368133
MitsubishiTD04-10T-8.5T49377-073337701478861, 7711368133
MitsubishiTF03549497-66101--

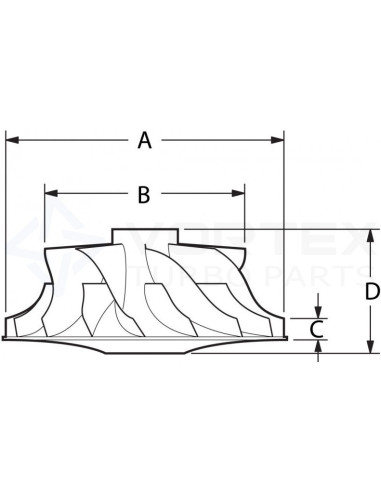

CW-M057 - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Superback

Exducer diameter A (Exducer diameter A): 49.0

Inducer diameter B (Inducer diameter B): 35.6

Tip Height C (Tip Height C): 4.4

Total Height D (Total Height D): 24.2

Model (Model): TF035

49135-00100, 49135-00101, 49135-00102, 49135-00110, 49135-00112, 49135-00120, 49135-00130, 49135-02000, 49135-02010, 49135-02700, 49135-02710, 49135-02730, 49135-02800, 49135-04300, 49135-04302, 49135-04350, 49135-05121, 49135-05122, 49135-05123, 49135-05130, 49135-05131, 49135-05132, 49135-05133, 49135-05134, 49135-06020, 49135-06025, 49135-06100, 49135-06105, 49135-06107, 49377-01513, 49377-01532, 49377-01541, 49377-01542, 49377-01550, 49377-01551, 49377-01560, 49377-01570, 49377-01580, 49377-01592, 49377-01600, 49377-01601, 49377-01650, 49377-01660, 49377-07300, 7701478861, 7711368133, 49377-07301, 7701478861, 7711368133, 49377-07302, 7701478861, 7711368133, 49377-07303, 7701478861, 7711368133, 49377-07333, 7701478861, 7711368133, 49497-66101

Data updated: 2025-02-11 19:09:17
