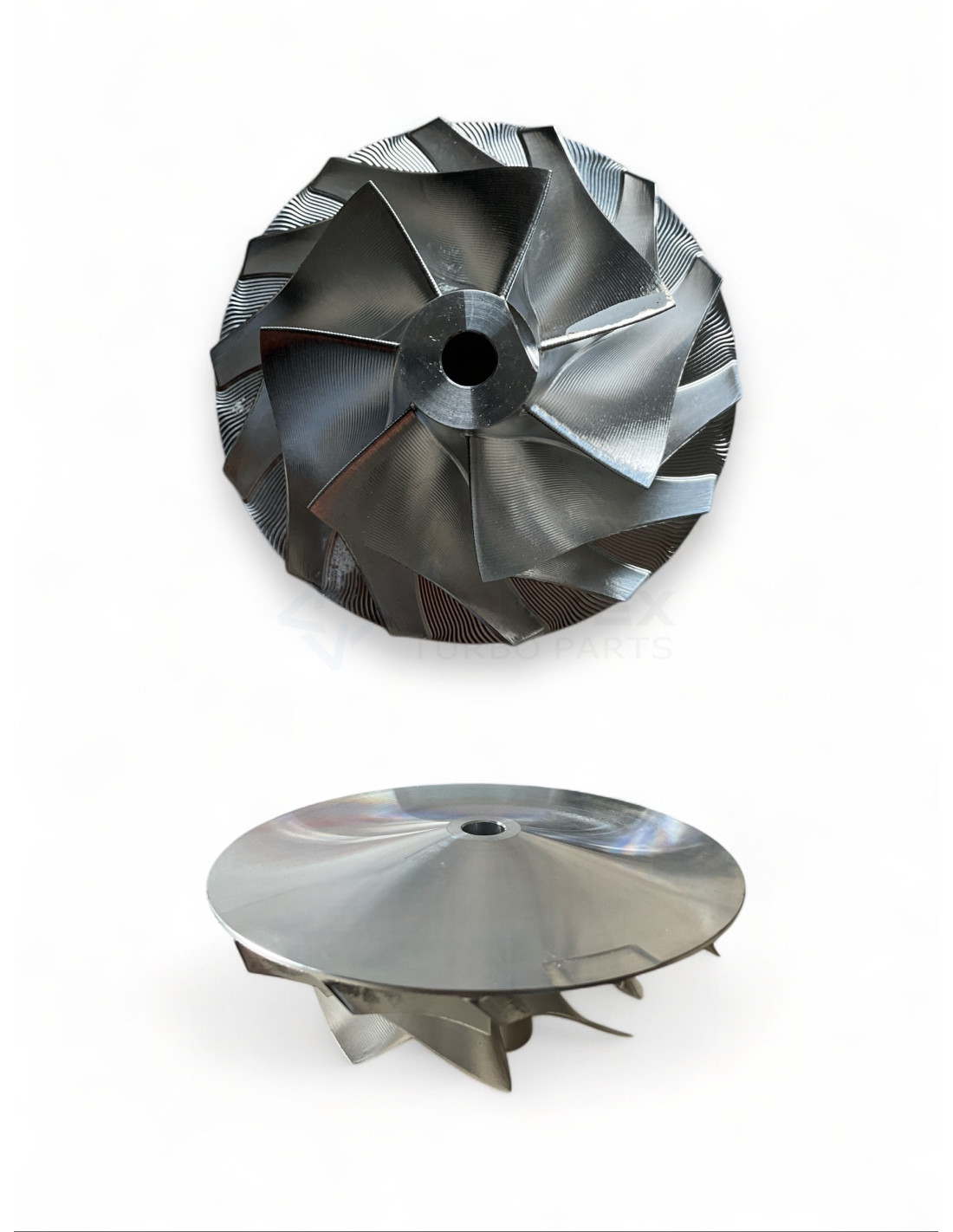

Compressor Wheel CW-H021B
CW-H021B
New
In Stock
(12 Items)
€151.25
Tax included
4038691, CW-H021B
Compressor Wheel CW-H021B for turbos 2835831, 2836825, 2836826, 2836994, 2837030, 2837031, 2837561, 2840199, 2840552, 2841022.
CW-H021B - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-H021B
CW-H021B - Alternative numbers
HSP (Holset original part number): 4038691
CW-H021B - Compatibility table
| Compressor Wheel CW-H021B - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Holset | HE531VE | 2835831 | -- |
| Holset | HE531VE | 2836825 | -- |
| Holset | HE531VE | 2836826 | -- |
| Holset | HX55 | 2836994 | -- |
| Holset | HX55 | 2837030 | -- |
| Holset | HX55 | 2837031 | -- |
| Holset | HX55 | 2837561 | -- |
| Holset | HX55 | 2840199 | -- |
| Holset | HE531VE | 2840552 | -- |
| Holset | HX55 | 2841022 | -- |
| Holset | HE531VE | 2842125 | -- |
| Holset | HX55 | 2843881 | -- |
| Holset | HX55 | 3599965 | -- |
| Holset | HX55 | 3599966 | -- |
| Holset | HX55 | 3599967 | -- |
| Holset | HX55 | 3599968 | -- |
| Holset | HX55 | 3767201 | -- |
| Holset | HX55 | 3767327 | -- |
| Holset | HX55 | 3767880 | -- |
| Holset | HX55 | 3768075 | -- |
| Holset | HX55 | 3768262 | -- |
| Holset | HX55 | 3771812 | -- |
| Holset | HX55 | 3772934 | -- |
| Holset | HE531VE | 3774611 | -- |
| Holset | HX55 | 3774807 | -- |
| Holset | HX55 | 3774808 | -- |
| Holset | HX55 | 3775715 | -- |
| Holset | HX55 | 3776350 | -- |
| Holset | HX55 | 3776619 | -- |
| Holset | HX55 | 3780142 | -- |
| Holset | HX55 | 3780143 | -- |
| Holset | HX55 | 3781166 | -- |
| Holset | HE531VE | 3781169 | -- |
| Holset | HX55 | 3781927 | -- |
| Holset | HX55 | 3781928 | -- |
| Holset | HX55 | 3782231 | -- |
| Holset | HX55 | 3782232 | -- |
| Holset | HX55 | 3782233 | -- |
| Holset | HX55 | 3784832 | -- |
| Holset | HX55 | 3784834 | -- |
| Holset | HX55 | 3786064 | -- |
| Holset | HX55 | 3788474 | -- |
| Holset | HX52 | 3788475 | -- |
| Holset | HX55 | 3790504 | -- |
| Holset | HX55 | 3790505 | -- |
| Holset | HX55 | 3790506 | -- |
| Holset | HX55 | 3790513 | -- |
| Holset | HX55 | 3790524 | -- |
| Holset | HX55 | 3790533 | -- |
| Holset | HX55 | 3790534 | -- |
| Holset | HX55 | 3790535 | -- |
| Holset | HX55 | 3790536 | -- |
| Holset | HX55 | 3790878 | -- |
| Holset | HX55 | 3791109 | -- |
| Holset | HE531VE | 3792071 | -- |
| Holset | HX55 | 3795669 | -- |
| Holset | HE531VE | 3798597 | -- |
| Holset | HE531VE | 4031052 | -- |
| Holset | HX55 | 4031173 | -- |
| Holset | HX55 | 4031196 | -- |
| Holset | HE531VE | 4034313 | -- |
| Holset | HX55 | 4038756 | -- |
| Holset | HX55 | 4038876 | -- |
| Holset | HX55 | 4038879 | -- |
| Holset | HX55 | 4038983 | -- |
| Holset | HX55 | 4040344 | -- |
| Holset | HX55 | 4040346 | -- |
| Holset | HX55 | 4040348 | -- |
| Holset | HX55 | 4043212 | -- |
| Holset | HE531VE | 4043261 | -- |
| Holset | HX55 | 4044200 | -- |
| Holset | HX55 | 4044201 | -- |
| Holset | HX55 | 4045282 | -- |
| Holset | HE531VE | 4045291 | -- |
| Holset | HX55 | 4045923 | -- |
| Holset | HE531VE | 4046415 | -- |
| Holset | HE531VE | 4047269 | -- |
| Holset | HE531VE | 4047597 | -- |
| Holset | HX55 | 4047778 | -- |
| Holset | HX55 | 4047780 | -- |
| Holset | HX55 | 4048102 | -- |
| Holset | HX55 | 4048104 | -- |
| Holset | HX55 | 4048105 | -- |
| Holset | HX55 | 4048106 | -- |
| Holset | HX55 | 5322481 | -- |
| Holset | HE531VE | 5329513 | -- |
| Holset | HX55 | 5353159 | -- |
| Holset | HE531VE | 5355113 | -- |
CW-H021B - Part Properties
Blades (Compressor wheel blades count): 7/7
Trim (Compressor wheel trim): Superback
Exducer diameter A (Exducer diameter A): 99.0
Inducer diameter B (Inducer diameter B): 67.0
Tip Height C (Tip Height C): 6.2
Total Height D (Total Height D): 45.0
Billet / Casting (Billet / Casting): Billet
Model (Model): HX55
2835831, 2836825, 2836826, 2836994, 2837030, 2837031, 2837561, 2840199, 2840552, 2841022, 2842125, 2843881, 3599965, 3599966, 3599967, 3599968, 3767201, 3767327, 3767880, 3768075, 3768262, 3771812, 3772934, 3774611, 3774807, 3774808, 3775715, 3776350, 3776619, 3780142, 3780143, 3781166, 3781169, 3781927, 3781928, 3782231, 3782232, 3782233, 3784832, 3784834, 3786064, 3788474, 3788475, 3790504, 3790505, 3790506, 3790513, 3790524, 3790533, 3790534, 3790535, 3790536, 3790878, 3791109, 3792071, 3795669, 3798597, 4031052, 4031173, 4031196, 4034313, 4038756, 4038876, 4038879, 4038983, 4040344, 4040346, 4040348, 4043212, 4043261, 4044200, 4044201, 4045282, 4045291, 4045923, 4046415, 4047269, 4047597, 4047778, 4047780, 4048102, 4048104, 4048105, 4048106, 5322481, 5329513, 5353159, 5355113
