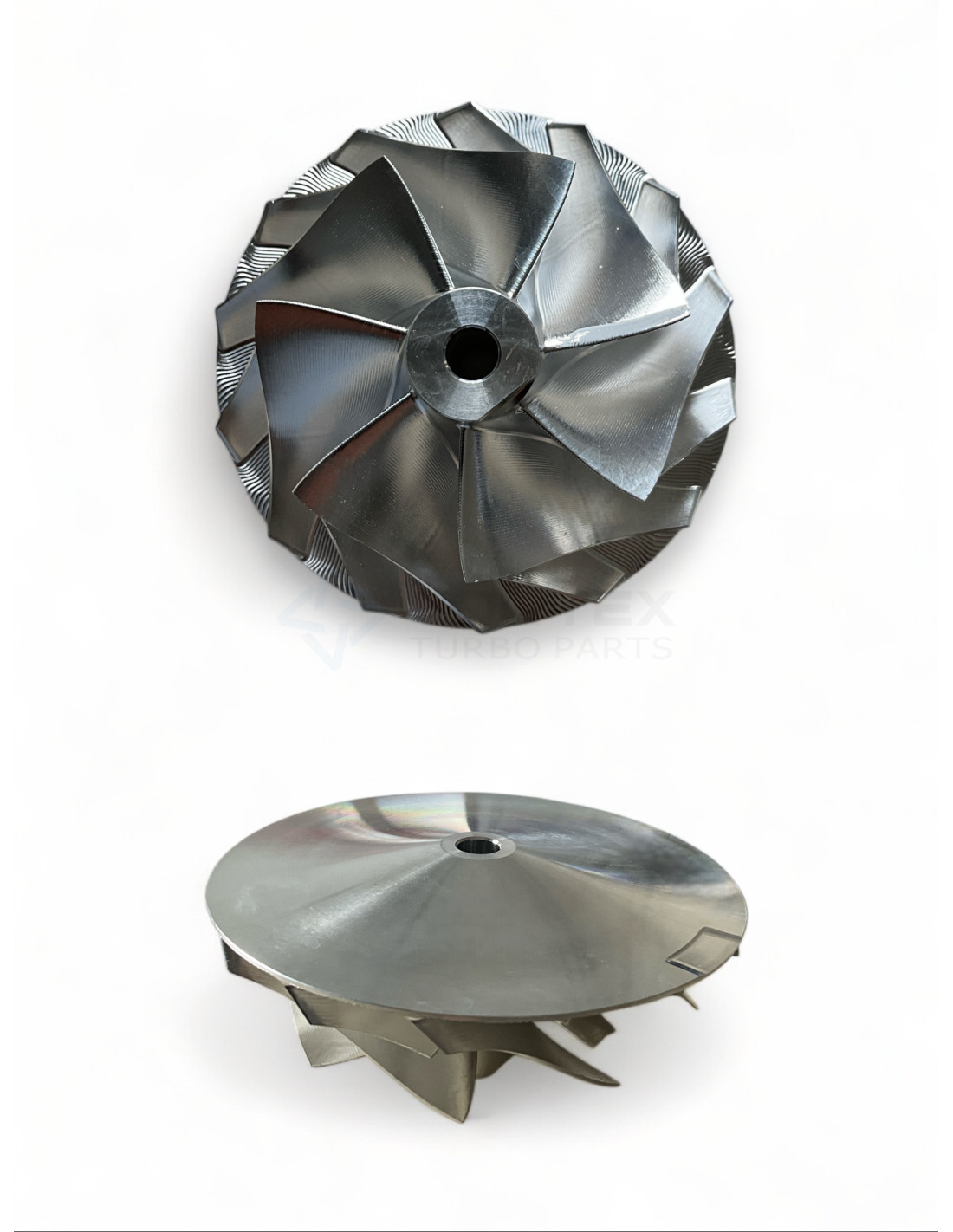

Compressor Wheel CW-H022B
CW-H022B
New
Please login to see prices and stock
Compressor Wheel CW-H022B for turbos 2835253, 2836326, 2841397, 2841400, 3595090, 3596613, 3773926, 3779302, 3781029, 3782537.
CW-H022B - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-H022B
CW-H022B - Compatibility table
| Compressor Wheel CW-H022B - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Holset | HX55 | 2835253 | -- |
| Holset | HX50 | 2836326 | -- |
| Holset | HE500WG | 2841397 | -- |
| Holset | HE500WG | 2841400 | -- |
| Holset | HX55 | 3595090 | -- |
| Holset | HX55 | 3596613 | -- |
| Holset | HE500WG | 3773926 | -- |
| Holset | HX55 | 3779302 | -- |
| Holset | HE500WG | 3781029 | -- |
| Holset | HX55 | 3782537 | -- |
| Holset | HE500WG | 3790714 | -- |
| Holset | HE500WG | 3794641 | -- |
| Holset | HE500WG | 3794643 | -- |
| Holset | HX55 | 4036892 | -- |
| Holset | HX55 | 4036915 | -- |
| Holset | HX55 | 4037084 | -- |
| Holset | HX55 | 4037086 | -- |
| Holset | HX55 | 4037088 | -- |
| Holset | HX55 | 4037480 | -- |
| Holset | HX55 | 4037635 | -- |
| Holset | HX55 | 4039065 | -- |
| Holset | HX55 | 4039069 | -- |
| Holset | HX55 | 4040844 | -- |
| Holset | HX55 | 4043698 | -- |
| Holset | HX55 | 4043719 | -- |
| Holset | HX55 | 4046127 | -- |
| Holset | HX55 | 4046131 | -- |

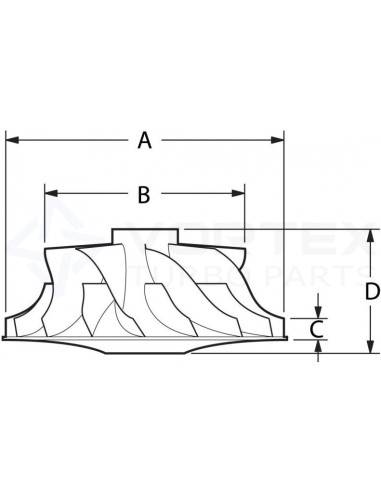

CW-H022B - Part Properties
Blades (Compressor wheel blades count): 7/7
Trim (Compressor wheel trim): Superback
Exducer diameter A (Exducer diameter A): 99.0
Inducer diameter B (Inducer diameter B): 71.0
Tip Height C (Tip Height C): 7.2
Total Height D (Total Height D): 45.0
Billet / Casting (Billet / Casting): Billet
Model (Model): HX55
2835253, 2836326, 2841397, 2841400, 3595090, 3596613, 3773926, 3779302, 3781029, 3782537, 3790714, 3794641, 3794643, 4036892, 4036915, 4037084, 4037086, 4037088, 4037480, 4037635, 4039065, 4039069, 4040844, 4043698, 4043719, 4046127, 4046131
Data updated: 2025-07-15 10:21:58
