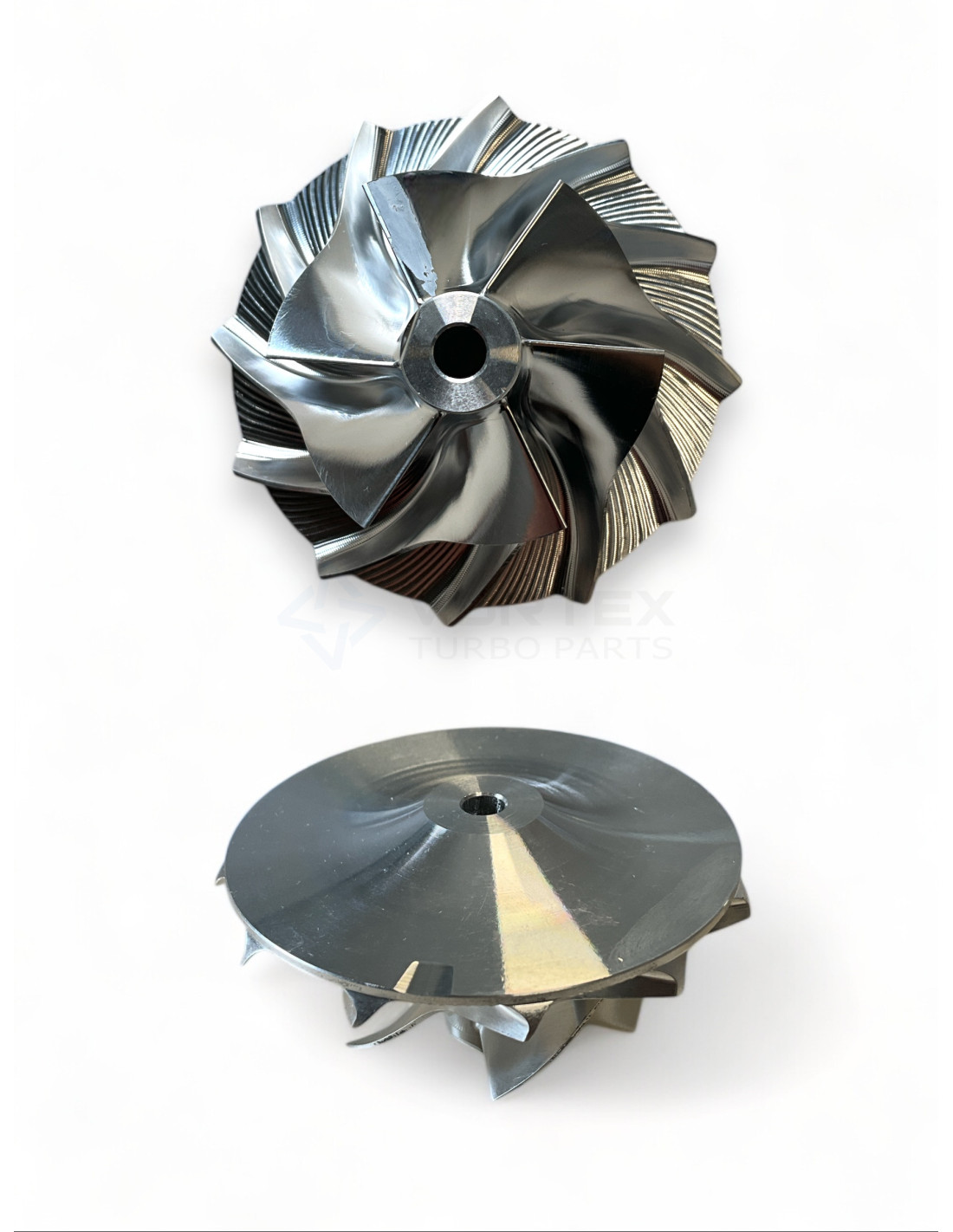

Compressor Wheel CW-G162BR
CW-G162BR
New
Please login to see prices and stock
Compressor Wheel CW-G162BR for turbos 858864-0002, 858864-0004, 858864-0006, 858864-0008, 858864-0009, 899306-0001, 899306-0003, 899306-0004.
CW-G162BR - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-G162BR
CW-G162BR - Compatibility table
| Compressor Wheel CW-G162BR - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | DSGT-GT2260S | 858864-0002 | -- |
| Garrett | DSGT-GT2260S | 858864-0004 | -- |
| Garrett | DSGT-GT2260S | 858864-0006 | -- |
| Garrett | DSGT-GT2260S | 858864-0008 | -- |
| Garrett | DSGT-GT2260S | 858864-0009 | -- |
| Garrett | DSGT-GT2260S | 899306-0001 | -- |
| Garrett | DSGT-GT2260S | 899306-0003 | -- |
| Garrett | DSGT-GT2260S | 899306-0004 | -- |
CW-G162BR - Part Properties
Blades (Compressor wheel blades count): 6/6
Trim (Compressor wheel trim): Deep Superback
Exducer diameter A (Exducer diameter A): 60.0
Inducer diameter B (Inducer diameter B): 40.2
Tip Height C (Tip Height C): 4.5
Total Height D (Total Height D): 33.0
Billet / Casting (Billet / Casting): Billet
Rotation (Rotation): Reverse
Model (Model): GT15-25
858864-0002, 858864-0004, 858864-0006, 858864-0008, 858864-0009, 899306-0001, 899306-0003, 899306-0004
Data updated: 2025-07-14 16:01:38
