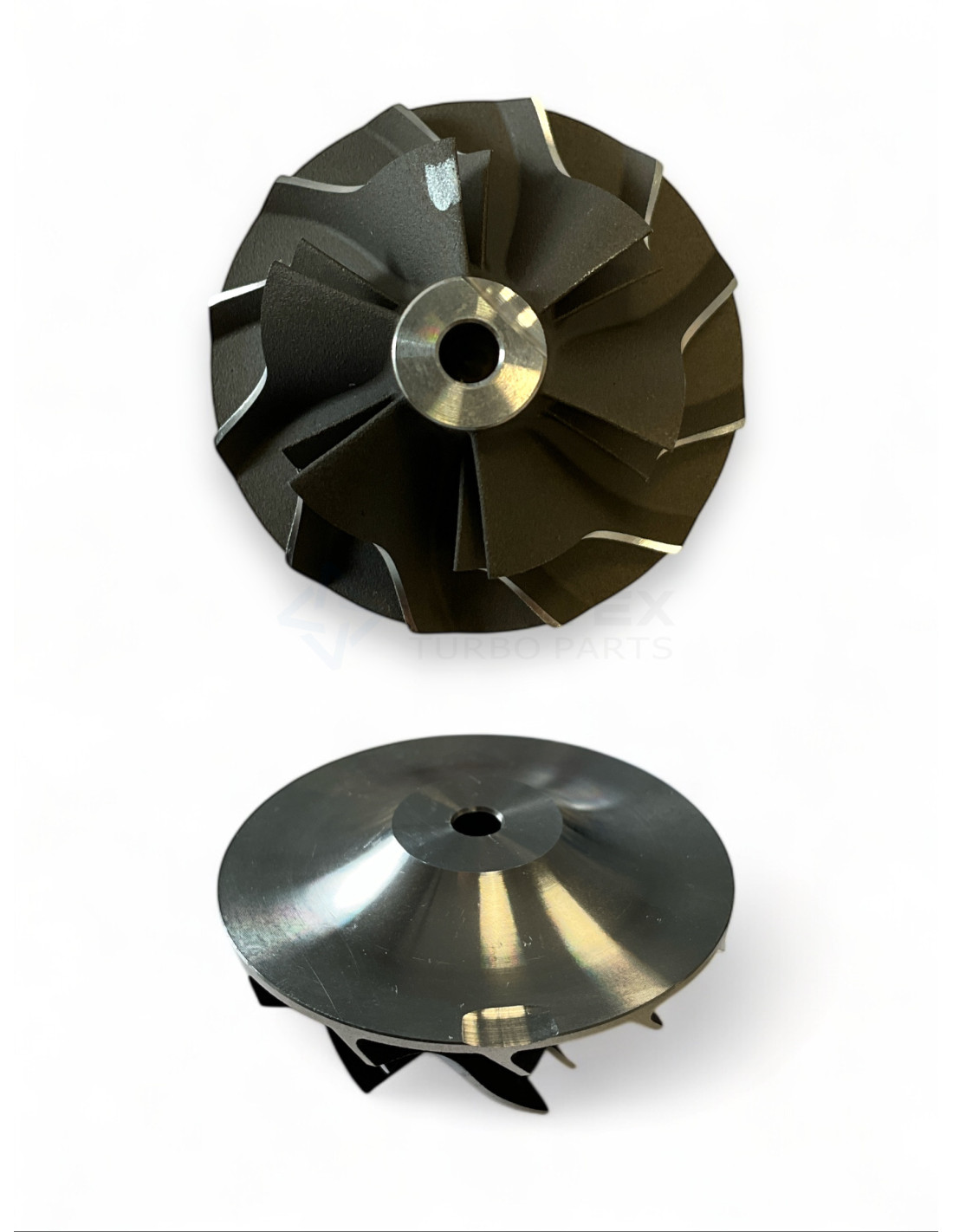

Compressor Wheel CW-G015
CW-G015
New
786554-0003, CW-G015
Compressor Wheel CW-G015 for turbos 775517-0001, 775517-0002, 775517-0005, 776402-0002, 776402-0003, 776403-0002, 776403-0003, 784011-0005, 794097-0002, 794097-0003.
CW-G015 - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-G015
CW-G015 - Alternative numbers
GHO (Garrett original part number): 786554-0003
CW-G015 - Compatibility table
| Compressor Wheel CW-G015 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GTC1244MVZ | 775517-0001 | 03L253016T |
| Garrett | GTC1244MVZ | 775517-0002 | 03L253016T |
| Garrett | GTC1244MVZ | 775517-0005 | 03L253016T |
| Garrett | GTB1244VZ | 776402-0002 | -- |
| Garrett | GTB1244VZ | 776402-0003 | -- |
| Garrett | GTB1244VZ | 776403-0002 | -- |
| Garrett | GTB1244VZ | 776403-0003 | -- |
| Garrett | GTC1244VZ | 784011-0005 | 0375P7, 968612068005, 968612068010 |
| Garrett | GTB1244VZ | 794097-0002 | 28201-2A850, 282012A850 |
| Garrett | GTB1244VZ | 794097-0003 | 28201-2A850, 282012A850 |
| Garrett | GTC1444VZ | 795680-0003 | 31312713 |
| Garrett | GTC14 | 804485-0001 | -- |
| Garrett | GTC14 | 804485-0002 | -- |
| Garrett | GTC14 | 804485-0004 | -- |
| Garrett | GTC14 | 804485-0005 | -- |
| Garrett | GTC1244VZ | 806291-0001 | 0375P7, 968612068006, 968612068010 |
| Garrett | GTC1244VZ | 806291-0002 | 0375P7, 968612068006, 968612068010 |
| Garrett | GTC1244VZ | 806291-0003 | 0375P7, 968612068006, 968612068010 |
| Garrett | GTC1244VKZ | 824060-0005 | -- |
| Garrett | GTC1244VKZ | 824060-0006 | -- |
| Garrett | GTC1244VKZ | 824060-0007 | -- |
| Garrett | GTC1244MVKZ | 829886-0001 | -- |
CW-G015 - Part Properties
Blades (Compressor wheel blades count): 6/6
Trim (Compressor wheel trim): Deep Superback
Exducer diameter A (Exducer diameter A): 44.0
Inducer diameter B (Inducer diameter B): 31.2
Tip Height C (Tip Height C): 3.5
Total Height D (Total Height D): 24.2
Model (Model): GT12
03L253016T, 775517-0001, 03L253016T, 775517-0002, 03L253016T, 775517-0005, 776402-0002, 776402-0003, 776403-0002, 776403-0003, 0375P7, 784011-0005, 968612068005, 968612068010, 28201-2A850, 282012A850, 794097-0002, 28201-2A850, 282012A850, 794097-0003, 31312713, 795680-0003, 804485-0001, 804485-0002, 804485-0004, 804485-0005, 0375P7, 806291-0001, 968612068006, 968612068010, 0375P7, 806291-0002, 968612068006, 968612068010, 0375P7, 806291-0003, 968612068006, 968612068010, 824060-0005, 824060-0006, 824060-0007, 829886-0001
Data updated: 2024-10-01 16:30:59
