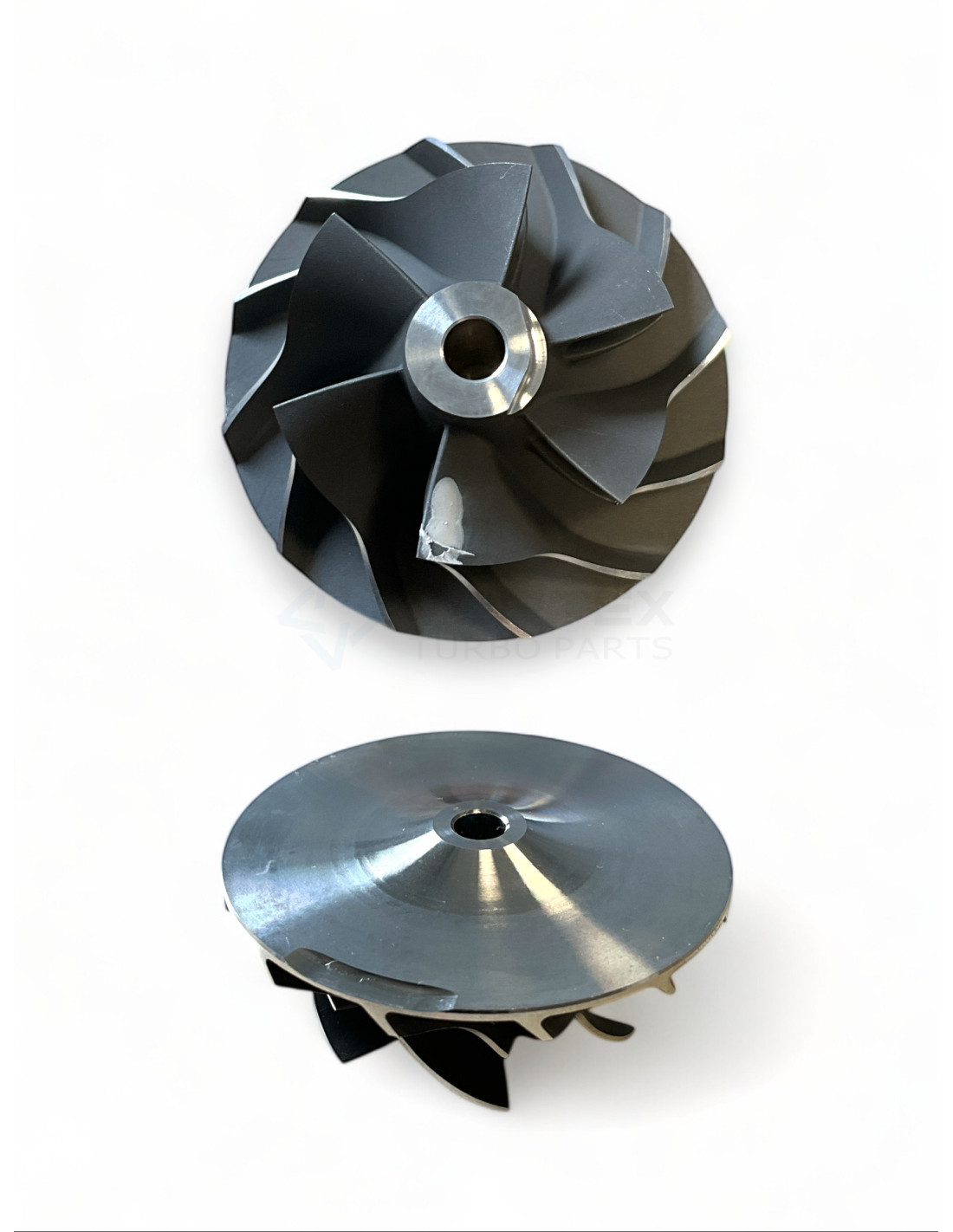

Compressor Wheel CW-G026
Compressor Wheel CW-G026

Compressor Wheel CW-G026

CW-G026
New
In Stock (141 Items)
€9.08
Tax included

702489-0002, 702489-0006, 702489-0009, CW-G026

Compressor Wheel CW-G026 for turbos 712077-0001, 712078-0001, 712078-0002, 712766-0001, 712766-0002, 713667-0001, 713667-0002, 713667-0003, 714467-0003, 714467-0004.



CW-G026 - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-G026

CW-G026 - Alternative numbers

GHO (Garrett original part number): 702489-0002

GHO (Garrett original part number): 702489-0006

GHO (Garrett original part number): 702489-0009

CW-G026 - Compatibility table

Compressor Wheel CW-G026 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749V712077-0001--
GarrettGT1749V712078-0001--
GarrettGT1749V712078-0002--
GarrettGT1749V712766-0001--
GarrettGT1749V712766-0002--
GarrettGT1549S713667-0001--
GarrettGT1549S713667-0002--
GarrettGT1549S713667-0003--
GarrettGT1749V714467-0003--
GarrettGT1749V714467-0004--
GarrettGT1749V714467-0005--
GarrettGT1749V714467-0007--
GarrettGT1749V714467-0008--
GarrettGT1749V714467-0010--
GarrettGT1749V714467-0012--
GarrettGT1749V714467-0013--
GarrettGT1749V714467-0014--
GarrettGT174714485-0001--
GarrettGT174714485-0002--
GarrettGT17714485-0006--
GarrettGTA1749VK714486-00017786799B
GarrettGTA1749VK714486-00027786801B
GarrettGTA1749VK714486-00057786799C
GarrettGTA1749VK714486-00067786801C
GarrettGTA1749VK714486-00087786801C
GarrettGT1749V716215-0001--
GarrettGT1749V716216-0001--
GarrettGT1749V716860-0001038253016E, 038253016F, 03G253016Q
GarrettGT1749V716860-0002038253016E, 038253016F, 03G253016Q
GarrettGT1749V716860-0003038253016E, 038253016F, 03G253016Q
GarrettGTA1749V717858-0001038145702E, 038145702G, 038145702J, 038145702N
GarrettGTA1749V717858-0002038145702E, 038145702EV110, 038145702G, 038145702J, 038145702N
GarrettGTA1749V717858-0003038145702E, 038145702G, 038145702J, 038145702N
GarrettGTA1749V717858-0004038145702E, 038145702G, 038145702GV105, 038145702J, 038145702N
GarrettGTA1749V717858-0005038145702E, 038145702G, 038145702J, 038145702N
GarrettGTA1749V717858-0006038145702E, 038145702G, 038145702GV505, 038145702J, 038145702N
GarrettGTA1749V717858-0007038145702E, 038145702G, 038145702GV550, 038145702J, 038145702N
GarrettGT1749V720855-0001038253016E, 038253016F, 03G253016Q
GarrettGT1749V720855-0003038253016E, 038253016F, 038253016FV115, 03G253016Q
GarrettGT1749V720855-0004038253016E, 038253016F, 038253016FV500, 03G253016Q
GarrettGT1749V720855-0005038253016E, 038253016F, 038253016FV510, 03G253016Q
GarrettGT1749V720855-0006038253016E, 038253016F, 03G253016Q
GarrettGT1749V720855-000703G253016Q
GarrettGT1749V722010-000311657789077, 77890582A, 7789069E, 7789076F
GarrettGT1749V722010-000411657789077, 77890582A, 7789069E, 7789076F
GarrettGT1749V722010-000811657789077, 77890582A, 7789069E, 7789076F
GarrettGT1749V722011-000311657789076, 7789070E, 7789077F, 7789583A
GarrettGT1749V722011-000411657789076, 7789070E, 7789077F, 7789583A
GarrettGT1749V722011-000711657789076, 7789070E, 7789077F, 7789583A
GarrettGT1749V724930-000203G253010J, 03G253014H, 03G253019A
GarrettGT1749V724930-000403G253010J, 03G253014H, 03G253019A
GarrettGT1749V724930-000603G253010J, 03G253014H, 03G253019A, 03G253019AV550
GarrettGT1749V728680-0001--
GarrettGT1749V728680-0002--
GarrettGT1749V728680-0003--
GarrettGT1749V728680-0004--
GarrettGT1749V728680-0007--
GarrettGT1749V728680-0009--
GarrettGT1749V728680-0010--
GarrettGT1749V728680-0011--
GarrettGT1749V728680-0012--
GarrettGT1749V729041-000928231-27900, 2823127900
GarrettGTA1749V733701-0001--
GarrettGTA1749V733701-0002--
GarrettGTA1749V733701-0003--
GarrettGTA1749V733701-0004--
GarrettGT1549S734204-0001--
GarrettGT1749V740911-00017790221C
GarrettGT1749V740911-00037790223C
GarrettGT1749V740911-00067790223D03
GarrettGT1749V740911-00077790223D03
GarrettGT1749V741785-00047792413
GarrettGT1749V741785-00077792413
GarrettGT1749V741785-00107792412F
GarrettGT1749V741785-00137792412
GarrettGT1749V741785-00147792413
GarrettGT1749V741785-00167792413
GarrettGTA1749VK742785-0004--
GarrettGTA1749VK742785-0007--
GarrettGTA1749VK742785-0010--
GarrettGTA1749VK742785-0013--
GarrettGT1749V750718-0001--
GarrettGT17 VNT750720-0003--
GarrettGT1749V756062-000203G253014J, MN980201
GarrettGT1749V758219-000203G145702F
GarrettGT1749V758219-000303G145702F, 03G145702K
GarrettGT1749V758219-000403G145702F, 03G145702K
GarrettGTB1549V761433-0002A6640900780
GarrettGTB1549V761433-0003A6640900880
GarrettGT1749V761437-0003--
GarrettGT1749V761437-0005--
GarrettGT1749V761437-0006--

CW-G026 - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Superback

Exducer diameter A (Exducer diameter A): 49.0

Inducer diameter B (Inducer diameter B): 34.7

Tip Height C (Tip Height C): 3.7

Total Height D (Total Height D): 24.8

Model (Model): GT15-25

712077-0001, 712078-0001, 712078-0002, 712766-0001, 712766-0002, 713667-0001, 713667-0002, 713667-0003, 714467-0003, 714467-0004, 714467-0005, 714467-0007, 714467-0008, 714467-0010, 714467-0012, 714467-0013, 714467-0014, 714485-0001, 714485-0002, 714485-0006, 714486-0001, 7786799B, 714486-0002, 7786801B, 714486-0005, 7786799C, 714486-0006, 7786801C, 714486-0008, 7786801C, 716215-0001, 716216-0001, 038253016E, 038253016F, 03G253016Q, 716860-0001, 038253016E, 038253016F, 03G253016Q, 716860-0002, 038253016E, 038253016F, 03G253016Q, 716860-0003, 038145702E, 038145702G, 038145702J, 038145702N, 717858-0001, 038145702E, 038145702EV110, 038145702G, 038145702J, 038145702N, 717858-0002, 038145702E, 038145702G, 038145702J, 038145702N, 717858-0003, 038145702E, 038145702G, 038145702GV105, 038145702J, 038145702N, 717858-0004, 038145702E, 038145702G, 038145702J, 038145702N, 717858-0005, 038145702E, 038145702G, 038145702GV505, 038145702J, 038145702N, 717858-0006, 038145702E, 038145702G, 038145702GV550, 038145702J, 038145702N, 717858-0007, 038253016E, 038253016F, 03G253016Q, 720855-0001, 038253016E, 038253016F, 038253016FV115, 03G253016Q, 720855-0003, 038253016E, 038253016F, 038253016FV500, 03G253016Q, 720855-0004, 038253016E, 038253016F, 038253016FV510, 03G253016Q, 720855-0005, 038253016E, 038253016F, 03G253016Q, 720855-0006, 03G253016Q, 720855-0007, 11657789077, 722010-0003, 77890582A, 7789069E, 7789076F, 11657789077, 722010-0004, 77890582A, 7789069E, 7789076F, 11657789077, 722010-0008, 77890582A, 7789069E, 7789076F, 11657789076, 722011-0003, 7789070E, 7789077F, 7789583A, 11657789076, 722011-0004, 7789070E, 7789077F, 7789583A, 11657789076, 722011-0007, 7789070E, 7789077F, 7789583A, 03G253010J, 03G253014H, 03G253019A, 724930-0002, 03G253010J, 03G253014H, 03G253019A, 724930-0004, 03G253010J, 03G253014H, 03G253019A, 03G253019AV550, 724930-0006, 728680-0001, 728680-0002, 728680-0003, 728680-0004, 728680-0007, 728680-0009, 728680-0010, 728680-0011, 728680-0012, 28231-27900, 2823127900, 729041-0009, 733701-0001, 733701-0002, 733701-0003, 733701-0004, 734204-0001, 740911-0001, 7790221C, 740911-0003, 7790223C, 740911-0006, 7790223D03, 740911-0007, 7790223D03, 741785-0004, 7792413, 741785-0007, 7792413, 741785-0010, 7792412F, 741785-0013, 7792412, 741785-0014, 7792413, 741785-0016, 7792413, 742785-0004, 742785-0007, 742785-0010, 742785-0013, 750718-0001, 750720-0003, 03G253014J, 756062-0002, MN980201, 03G145702F, 758219-0002, 03G145702F, 03G145702K, 758219-0003, 03G145702F, 03G145702K, 758219-0004, 761433-0002, A6640900780, 761433-0003, A6640900880, 761437-0003, 761437-0005, 761437-0006
