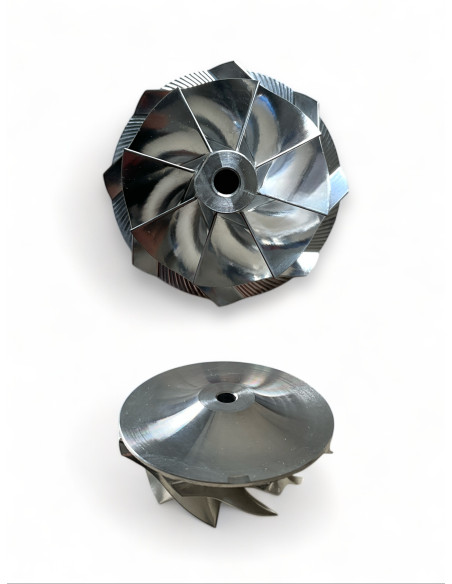

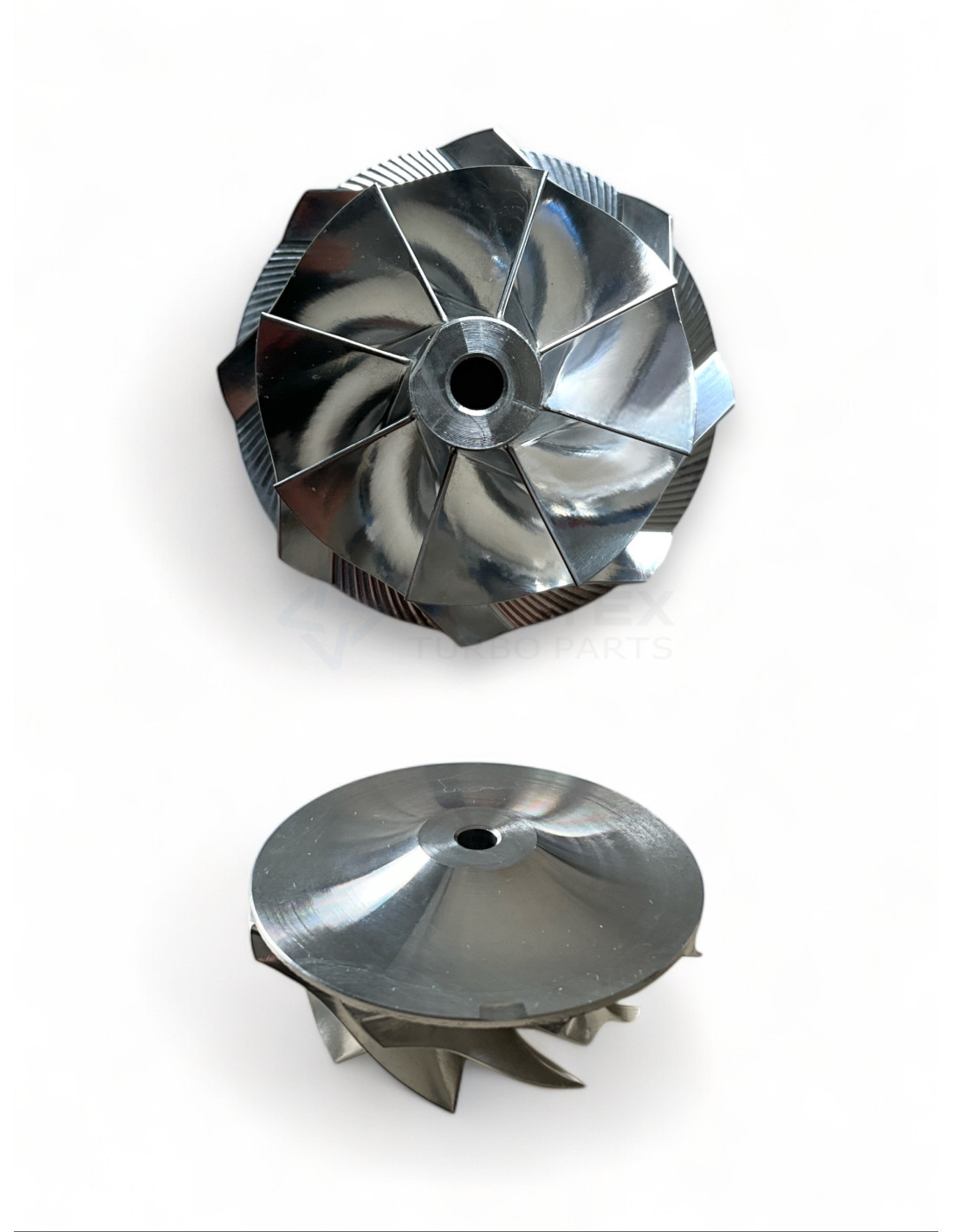

Compressor Wheel CW-G023B
CW-G023B
New
Please login to see prices and stock
Compressor Wheel CW-G023B for turbos 827388-0003, 827388-0005, 827388-0009, 827388-0011, 827388-0012, 827388-0013, 843565-0003, 843565-0004, 843565-0005, 843565-0006.
CW-G023B - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-G023B
CW-G023B - Compatibility table
| Compressor Wheel CW-G023B - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | MGT1446SZ | 827388-0003 | 14411BV84B |
| Garrett | MGT1446SZ | 827388-0005 | 14411BV84B |
| Garrett | MGT1446SZ | 827388-0009 | 14411BV84B |
| Garrett | MGT1446SZ | 827388-0011 | 14411BV86A |
| Garrett | MGT1446SZ | 827388-0012 | 14411BV84B |
| Garrett | MGT1446SZ | 827388-0013 | 14411BV84B |
| Garrett | MGT1446LKSZ | 843565-0003 | -- |
| Garrett | MGT1446LKSZ | 843565-0004 | -- |
| Garrett | MGT1446LKSZ | 843565-0005 | -- |
| Garrett | MGT1446LKSZ | 843565-0006 | -- |
| Garrett | MGT1446LKSZ | 843565-0007 | -- |
| Garrett | MGT1446SZLKO | 844076-0006 | -- |
| Garrett | MGT1446SZLKO | 844076-0008 | -- |
| Garrett | MGT1446SZLKO | 844076-0010 | -- |
| Garrett | MGT1446LKSZ | 883935-0005 | -- |
| Garrett | MGT1446LKSZ | 883936-0002 | -- |
| Garrett | MGT1446LKSZ | 883936-0005 | -- |
| Garrett | MGT1446LKSZ | 893067-0003 | -- |

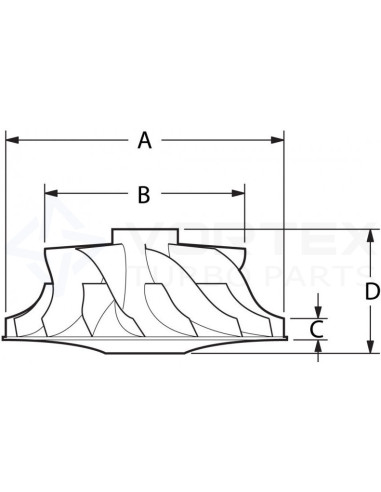

CW-G023B - Part Properties
Blades (Compressor wheel blades count): 8
Trim (Compressor wheel trim): Superback
Exducer diameter A (Exducer diameter A): 46.0
Inducer diameter B (Inducer diameter B): 36.3
Tip Height C (Tip Height C): 4.3
Total Height D (Total Height D): 25.2
Model (Model): GT14
14411BV84B, 827388-0003, 14411BV84B, 827388-0005, 14411BV84B, 827388-0009, 14411BV86A, 827388-0011, 14411BV84B, 827388-0012, 14411BV84B, 827388-0013, 843565-0003, 843565-0004, 843565-0005, 843565-0006, 843565-0007, 844076-0006, 844076-0008, 844076-0010, 883935-0005, 883936-0002, 883936-0005, 893067-0003
Data updated: 2025-07-14 11:28:55
