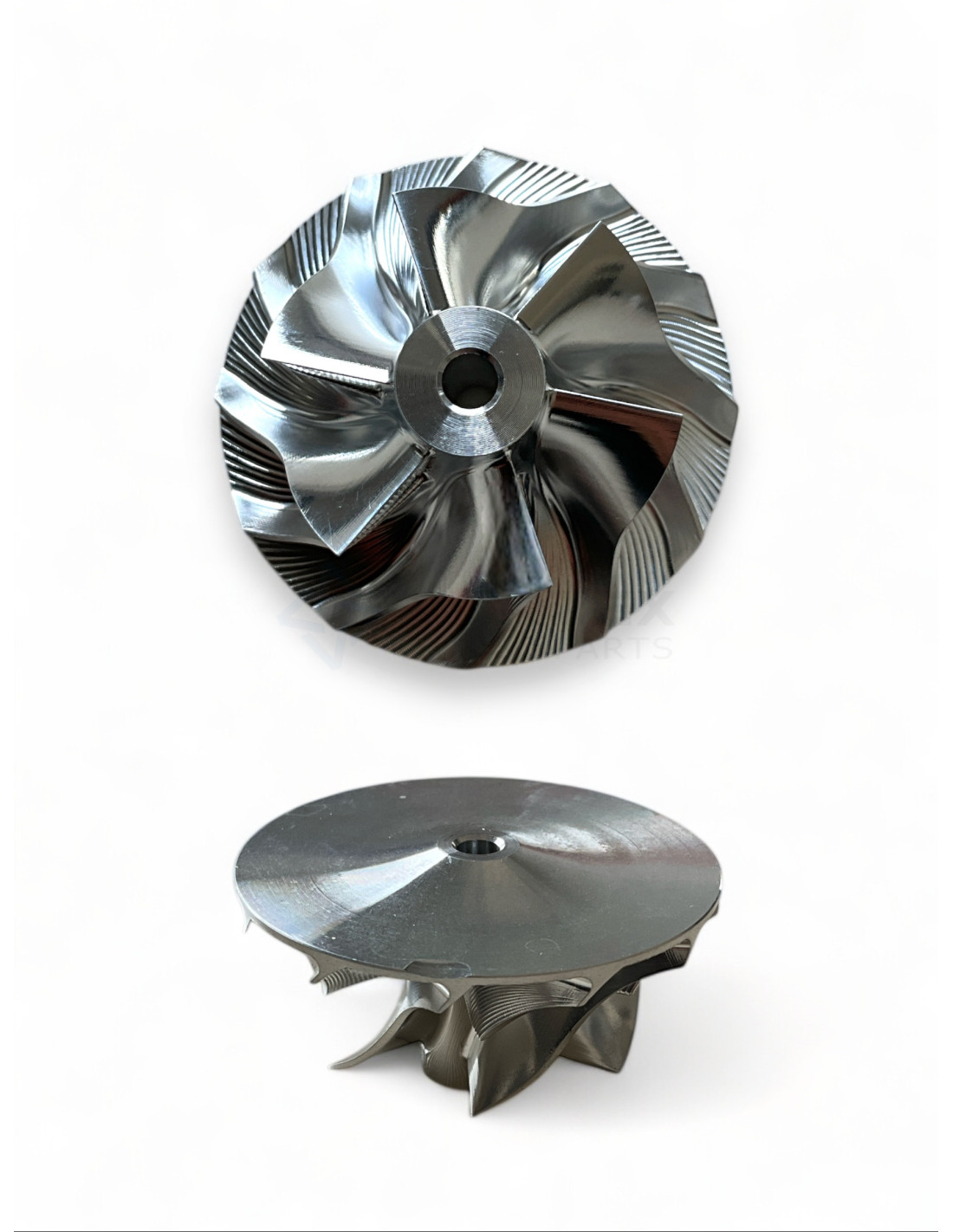

Compressor Wheel CW-M011BR
Compressor Wheel CW-M011BR

Compressor Wheel CW-M011BR

CW-M011BR
New
In Stock (9 Items)
€33.28
Tax included

Compressor Wheel CW-M011BR for turbos 49180-01400, 49180-01405, 49180-01406, 49180-01420, 49180-01424, 49180-01425, 49180-01430, 49180-01431.



CW-M011BR - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-M011BR

CW-M011BR - Compatibility table

Compressor Wheel CW-M011BR - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD02549180-01400--
MitsubishiTD02549180-01405--
MitsubishiTD02549180-01406--
MitsubishiTD02549180-01420--
MitsubishiTD02549180-01424--
MitsubishiTD02549180-01425--
MitsubishiTD04L4bR-03*07WDT-2.749180-0143004E145722G
MitsubishiTD04L4bR-03*07WDT-2.749180-01431--

CW-M011BR - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Deep Superback

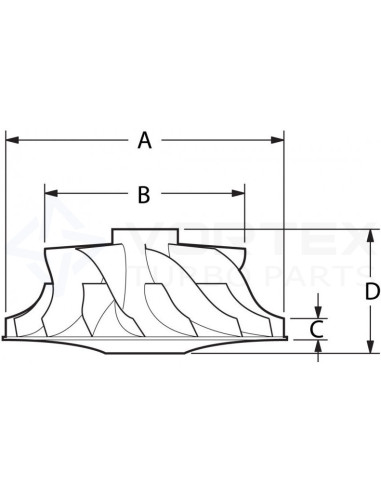

Exducer diameter A (Exducer diameter A): 44.0

Inducer diameter B (Inducer diameter B): 31.3

Tip Height C (Tip Height C): 3.7

Total Height D (Total Height D): 23.4

Billet / Casting (Billet / Casting): Billet

Rotation (Rotation): Reverse

Model (Model): TD02

49180-01400, 49180-01405, 49180-01406, 49180-01420, 49180-01424, 49180-01425, 04E145722G, 49180-01430, 49180-01431

Data updated: 2025-01-03 17:50:04
