Compressor Wheel CW-G081
Compressor Wheel CW-G081

Compressor Wheel CW-G081

CW-G081
New
In Stock (66 Items)
€11.65
Tax included

787571-0001, CW-G081

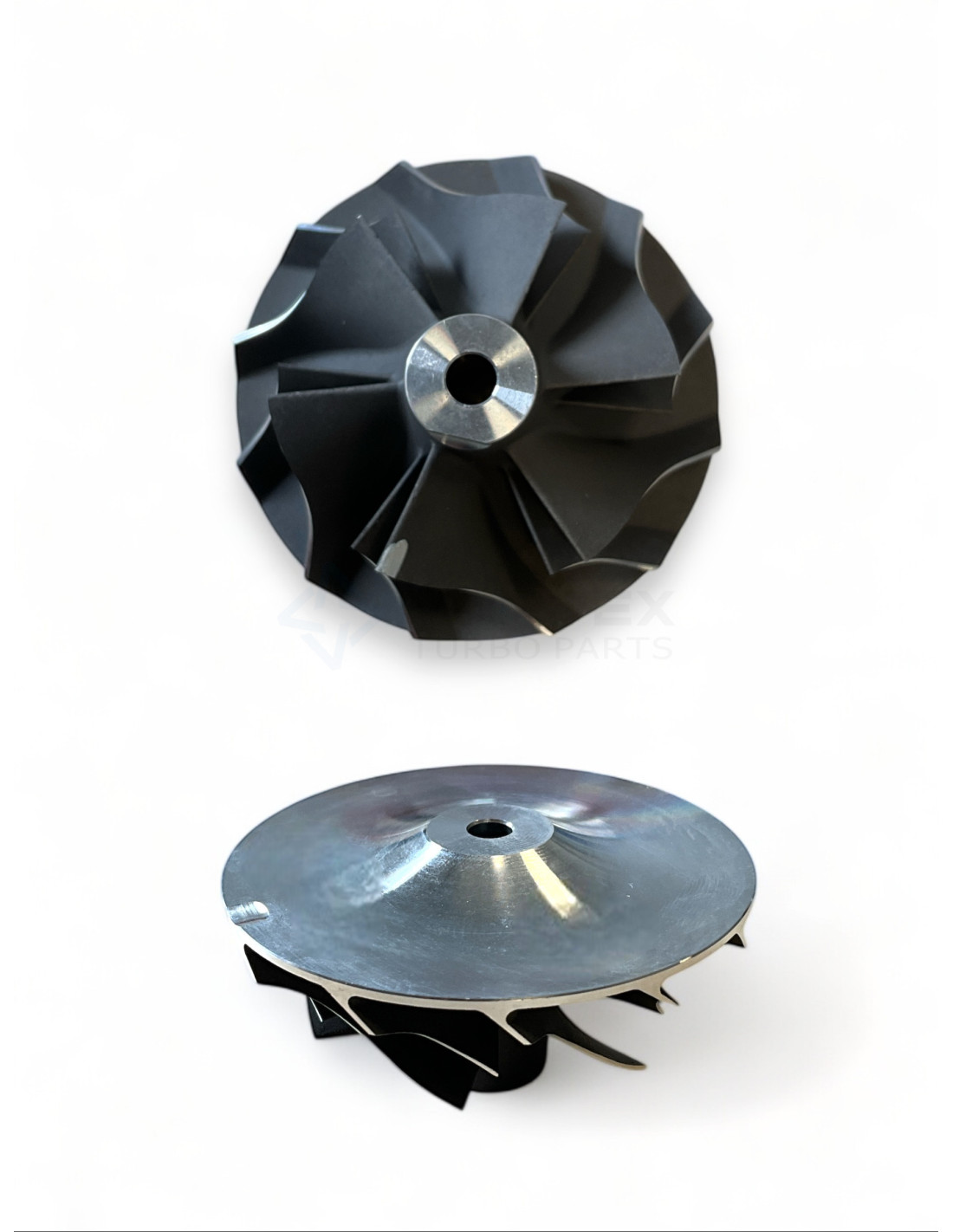

Compressor Wheel CW-G081 for turbos 758351-0003, 758351-0005, 758351-0009, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024.



CW-G081 - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-G081

CW-G081 - Alternative numbers

GHO (Garrett original part number): 787571-0001

CW-G081 - Compatibility table

Compressor Wheel CW-G081 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB2260VK758351-000311657794260, 7794259F
GarrettGTB2260VK758351-000511657794260, 7794259H
GarrettGTB2260VK758351-000911657794260, 7794259K10
GarrettGTB2260VK758351-00137794259L
GarrettGTB2260VK758351-00157794259M12
GarrettGTB2260VK758351-00177794259N13
GarrettGTB2260VK758351-00197794259O14
GarrettGTB2260VK758351-00207794260O14
GarrettGTB2260VK758351-00227794260Q16
GarrettGTB2260VK758351-00247794260R17
GarrettGTB2260VK758352-00137796312P15
GarrettGTB2260VK758352-00177796312P15
GarrettGTB2260VK758352-00217796312P15
GarrettGTB2260VK758352-00227796312P15
GarrettGTB2260VK758352-00247796312P15
GarrettGTB2260VK758352-00267796312P15
GarrettGT2260758353-0005--
GarrettGT2260758353-0007--
GarrettGT2260758353-0009--
GarrettGT2260758353-0011--
GarrettGT2260758353-0013--
GarrettGT2260758353-0015--
GarrettGT2260758353-0017--
GarrettGT2260758353-0019--
GarrettGT2260758353-0020--
GarrettGT2260758353-0022--
GarrettGT2260758353-0024--
GarrettGTB2260V765985-0001--
GarrettGTB2260V765985-0003--
GarrettGTB2260V765985-0005--
GarrettGTB2260V765985-0006--
GarrettGTB2260V765985-0008--
GarrettGTB2260V765985-0010--
GarrettGTB2260VK769705-0001--
GarrettGTB2260VK769909-0009059145722M, 6C1Q6K682EK
GarrettGTB2260VK769909-0010059145722M
GarrettGTB2260VK776469-0004--
GarrettGTB2260VK776470-0001059145722R
GarrettGTB2260VK776470-0003059145722R, 95512302500
GarrettGTB2260VK780591-0002--
GarrettGTB2260VK780591-0003--
GarrettGTB2260VK780592-0002--
GarrettGTB2260VK780592-0003--
GarrettGTB2260VK785966-0002--
GarrettGTB2260VK785966-0003--
GarrettGTB2260VK785966-0004--
GarrettGTB2260VK786632-0002--
GarrettGTB2260VK786632-0003--
GarrettGTB2260VK786632-0004--
GarrettGTB2260VKLR794877-00046420909580, A6420909580
GarrettGTB2260VKLR794877-00066420901786, A6420901786
GarrettGTB2260VKLR794877-00076420901786, A6420901786
GarrettGTB2260VKLR794877-0008A6420901786
GarrettGTB2260VKLR794877-0009A6420901786
GarrettGTB2060V802774-00026420901086, 6420901386, 6420901686, A6420901186
GarrettGTB2060V802774-00046420901086, 6420901386, 6420901686, A6420901186
GarrettGTB2060V802774-00056420901086, 6420901386, 6420901686, A6420901686
GarrettGTB2060V802774-00066420901686, A6420901686
GarrettGTB2060V802774-00076420901686, A6420901686
GarrettGTB2060V802774-00086420901686, A6420901686

CW-G081 - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Deep Superback

Exducer diameter A (Exducer diameter A): 60.0

Inducer diameter B (Inducer diameter B): 44.5

Tip Height C (Tip Height C): 5.2

Total Height D (Total Height D): 32.5

Model (Model): GT15-25

11657794260, 758351-0003, 7794259F, 11657794260, 758351-0005, 7794259H, 11657794260, 758351-0009, 7794259K10, 758351-0013, 7794259L, 758351-0015, 7794259M12, 758351-0017, 7794259N13, 758351-0019, 7794259O14, 758351-0020, 7794260O14, 758351-0022, 7794260Q16, 758351-0024, 7794260R17, 758352-0013, 7796312P15, 758352-0017, 7796312P15, 758352-0021, 7796312P15, 758352-0022, 7796312P15, 758352-0024, 7796312P15, 758352-0026, 7796312P15, 758353-0005, 758353-0007, 758353-0009, 758353-0011, 758353-0013, 758353-0015, 758353-0017, 758353-0019, 758353-0020, 758353-0022, 758353-0024, 765985-0001, 765985-0003, 765985-0005, 765985-0006, 765985-0008, 765985-0010, 769705-0001, 059145722M, 6C1Q6K682EK, 769909-0009, 059145722M, 769909-0010, 776469-0004, 059145722R, 776470-0001, 059145722R, 776470-0003, 95512302500, 780591-0002, 780591-0003, 780592-0002, 780592-0003, 785966-0002, 785966-0003, 785966-0004, 786632-0002, 786632-0003, 786632-0004, 6420909580, 794877-0004, A6420909580, 6420901786, 794877-0006, A6420901786, 6420901786, 794877-0007, A6420901786, 794877-0008, A6420901786, 794877-0009, A6420901786, 6420901086, 6420901386, 6420901686, 802774-0002, A6420901186, 6420901086, 6420901386, 6420901686, 802774-0004, A6420901186, 6420901086, 6420901386, 6420901686, 802774-0005, A6420901686, 6420901686, 802774-0006, A6420901686, 6420901686, 802774-0007, A6420901686, 6420901686, 802774-0008, A6420901686

Data updated: 2024-10-11 17:18:16
