Compressor Wheel CW-G075
Compressor Wheel CW-G075

Compressor Wheel CW-G075

CW-G075
New
In Stock (17 Items)
€10.59
Tax included

436563-0001, CW-G075

Compressor Wheel CW-G075 for turbos 700935-0001, 700935-0003, 700935-0004, 700935-0006, 704361-0004, 704361-0005, 704361-0006, 707114-0001, 711009-0001, 711009-0002.

See below for more info.

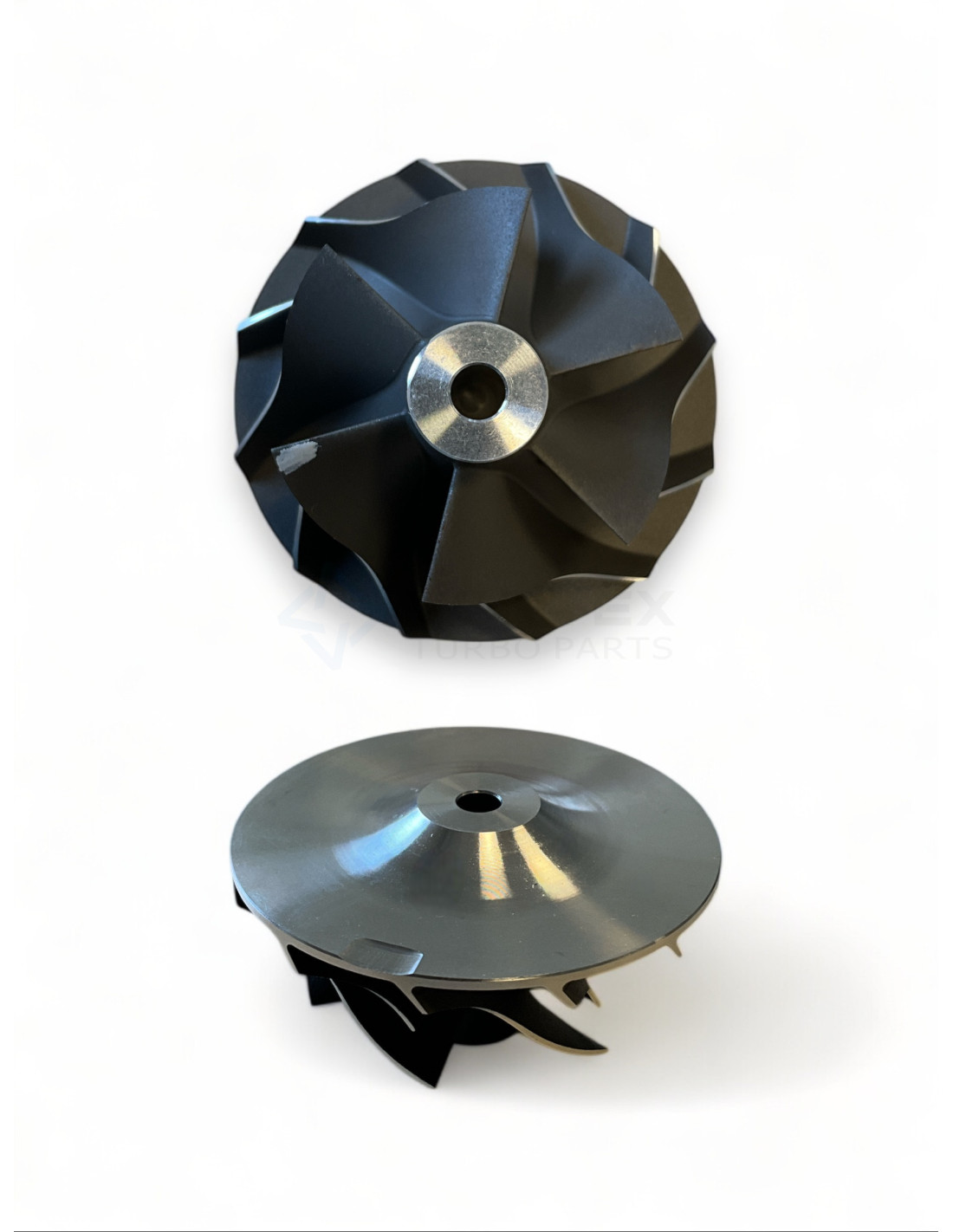

CW-G075 - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-G075

CW-G075 - Alternative numbers

GHO (Garrett original part number): 436563-0001

CW-G075 - Compatibility table

Compressor Wheel CW-G075 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2056V700935-000111657785992, 11657785993, 7785991B
GarrettGT2056V700935-00037785993B
GarrettGT2056V700935-000411657785992, 11657785993, 7785991C03
GarrettGT2056V700935-00067785993C03
GarrettGT2056V704361-00042248834E
GarrettGT2056V704361-000522499519
GarrettGT2056V704361-000622499509
GarrettGT2256V707114-0001500379251
GarrettGT2256V711009-0001A6120960499
GarrettGT2256V711009-0002A6120960499
GarrettGT2256V712541-00017785838F
GarrettGT2256V712541-00027785839F
GarrettGT2256V712541-00037785840F
GarrettGT2256V712541-00047785838G04
GarrettGT2256V712541-00057785839G04, LR018264, LR06705
GarrettGT2256V712541-00067785840G04
GarrettGTA2256V712541-00077785839G04, LR018264, LR06705
GarrettGT2256V715568-0001--
GarrettGT2256V715568-0002--
GarrettGT2556V(S2)721204-0001--
GarrettGT1852V727463-0001--
GarrettGT1852V727463-0002--
GarrettGT1852V727463-0003--
GarrettGT2056S742289-0001--
GarrettGT2056S742289-0002--
GarrettGT2056S742289-0003--
GarrettGT2056S742289-0004--
GarrettGT2056S742289-0005--
GarrettGTB2056LV750510-0001--
GarrettGT2056S751578-0001504071574
GarrettGT2056S751578-0002504071573
GarrettGT2256V751758-0001--
GarrettGT20V763263-0002--

CW-G075 - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Deep Superback

Exducer diameter A (Exducer diameter A): 56.0

Inducer diameter B (Inducer diameter B): 41.6

Tip Height C (Tip Height C): 4.6

Total Height D (Total Height D): 30.8

Model (Model): GT15-25

Data updated: 2022-11-26 22:03:03
