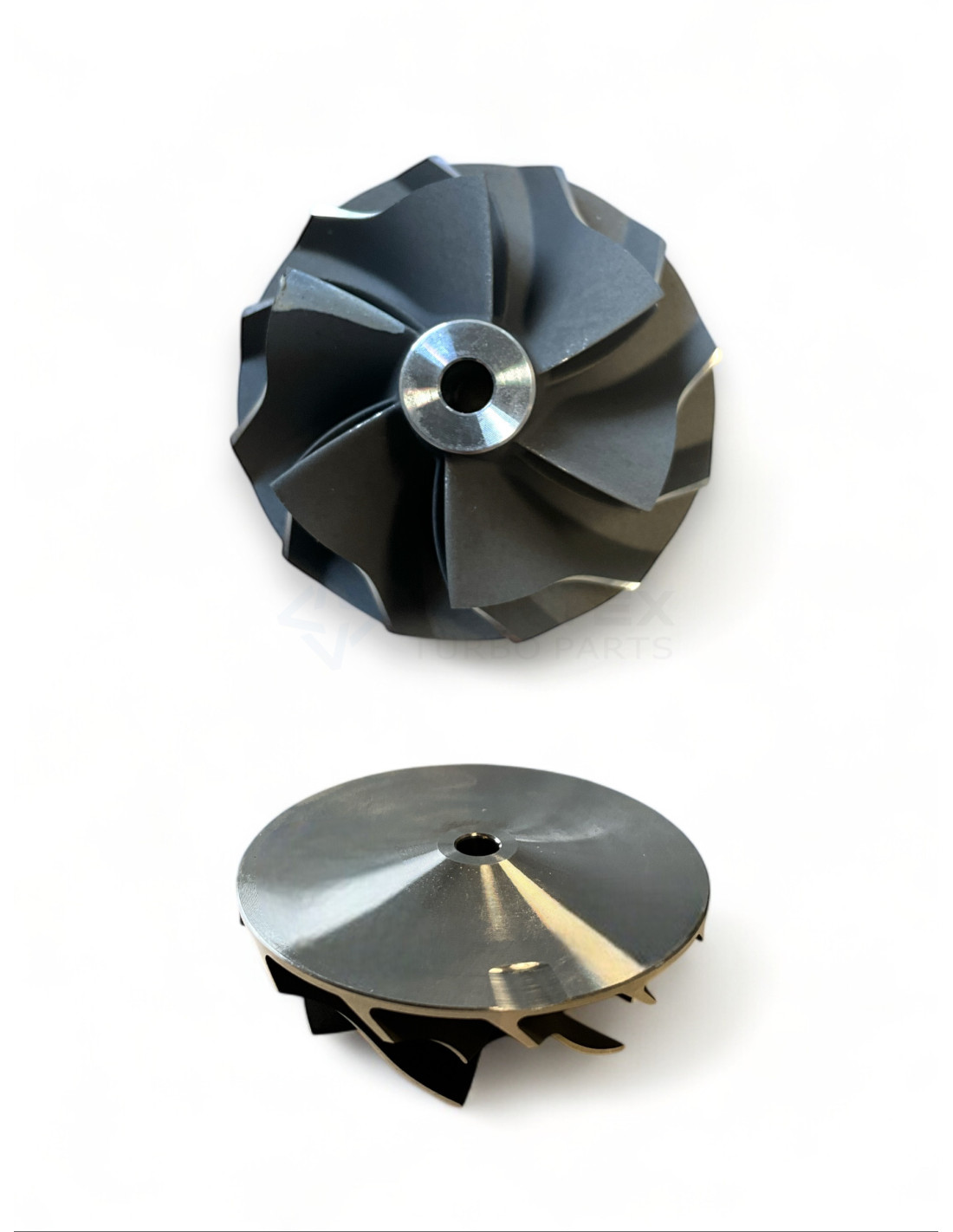

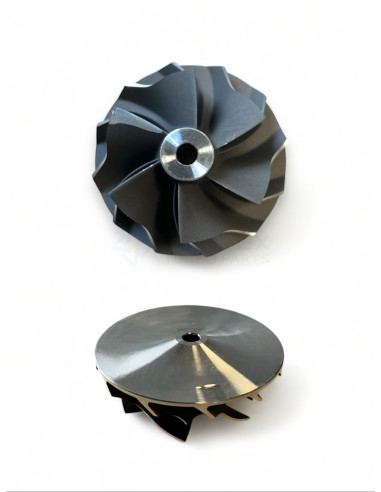

Compressor Wheel CW-M002
Compressor Wheel CW-M002

Compressor Wheel CW-M002

CW-M002
New
Last items in stock (4 Items)
€10.59
Tax included

Compressor Wheel CW-M002 for turbos 49131-05000, 49131-05001, 49131-05010, 49131-05011, 49131-05050, 49131-05060, 49131-05061, 49131-05100, 49131-05101, 49131-05110.



CW-M002 - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-M002

CW-M002 - Compatibility table

Compressor Wheel CW-M002 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD0349131-05000--
MitsubishiTD0349131-05001--
MitsubishiTD0349131-05010--
MitsubishiTD0349131-05011--
MitsubishiTD03L-08G-4.849131-05050--
MitsubishiTD03L-08G-4.849131-05060--
MitsubishiTD03L-08G-4.849131-05061--
MitsubishiTD0349131-05100--
MitsubishiTD0349131-05101--
MitsubishiTD0349131-05110--
MitsubishiTD0349131-05111--
MitsubishiTD0349131-05150--
MitsubishiTD0349131-05151--
MitsubishiTD0349131-05160--
MitsubishiTD0349131-05161--
MitsubishiTD02549173-02401--
MitsubishiTD02549173-02410--
MitsubishiTD02549173-02412--

CW-M002 - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Superback

Exducer diameter A (Exducer diameter A): 44.0

Inducer diameter B (Inducer diameter B): 34.0

Tip Height C (Tip Height C): 4.8

Total Height D (Total Height D): 21.6

Model (Model): TD02

49131-05000, 49131-05001, 49131-05010, 49131-05011, 49131-05050, 49131-05060, 49131-05061, 49131-05100, 49131-05101, 49131-05110, 49131-05111, 49131-05150, 49131-05151, 49131-05160, 49131-05161, 49173-02401, 49173-02410, 49173-02412

Data updated: 2025-02-11 16:57:23
