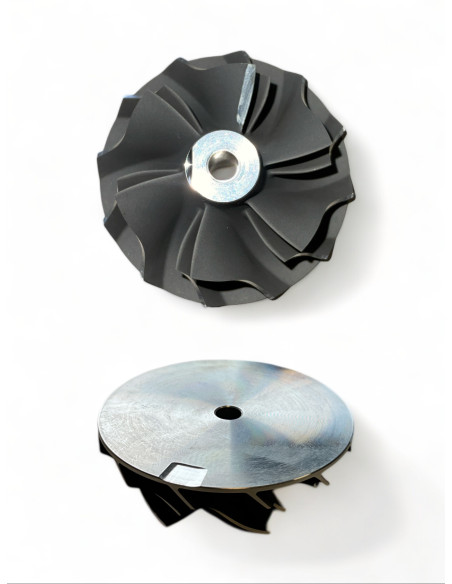

Compressor Wheel CW-M021
Compressor Wheel CW-M021

Compressor Wheel CW-M021

CW-M021
New
Last items in stock (4 Items)
€11.50
Tax included

49177-43300, CW-M021

Compressor Wheel CW-M021 for turbos 49177-01810, 49177-02500, 49177-02501, 49177-02502, 49177-02503, 49177-02510, 49177-02511, 49177-02512, 49177-02513, 49177-04600.



CW-M021 - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-M021

CW-M021 - Alternative numbers

MHO (Mitsubishi original part number): 49177-43300

CW-M021 - Compatibility table

Compressor Wheel CW-M021 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD04-11B-449177-01810--
MitsubishiTD04-11G-449177-02500--
MitsubishiTD0449177-02501--
MitsubishiTD0449177-02502--
MitsubishiTD0449177-02503MR355224
MitsubishiTD0449177-02510--
MitsubishiTD0449177-02511--
MitsubishiTD0449177-02512--
MitsubishiTD0449177-025132820042540, MR355225
MitsubishiTDO449177-04600--
MitsubishiTDO449177-04610--
MitsubishiTD0449177-0640011652243043, 11652243396, 11652244113, 11652244347
MitsubishiTD0449177-06410--
MitsubishiTD04-11G-449177-06420860014, 860026, 90509656, 90541688
MitsubishiTD04-11G-449177-064222244963, 2245839, 2246672
MitsubishiTD0449177-06430--
MitsubishiTD0449177-06490--
MitsubishiTD04-11G-549177-0650011652243043, 11652243396, 11652244113, 11652244347
MitsubishiTD04-11G-549177-06501--
MitsubishiTD04-11G-549177-0651011652243043, 11652243396, 11652244113, 11652244347

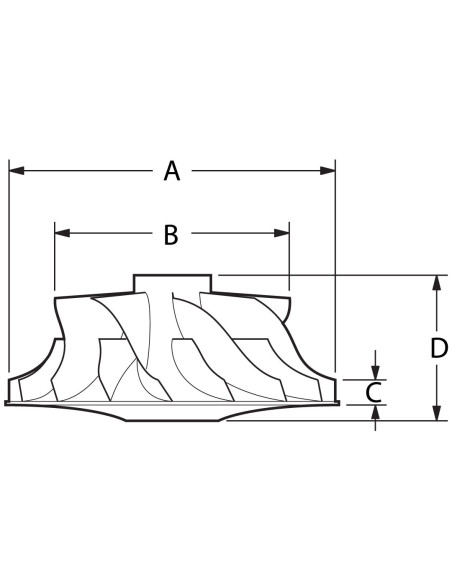

CW-M021 - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Flatback

Exducer diameter A (Exducer diameter A): 49.0

Inducer diameter B (Inducer diameter B): 38.0

Tip Height C (Tip Height C): 4.9

Total Height D (Total Height D): 20.0

Model (Model): TD04

49177-01810, 49177-02500, 49177-02501, 49177-02502, 49177-02503, MR355224, 49177-02510, 49177-02511, 49177-02512, 2820042540, 49177-02513, MR355225, 49177-04600, 49177-04610, 11652243043, 11652243396, 11652244113, 11652244347, 49177-06400, 49177-06410, 49177-06420, 860014, 860026, 90509656, 90541688, 2244963, 2245839, 2246672, 49177-06422, 49177-06430, 49177-06490, 11652243043, 11652243396, 11652244113, 11652244347, 49177-06500, 49177-06501, 11652243043, 11652243396, 11652244113, 11652244347, 49177-06510
