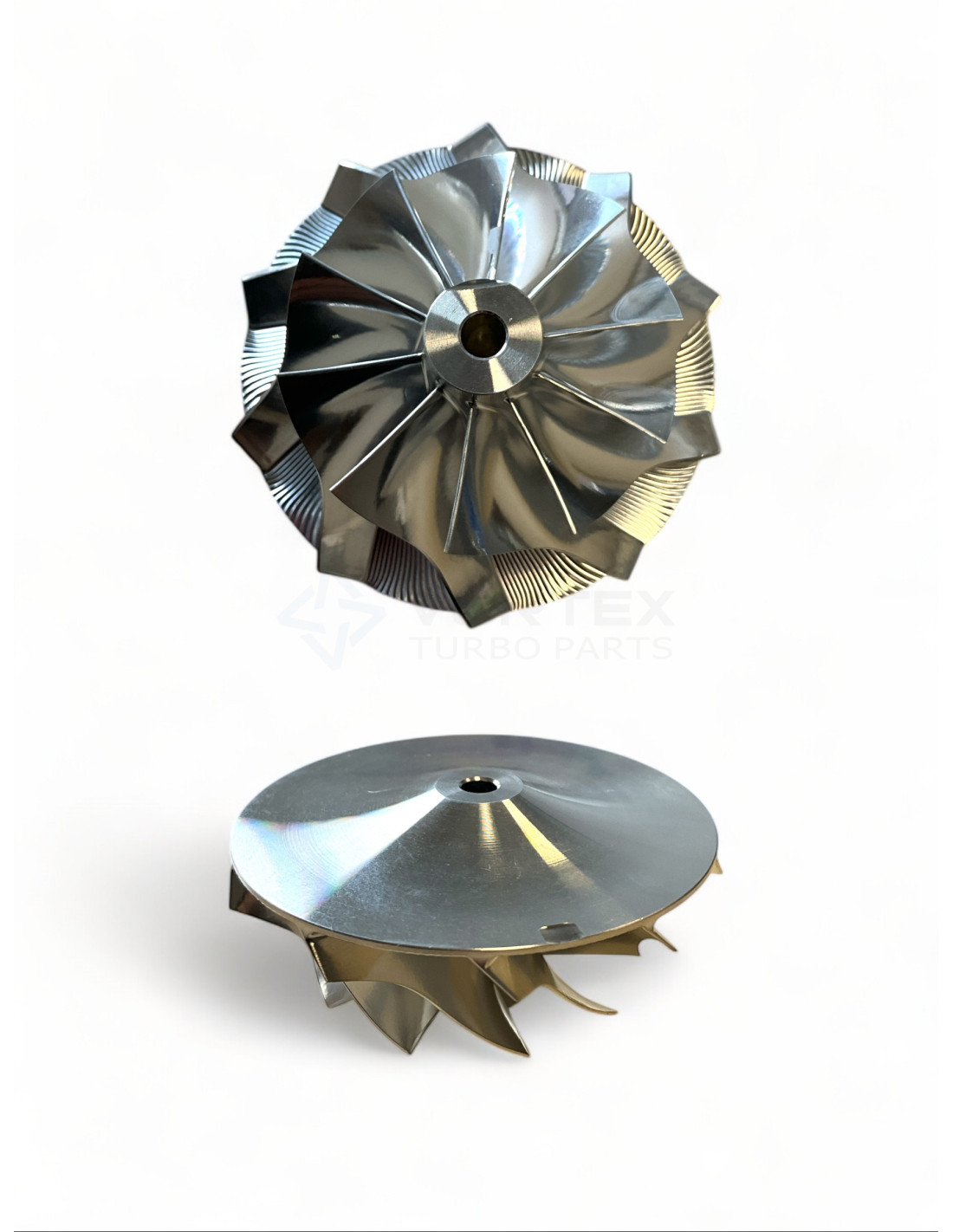

Compressor Wheel CW-G097
Compressor Wheel CW-G097B
Compressor Wheel CW-G097
Compressor Wheel CW-G097B

Compressor Wheel CW-G097B

CW-G097B
New
Please login to see prices and stock

Compressor Wheel CW-G097B for turbos 805713-0004-GT30, 805713-0007-GT30, 805713-0008-GT30, 805713-0009-GT30, 805714-0004(GT30), 805714-0007(GT30), 805714-0008(GT30), 805714-0009(GT30), 825965-0001.



CW-G097B - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-G097B

CW-G097B - Compatibility table

Compressor Wheel CW-G097B - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT3067S805713-0004-GT30--
GarrettGT3067S805713-0007-GT30--
GarrettGT3067S805713-0008-GT30--
GarrettGT3067S805713-0009-GT30--
GarrettGT3067S805714-0004(GT30)--
GarrettGT3067S805714-0007(GT30)--
GarrettGT3067S805714-0008(GT30)--
GarrettGT3067S805714-0009(GT30)--
GarrettGT3067S825965-0001--

CW-G097B - Part Properties

Blades (Compressor wheel blades count): 10

Trim (Compressor wheel trim): Deep Superback

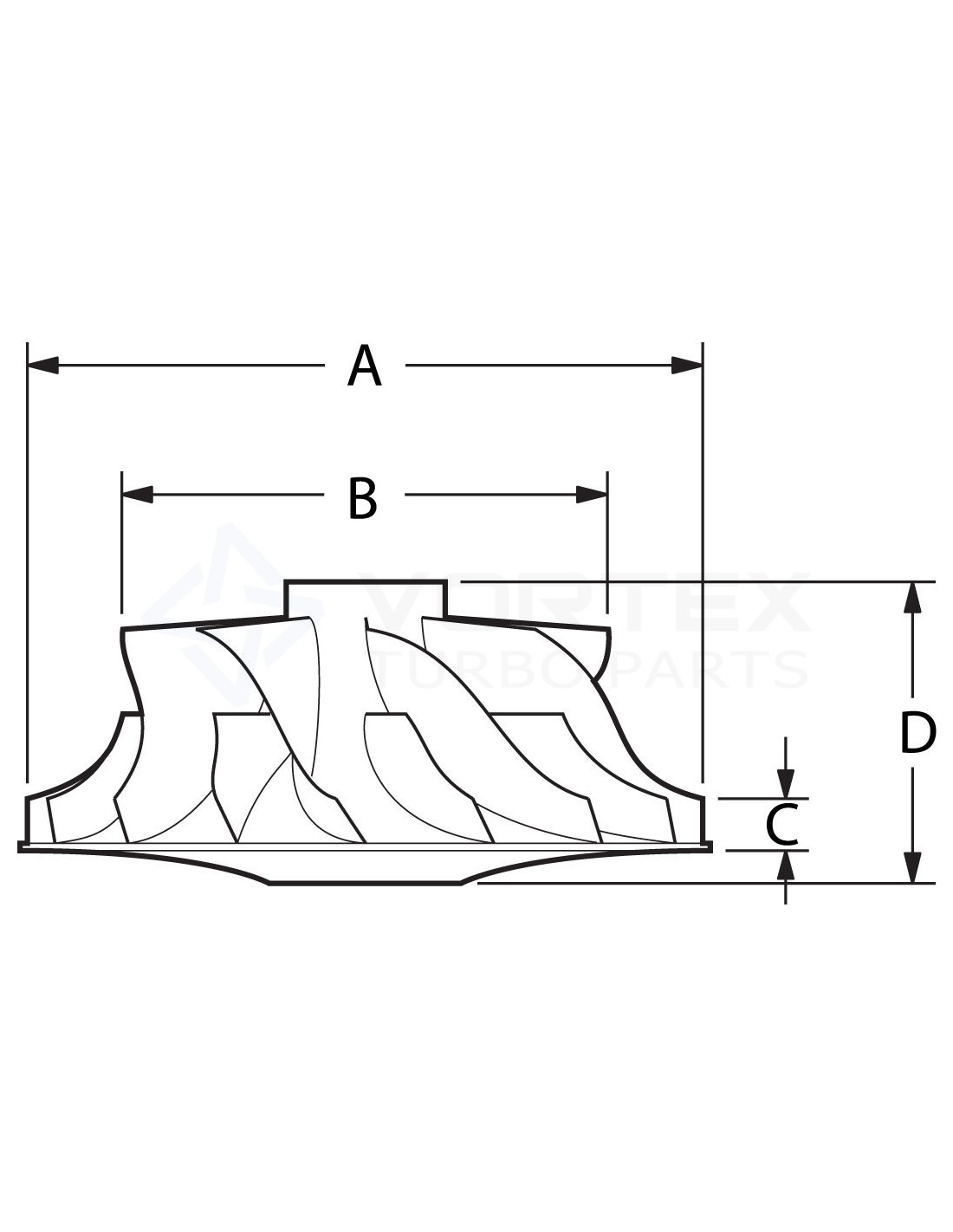

Exducer diameter A (Exducer diameter A): 67.3

Inducer diameter B (Inducer diameter B): 49.7

Tip Height C (Tip Height C): 6.4

Total Height D (Total Height D): 36.2

Billet / Casting (Billet / Casting): Billet

Model (Model): GT30

805713-0004-GT30, 805713-0007-GT30, 805713-0008-GT30, 805713-0009-GT30, 805714-0004(GT30), 805714-0007(GT30), 805714-0008(GT30), 805714-0009(GT30), 825965-0001

Data updated: 2025-07-10 14:25:56
