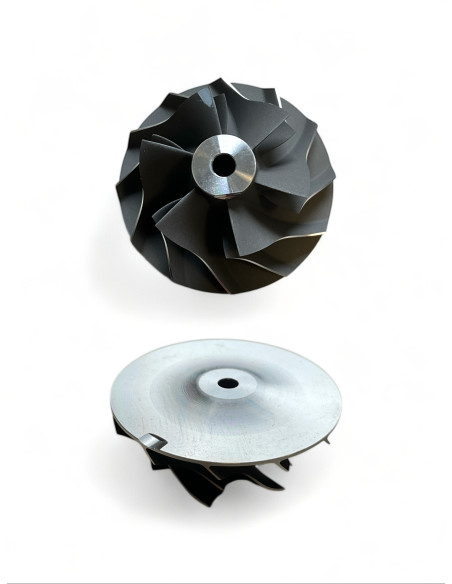

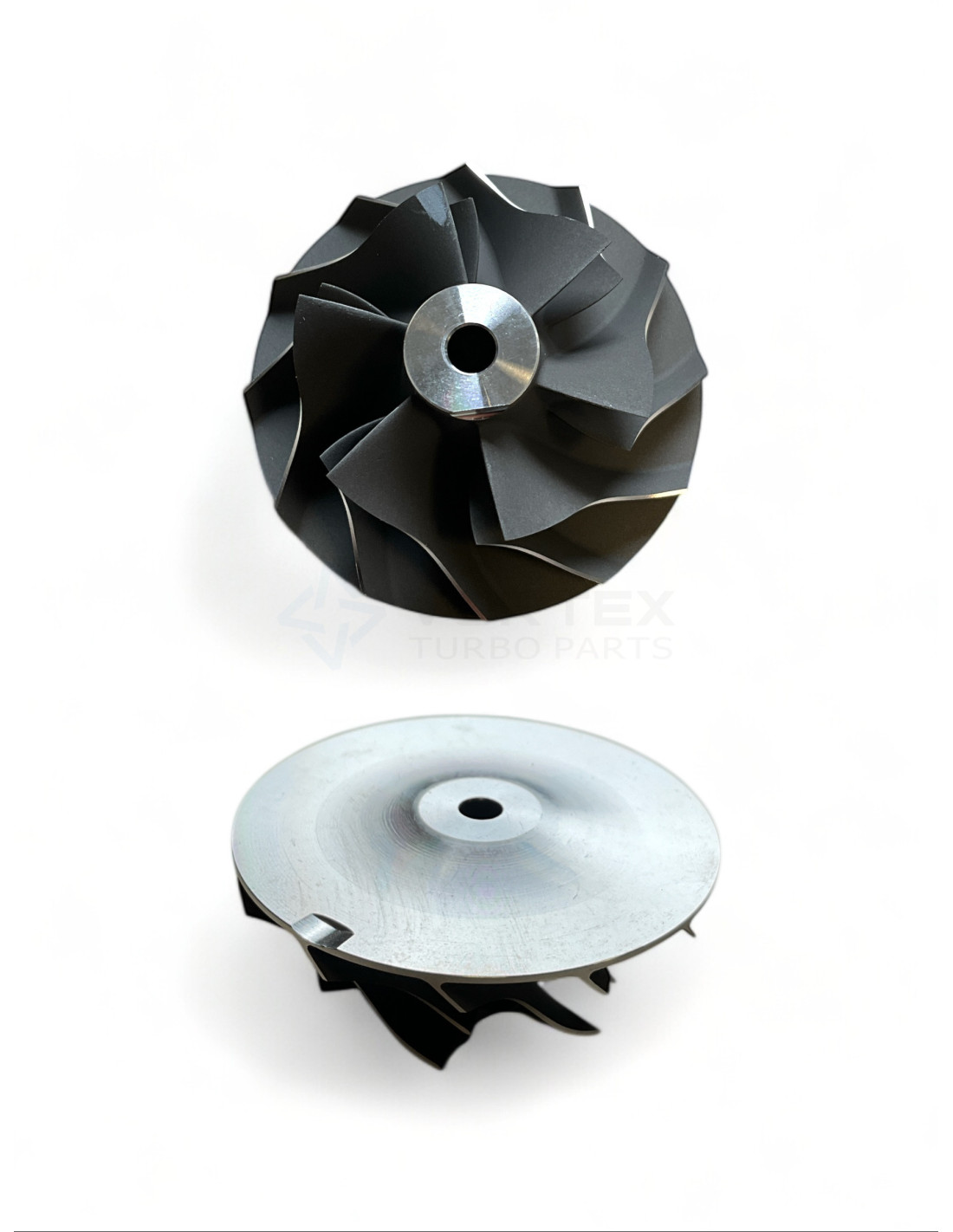

Compressor Wheel CW-M033
Compressor Wheel CW-M033

Compressor Wheel CW-M033

CW-M033
New
In Stock (27 Items)
€11.50
Tax included

Compressor Wheel CW-M033 for turbos 49189-02720, 49189-02721, 49189-02730, 49477-01000, 49477-01002, 49477-01003, 49477-01012, 49477-01013, 49477-01100, 49477-01101.

See below for more info.



CW-M033 - Compressor Wheel

Brand: Vortex

Vortex Reference: CW-M033

CW-M033 - Compatibility table

Compressor Wheel CW-M033 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD04L449189-02720--
MitsubishiTD04L449189-02721--
MitsubishiTD04L449189-02730--
MitsubishiTD04L449477-01000--
MitsubishiTD04L449477-01002--
MitsubishiTD04L449477-01003--
MitsubishiTD04L449477-01012--
MitsubishiTD04L449477-01013--
MitsubishiTD04L449477-01100--
MitsubishiTD04L449477-01101--
MitsubishiTD04L449477-01102--
MitsubishiTD04L449477-01103--
MitsubishiTD04L449477-01104--
MitsubishiTD04L449477-01105--
MitsubishiTD04L449477-01114--
MitsubishiTD04L449477-01115--
MitsubishiTD04L-11TK3s-VG49477-01200LR022358
MitsubishiTD04L-11TK3s-VG49477-01202LR038309
MitsubishiTD04L-11TK3s-VG49477-01203LR038322
MitsubishiTD04L-11TK3s-VG49477-01204LR049592
MitsubishiTD04L-11TK3s-VG49477-01213LR065510

CW-M033 - Part Properties

Blades (Compressor wheel blades count): 6/6

Trim (Compressor wheel trim): Superback

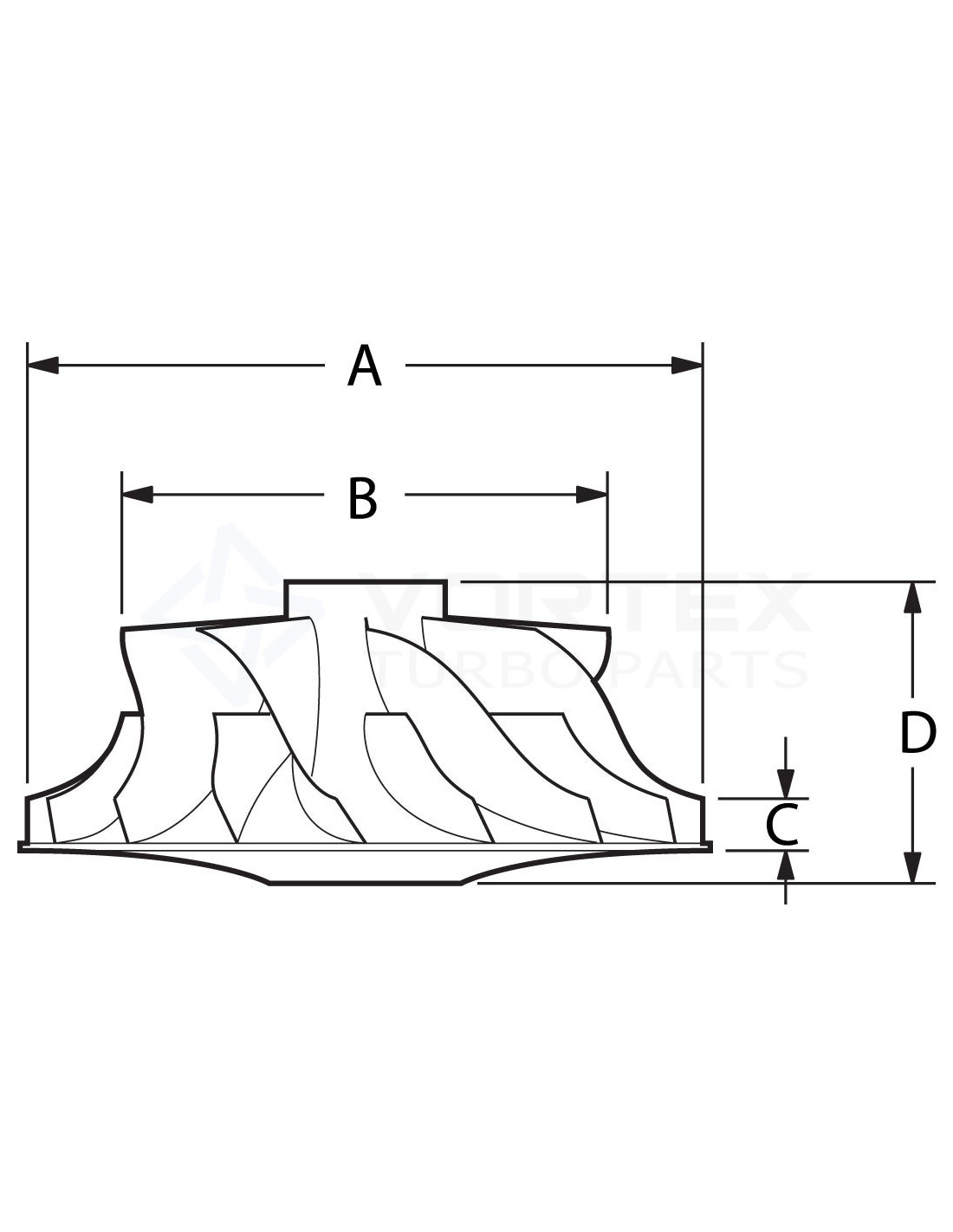

Exducer diameter A (Exducer diameter A): 56.0

Inducer diameter B (Inducer diameter B): 39.0

Tip Height C (Tip Height C): 4.5

Total Height D (Total Height D): 26.2

Model (Model): TD04

Data updated: 2022-12-12 20:26:37
