Compressor Wheel CW-G020BR
CW-G020BR
Please login to see prices and stock
Compressor Wheel CW-G020BR for turbos 817808-0011, 817808-0013, 817808-0015, 830233-0005, 830233-0007, 830233-0013, 830233-0015.
CW-G020BR - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-G020BR
CW-G020BR - Compatibility table
| Compressor Wheel CW-G020BR - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | MGT1446S | 817808-0011 | -- |
| Garrett | MGT1446LKSZ | 817808-0013 | -- |
| Garrett | MGT1446LKSZ | 817808-0015 | -- |
| Garrett | MGT1446S | 830233-0005 | -- |
| Garrett | MGT1446S | 830233-0007 | -- |
| Garrett | MGT1446LKSZ | 830233-0013 | -- |
| Garrett | MGT1446LKSZ | 830233-0015 | -- |
CW-G020BR - Part Properties
Blades (Compressor wheel blades count): 9
Trim (Compressor wheel trim): Deep Superback

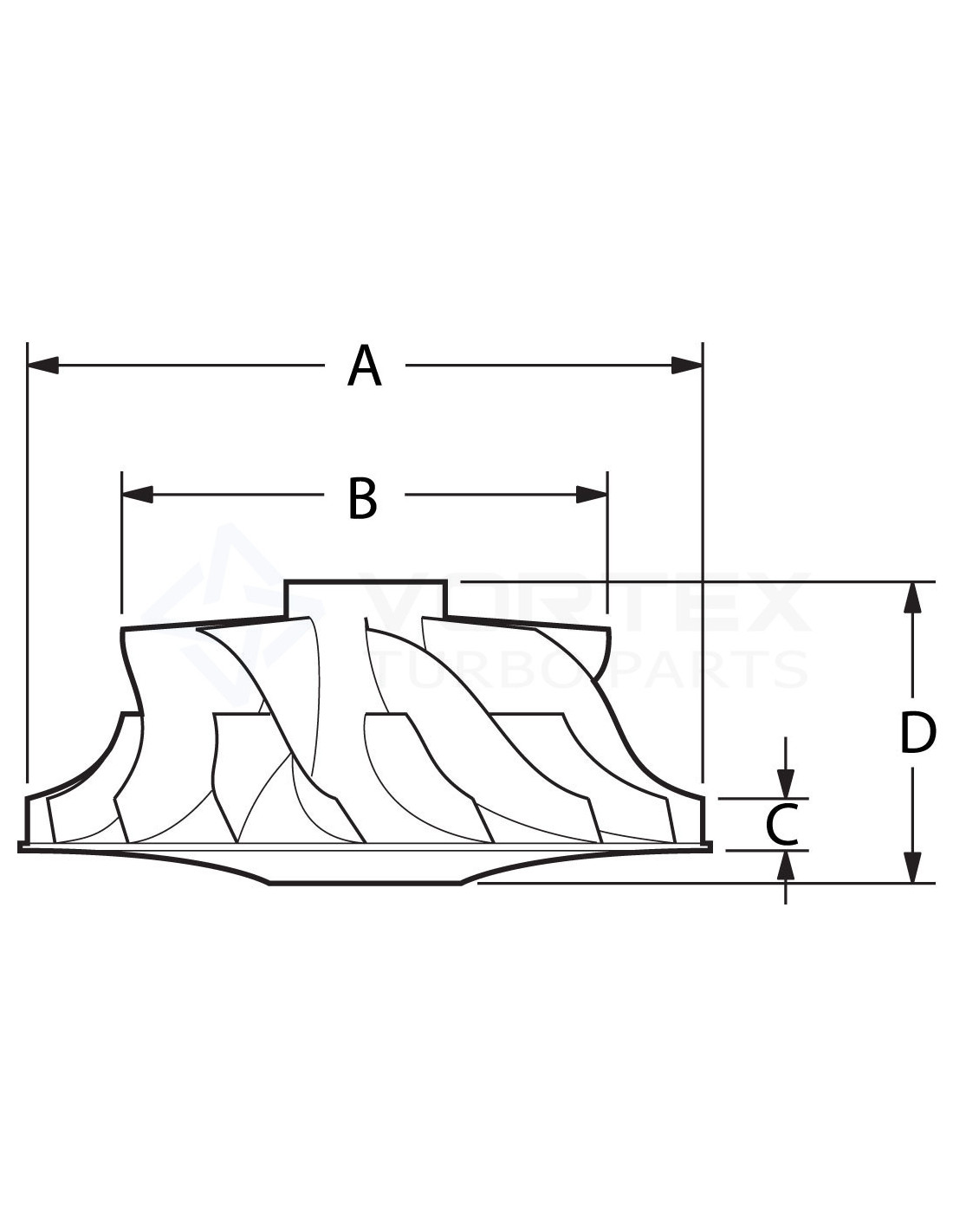

Exducer diameter A (Exducer diameter A): 46.0
Inducer diameter B (Inducer diameter B): 35.6
Tip Height C (Tip Height C): 4.0
Total Height D (Total Height D): 25.0
Billet / Casting (Billet / Casting): Billet
Rotation (Rotation): Reverse
Model (Model): GT14
817808-0011, 817808-0013, 817808-0015, 830233-0005, 830233-0007, 830233-0013, 830233-0015
Data updated: 2025-07-10 13:44:13
