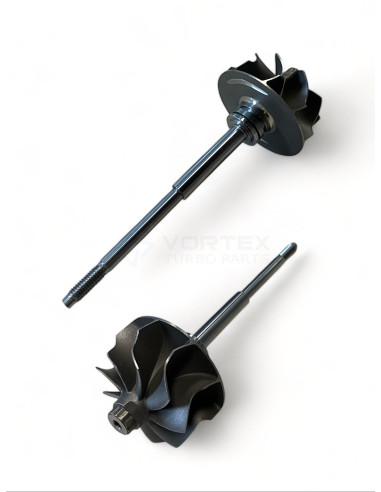

Shaft and wheel SW-M024
Shaft and wheel SW-M024

Shaft and wheel SW-M024

SW-M024
New
In Stock (33 Items)
€36.18
Tax included

Shaft and wheel SW-M024 for turbos 49335-01000, 49335-01001, 49335-01002, 49335-01003, 49335-01010, 49335-01011, 49335-01012, 49335-01013, 49335-01014, 49335-01100.



SW-M024 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-M024

SW-M024 - Compatibility table

Shaft and wheel SW-M024 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTF03549335-01000--
MitsubishiTF03549335-01001--
MitsubishiTF03549335-01002--
MitsubishiTF03549335-01003--
MitsubishiTF03549335-01010--
MitsubishiTF03549335-01011--
MitsubishiTF03549335-01012--
MitsubishiTF03549335-01013--
MitsubishiTF03549335-01014--
MitsubishiTF03549335-01100--
MitsubishiTF03549335-01101--
MitsubishiTF03549335-01102--
MitsubishiTF03549335-01103--
MitsubishiTF03549335-01120--
MitsubishiTF03549335-01121--
MitsubishiTF03549335-01122--
MitsubishiTF03549335-01123--
MitsubishiTF03549335-01300--
MitsubishiTF03549335-01301--

SW-M024 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 43.2

Exducer Diameter B (Exducer Diameter B): 37.7

Tip Height C (Tip Height C): 7.6

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.0

Shaft Length (mm) (Shaft Length (mm)): 93.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): TF035

49335-01000, 49335-01001, 49335-01002, 49335-01003, 49335-01010, 49335-01011, 49335-01012, 49335-01013, 49335-01014, 49335-01100, 49335-01101, 49335-01102, 49335-01103, 49335-01120, 49335-01121, 49335-01122, 49335-01123, 49335-01300, 49335-01301
