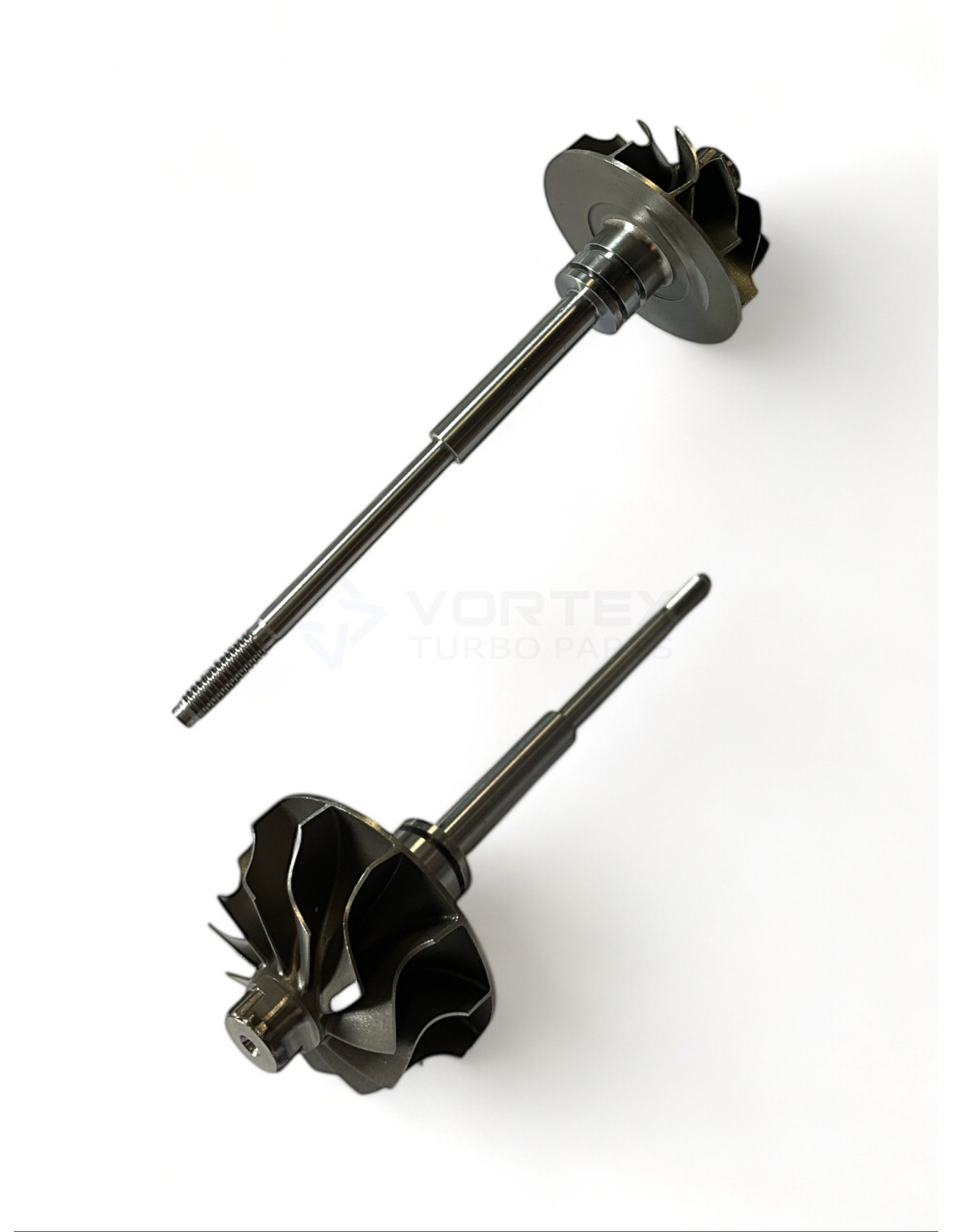

Shaft and wheel SW-M003
SW-M003
New
In Stock
(14 Items)
€39.33
Tax included
Shaft and wheel SW-M003 for turbos 49173-07600, 49173-07610, 49173-07620, 49173-07621, 49173-07626, 49373-01001, 49373-01002, 49373-01003, 49373-01004, 49373-01005.
SW-M003 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-M003
SW-M003 - Compatibility table
| Shaft and wheel SW-M003 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Mitsubishi | TD02 | 49173-07600 | -- |
| Mitsubishi | TD02 | 49173-07610 | -- |
| Mitsubishi | TD02 | 49173-07620 | -- |
| Mitsubishi | TD02 | 49173-07621 | -- |
| Mitsubishi | TD02 | 49173-07626 | -- |
| Mitsubishi | TD025 | 49373-01001 | 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L |
| Mitsubishi | TD025 | 49373-01002 | 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L |
| Mitsubishi | TD025 | 49373-01003 | 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L |
| Mitsubishi | TD025 | 49373-01004 | 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L |
| Mitsubishi | TD025 | 49373-01005 | 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L |
SW-M003 - Part Properties
Blades (Shaft blades count): 11
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 37.1
Exducer Diameter B (Exducer Diameter B): 29.5
Tip Height C (Tip Height C): 5.5
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 83.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Single
Model (Model): TD025
49173-07600, 49173-07610, 49173-07620, 49173-07621, 49173-07626, 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L, 49373-01001, 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L, 49373-01002, 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L, 49373-01003, 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L, 49373-01004, 03C145701J, 03C145701N, 03C145702A, 03C145702C, 03C145702L, 49373-01005
Data updated: 2025-02-11 16:56:35
