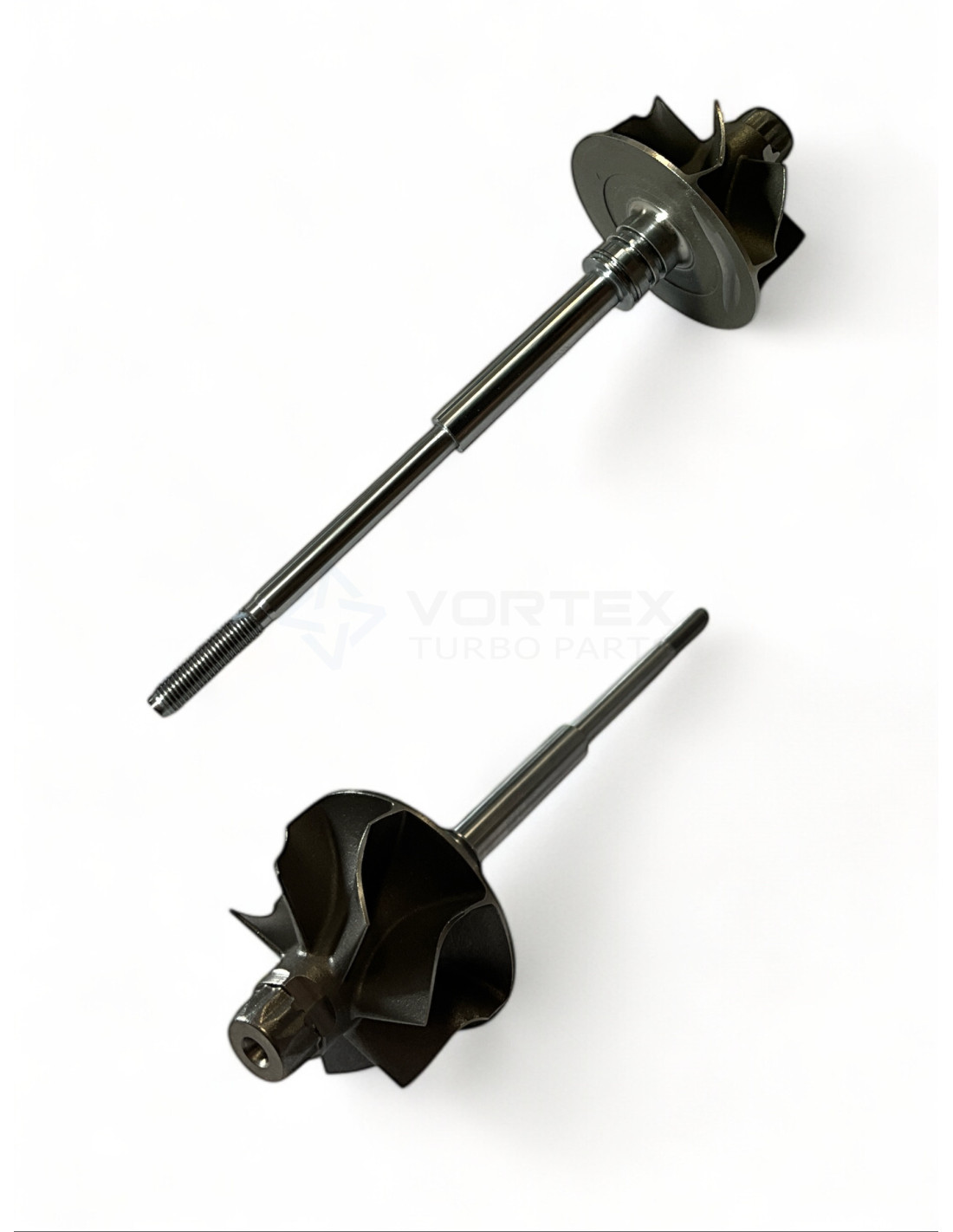

Shaft and wheel SW-B002
SW-B002
Please login to see prices and stock
Shaft and wheel SW-B002 for turbos 10009700313-B01, 10009700384-B01, 16359700002, 16359700012, 16359700016, 16359700018, 16359700022, 16359700023, 16359700024, 16359700033.
SW-B002 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-B002
SW-B002 - Compatibility table
| Shaft and wheel SW-B002 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | B01 | 10009700313-B01 | -- |
| BorgWarner | B01 | 10009700384-B01 | -- |
| BorgWarner | B01V | 16359700002 | 04L253016F |
| BorgWarner | B01V | 16359700012 | 04L253016F |
| BorgWarner | B01 | 16359700016 | -- |
| BorgWarner | B01 | 16359700018 | -- |
| BorgWarner | B01 | 16359700022 | -- |
| BorgWarner | B01 | 16359700023 | -- |
| BorgWarner | B01V | 16359700024 | -- |
| BorgWarner | B01 | 16359700033 | -- |
| BorgWarner | B01V | 16359700040 | 04L253016F |
| BorgWarner | B01 | 16359700056 | -- |
| BorgWarner | B01 | 16359700072 | -- |
SW-B002 - Part Properties
Blades (Shaft blades count): 7
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 35.1
Exducer Diameter B (Exducer Diameter B): 30.55
Tip Height C (Tip Height C): 5.2
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1
Shaft Length (mm) (Shaft Length (mm)): 83.5
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): B01
16359700040, 16359700024, 16359700012, 16359700002, 10009700313-B01, 10009700384-B01, 04L253016F, 1635 970 0002, 04L253016F, 1635 970 0012, 16359700016, 16359700018, 16359700022, 16359700023, 03N145703R, 1635 970 0024, 16359700033, 04L253016F, 1635 970 0040, 16359700056, 16359700072
Data updated: 2025-08-28 12:53:05
