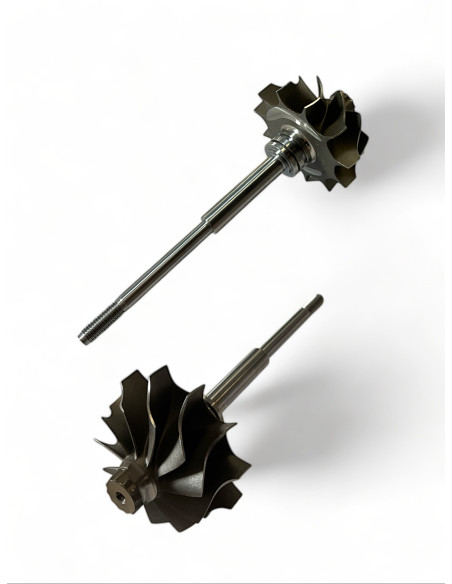

Shaft and wheel SW-M009
SW-M009
New
In Stock
(12 Items)
€33.03
Tax included
Shaft and wheel SW-M009 for turbos 49377-07421, 49377-07422, 49377-07423, 49377-07424, 49377-07426, 49377-07430, 49377-07460, 49377-07530, 49377-07531, 49377-07535.
SW-M009 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-M009
SW-M009 - Compatibility table
| Shaft and wheel SW-M009 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Mitsubishi | TD04 | 49377-07421 | 076145701C, 076145701D, 076145701G, 076145701J, 076145701K, 076145702B |
| Mitsubishi | TD04 | 49377-07422 | 076145701C, 076145701D, 076145701G, 076145701J, 076145701K, 076145702B |
| Mitsubishi | TD04 | 49377-07423 | 076145701C, 076145701D, 076145701G, 076145701J, 076145701K, 076145702B |
| Mitsubishi | TD04L-4T-10TK31SS | 49377-07424 | 076145701C, 076145701D, 076145701G, 076145701J, 076145701K, 076145702B |
| Mitsubishi | TD04L-4T-10TK31SS | 49377-07426 | 076145701C, 076145701D, 076145701G, 076145701J, 076145701K, 076145702B |
| Mitsubishi | TD04 | 49377-07430 | 076145701C, 076145701D, 076145701G, 076145701J, 076145701K, 076145702B |
| Mitsubishi | TD04 | 49377-07460 | 076145701P |
| Mitsubishi | TD04 | 49377-07530 | 076145701G, 076145701Q, 076145702C |
| Mitsubishi | TD04 | 49377-07531 | 076145701G, 076145701Q, 076145702C |
| Mitsubishi | TD04M4t-10TK31SS-VG | 49377-07535 | 076145701G, 076145701Q, 076145702C |

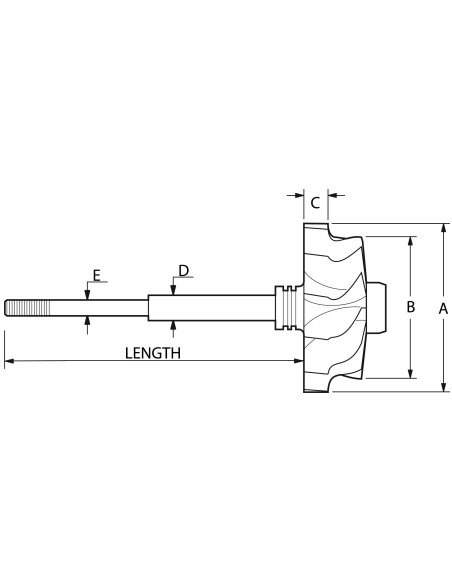

SW-M009 - Part Properties
Blades (Shaft blades count): 11
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 47.0
Exducer Diameter B (Exducer Diameter B): 38.4
Tip Height C (Tip Height C): 7.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.5
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.0
Shaft Length (mm) (Shaft Length (mm)): 93.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): TD04
076145701C, 076145701D, 076145701G, 076145701J, 076145701K, 076145702B, 49377-07421, 076145701C, 076145701D, 076145701G, 076145701J, 076145701K, 076145702B, 49377-07422, 076145701C, 076145701D, 076145701G, 076145701J, 076145701K, 076145702B, 49377-07423, 076145701C, 076145701D, 076145701G, 076145701J, 076145701K, 076145702B, 49377-07424, 076145701C, 076145701D, 076145701G, 076145701J, 076145701K, 076145702B, 49377-07426, 076145701C, 076145701D, 076145701G, 076145701J, 076145701K, 076145702B, 49377-07430, 076145701P, 49377-07460, 076145701G, 076145701Q, 076145702C, 49377-07530, 076145701G, 076145701Q, 076145702C, 49377-07531, 076145701G, 076145701Q, 076145702C, 49377-07535
Data updated: 2023-11-09 15:16:19
