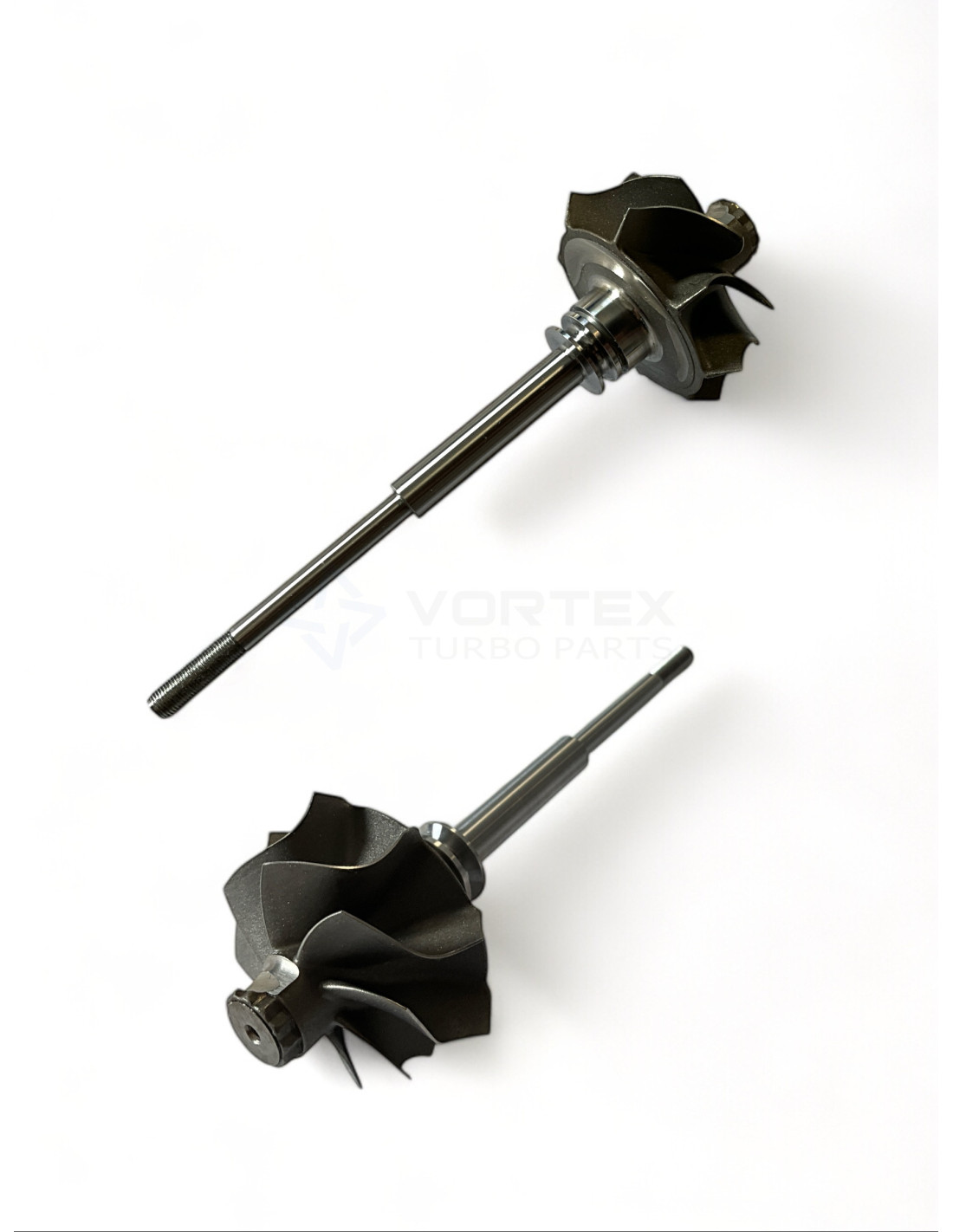

Shaft and wheel SW-I033
Shaft and wheel SW-I033

Shaft and wheel SW-I033

SW-I033
New
In Stock (7 Items)
€45.62
Tax included

Shaft and wheel SW-I033 for turbos 06K145702Q, 06K145702R, 06K145702T, 06K145722G, 06K145722L, 06K145722N, 06K145874L, 06L145702B, 06L145702D, 06L145702F.

See below for more info.



SW-I033 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-I033

SW-I033 - Compatibility table

Shaft and wheel SW-I033 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
IHIRHF506K145702Q06K145702Q
IHIRHF506K145702R06K145702R
IHIRHF506K145702T06K145702T
IHIRHF506K145722G06K145722G
IHIRHF506K145722L06K145722L
IHIRHF506K145722N06K145722N
IHIRHF506K145874L06K145874L
IHIRHF506L145702B06L145702B
IHIRHF506L145702D06L145702D
IHIRHF506L145702F06L145702F
IHIRHF506L145702M06L145702M
IHIRHF506L145702P06L145702P
IHIRHF506L145722C06L145722C
IHIJHJ06L145874D--

SW-I033 - Part Properties

Blades (Shaft blades count): 8

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.3

Exducer Diameter B (Exducer Diameter B): 41.8

Tip Height C (Tip Height C): 5.4

Journal Bearing Diameter D (Journal Bearing Diameter D): 8.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 104.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Rotation (Rotation): Reverse

Model (Model): RHF5

Data updated: 2022-12-19 22:36:12
