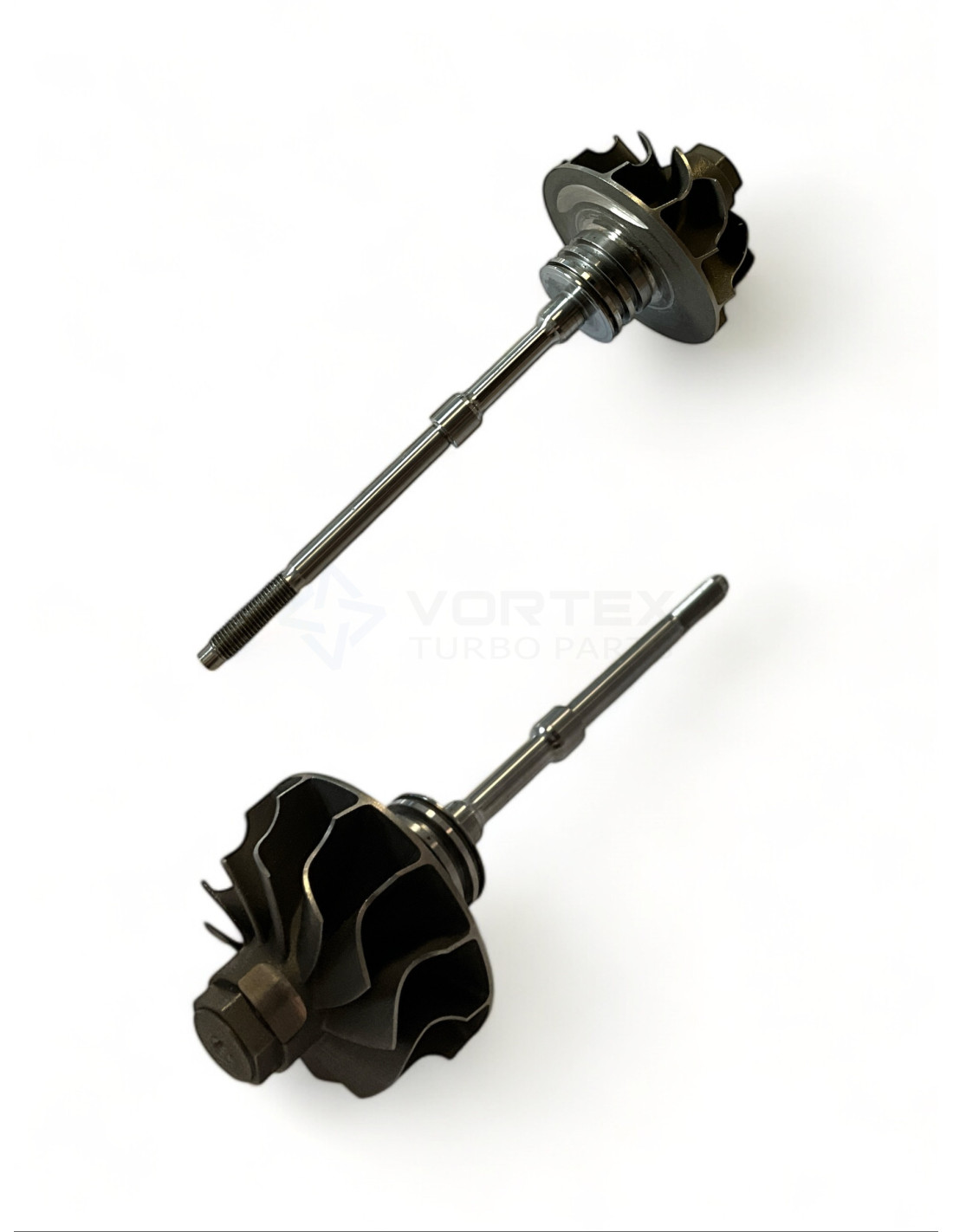

Shaft and wheel SW-G035
SW-G035
New
Please login to see prices and stock
Shaft and wheel SW-G035 for turbos 808093-0002, 825246-0001, 825246-0002, 906760-0001.
SW-G035 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G035
SW-G035 - Compatibility table
| Shaft and wheel SW-G035 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT14 | 808093-0002 | -- |
| Garrett | GT1238SZ | 825246-0001 | -- |
| Garrett | GT1238SZ | 825246-0002 | -- |
| Garrett | GT1238Z | 906760-0001 | -- |
SW-G035 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Slender
Inducer Diameter A (Inducer Diameter A): 35.5
Exducer Diameter B (Exducer Diameter B): 30.2
Tip Height C (Tip Height C): 4.8
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 80.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT14
808093-0002, 825246-0001, 825246-0002, 906760-0001
Data updated: 2025-08-28 11:44:11
