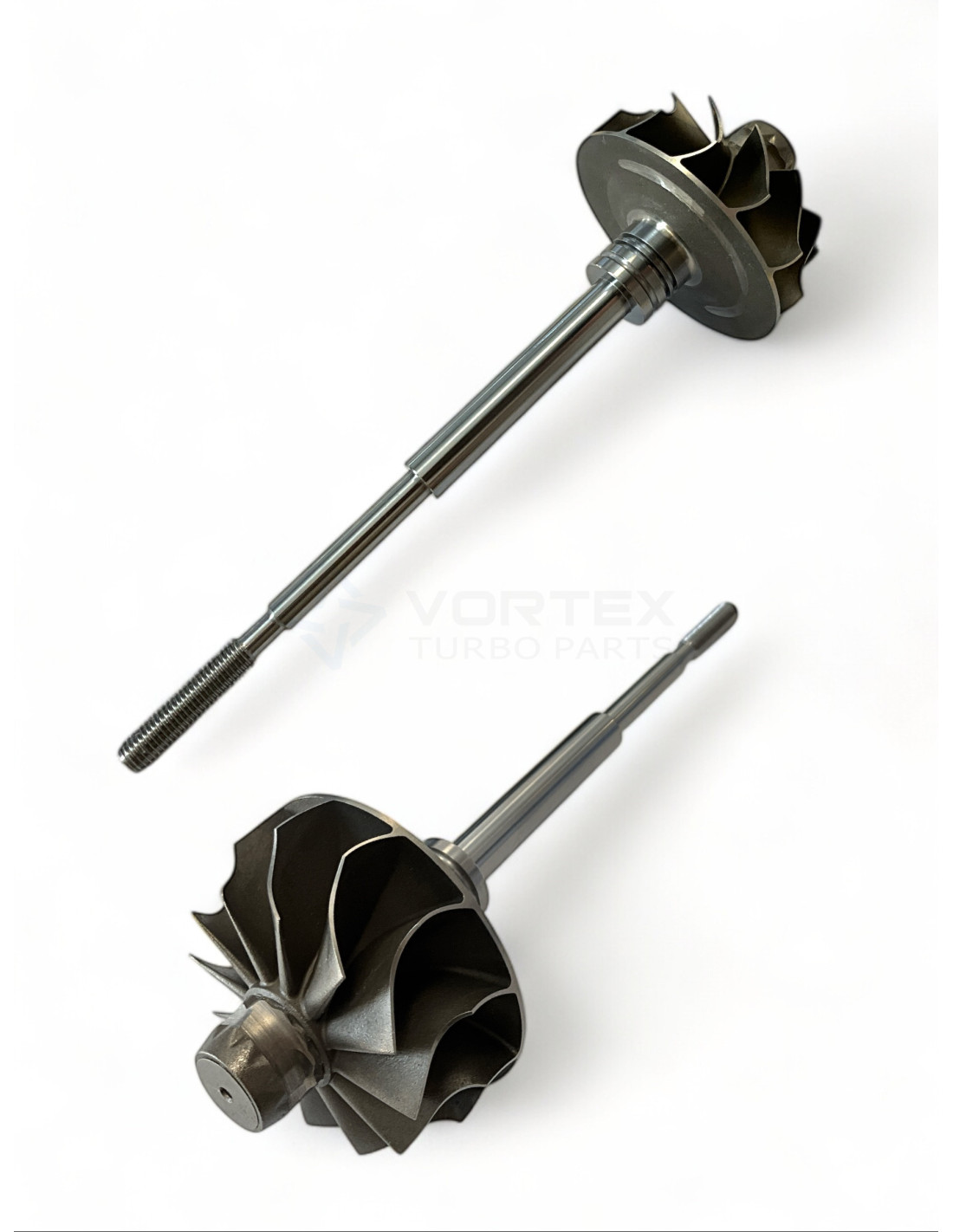

Shaft and wheel SW-B011
SW-B011
New
Last items in stock
(2 Items)
€88.09
Tax included
Shaft and wheel SW-B011 for turbos 10009700010, 10009700039, 10009700079, 10009700080, 10009700105, 10009700106, 10009700106, 10009700122, 10009700129, 10009700129.
SW-B011 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-B011
SW-B011 - Compatibility table
| Shaft and wheel SW-B011 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | B2U + B03 | 10009700010 | -- |
| BorgWarner | B2US-R2S | 10009700039 | -- |
| BorgWarner | B2US-R2S | 10009700079 | -- |
| BorgWarner | B2US-R2S | 10009700080 | -- |
| BorgWarner | B2US-R2S | 10009700105 | -- |
| BorgWarner | R2S B1 + B2 | 10009700106 | 07W145703-J |
| BorgWarner | B2US-R2S | 10009700106 | -- |
| BorgWarner | B2US-R2S | 10009700122 | -- |
| BorgWarner | R2S B1UG + B2US | 10009700129 | 51.09101-7223 |
| BorgWarner | B2US-R2S | 10009700129 | -- |
| BorgWarner | B2US-R2S | 10009700143 | -- |
| BorgWarner | B2US-R2S | 10009700177 | -- |
| BorgWarner | B2US-R2S | 10009700221 | -- |
| BorgWarner | B2US-R2S | 10009700297 | -- |
| BorgWarner | B2US-R2S | 10009700298 | -- |
| BorgWarner | B2US | 12649700012 | -- |
| BorgWarner | B2US | 12649700052 | -- |
| BorgWarner | B2US | 12649700072 | -- |
| BorgWarner | B2 | 12659700000 | -- |
| BorgWarner | (R2S) B2UG | 12709700052 | 51.09100-7916 |
SW-B011 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 64.2
Exducer Diameter B (Exducer Diameter B): 54.6
Tip Height C (Tip Height C): 11.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 10.5
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 7.0
Shaft Length (mm) (Shaft Length (mm)): 150.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): B2
12709700052, 12649700072, 12649700052, 12649700012, 10009700298(B02), 10009700297(B02), 10009700221(B02), 10009700177(B02), 10009700143(B02), 10009700129(B02), 10009700129, 10009700122(B02), 10009700106(B02), 10009700106, 10009700105(B02), 10009700080(B02), 10009700079(B02), 10009700039(B02), 10009700010, 10009700039 (B02), 10009700079 (B02), 10009700080 (B02), 10009700105 (B02), 07W145703-J, 1000 970 0106, 10009700106 (B02), 10009700122 (B02), 1000 970 0129, 51.09101-7223, 10009700129 (B02), 10009700143 (B02), 10009700177 (B02), 10009700221 (B02), 10009700297 (B02), 10009700298 (B02), 1264 970 0012, 1264 970 0052, 1264 970 0072, 12659700000, 1270 970 0052, 51.09100-7916
Data updated: 2025-02-12 18:02:38
