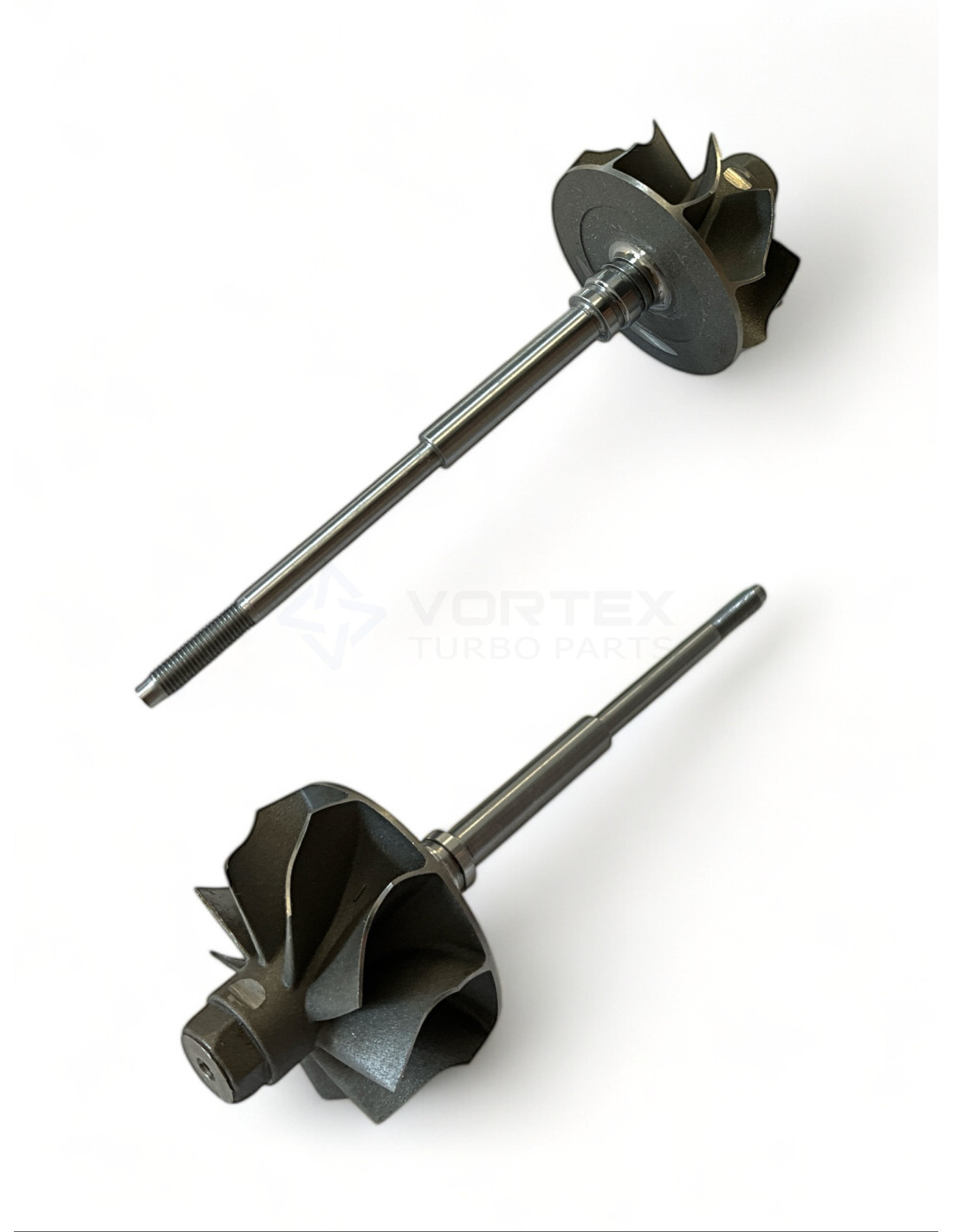

Shaft and wheel SW-B029
Shaft and wheel SW-B029
Shaft and wheel SW-B029
Shaft and wheel SW-B029

Shaft and wheel SW-B029

SW-B029
New
In Stock (29 Items)
€42.47
Tax included

Shaft and wheel SW-B029 for turbos 54409700024, 54409700025, 54409700031, 54409700032, 54409700033, 54409700034, 54409700038, 54409700039, 54409700041, 54409700042.



SW-B029 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-B029

SW-B029 - Compatibility table

Shaft and wheel SW-B029 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerBV4054409700024--
BorgWarnerBV40544097000258513640
BorgWarnerBV4054409700031--
BorgWarnerBV40544097000328513640
BorgWarnerBV4054409700033--
BorgWarnerBV40544097000348513640
BorgWarnerBV4054409700038--
BorgWarnerBV40544097000398513640
BorgWarnerBV4054409700041--
BorgWarnerBV40544097000428513640
BorgWarner54409700043--
BorgWarnerBV40544097000448513640
BorgWarnerBV40544097000468513640, 8513641

SW-B029 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 37.9

Exducer Diameter B (Exducer Diameter B): 35.6

Tip Height C (Tip Height C): 6.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1

Shaft Length (mm) (Shaft Length (mm)): 83.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): BV40

54409700046, 54409700044, 54409700042, 54409700039, 54409700034, 54409700032, 54409700025, 5440 970 0025, 8513640, 5440 970 0032, 8513640, 5440 970 0034, 8513640, 5440 970 0039, 8513640, 5440 970 0042, 8513640, 5440 970 0044, 8513640, 5440 970 0046, 8513640, 8513641

Data updated: 2024-02-19 11:31:57
