Shaft and wheel SW-G159R

SW-G159R
New
Please login to see prices and stock

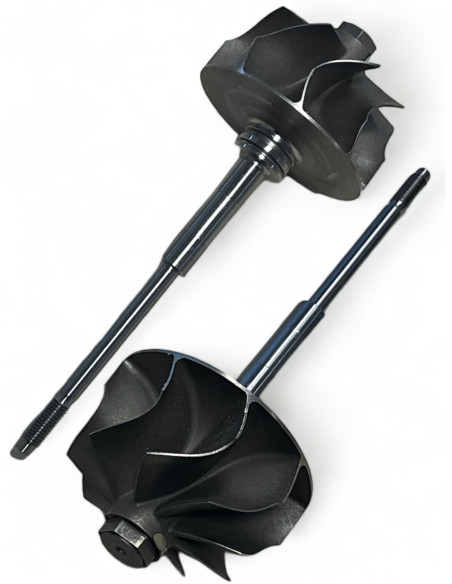

Shaft and wheel SW-G159R for turbos 825758-0001, 825758-0002, 825758-0003, 825758-0004, 846015-0001, 883860-0001(GT2260S).



SW-G159R - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G159R

SW-G159R - Alternative numbers

VTX (Vortex original part number): SW-G159

SW-G159R - Compatibility table

Shaft and wheel SW-G159R - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2260S825758-0001--
GarrettGT2260S825758-0002--
GarrettGT2260S825758-0003--
GarrettGT2260S825758-0004--
GarrettGT2260S846015-0001--
GarrettGT2260S883860-0001(GT2260S)--

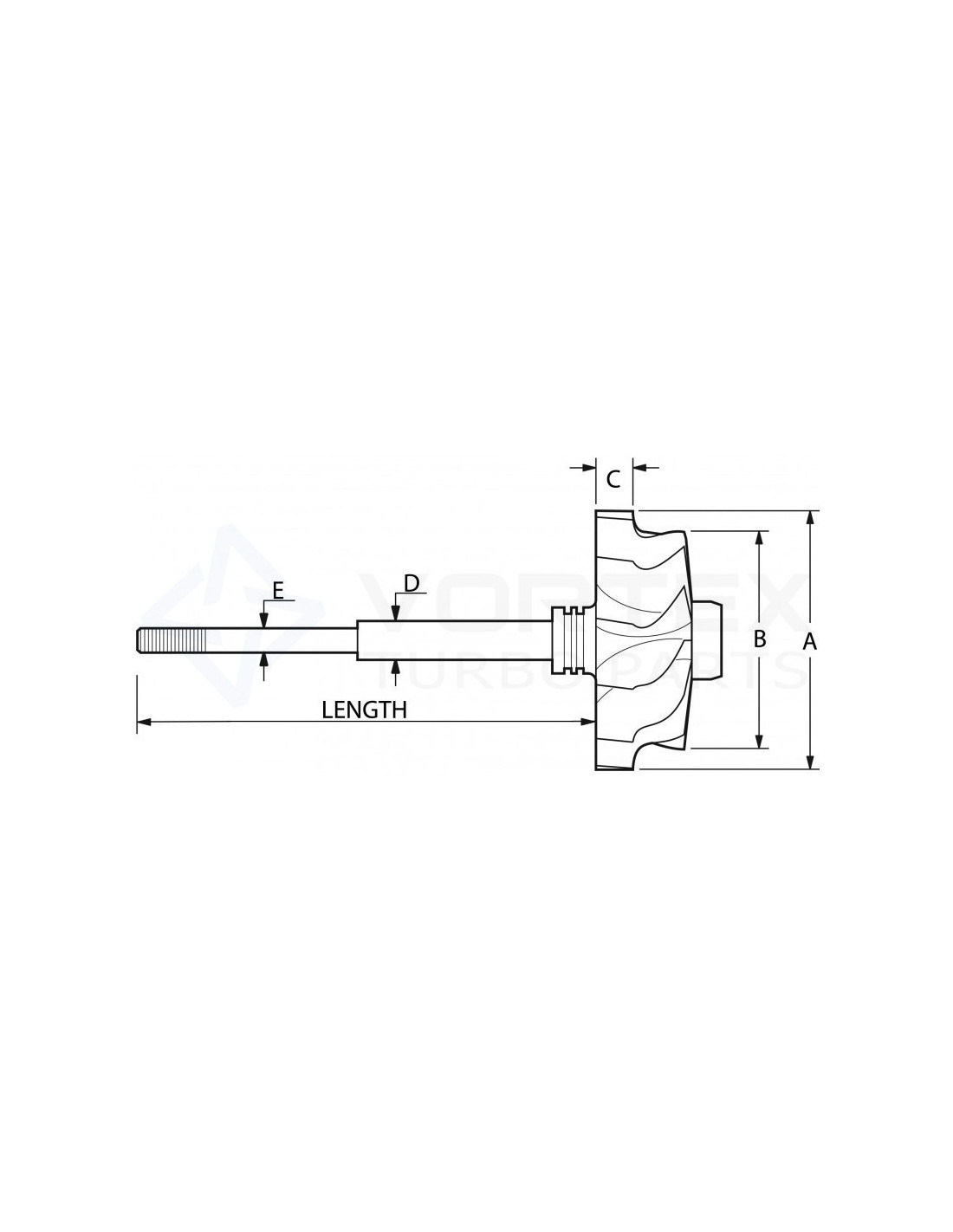

SW-G159R - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.2

Exducer Diameter B (Exducer Diameter B): 43.7

Tip Height C (Tip Height C): 9.9

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Rotation (Rotation): Reverse

Model (Model): GT15-25

883860-0001(GT2260S), 825758-0001, 825758-0002, 825758-0003, 825758-0004, 846015-0001, 883860-0001 (GT2260S)
