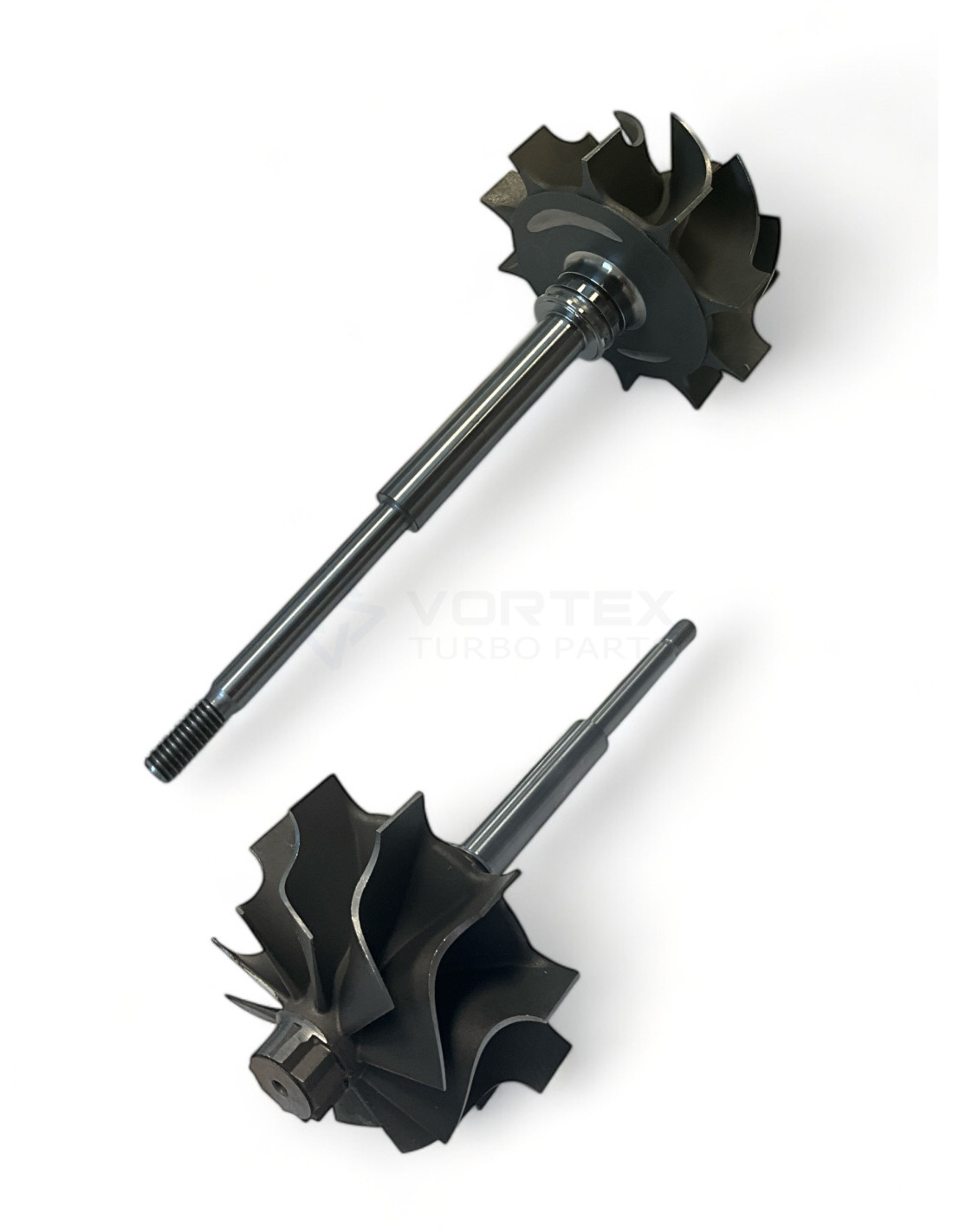

Shaft and wheel SW-T008 for turbos 17201-17010, 17201-17020, 17201-17030, 17201-17060, 17201-42010, 17201-42020, 17201-58010, 17201-58011, 17201-58020, 17201-68010.



SW-T008 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-T008

SW-T008 - Compatibility table

Shaft and wheel SW-T008 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
ToyotaCT2617201-17010--
ToyotaCT2617201-17020--
ToyotaCT2617201-17030--
ToyotaCT2617201-17060--
ToyotaCT2617201-42010--
ToyotaCT2617201-42020--
ToyotaCT2617201-58010--
ToyotaCT2617201-58011--
ToyotaCT2617201-58020--
ToyotaCT2617201-68010--
ToyotaCT2617201-74002--
ToyotaCT2617201-74003--
ToyotaCT2617201-74010--
ToyotaCT2617201-74020--
ToyotaCT2617201-74030--
ToyotaCT2617201-74040--
ToyotaCT2617201-74060--
ToyotaCT2617201-74080--

SW-T008 - Part Properties

Blades (Shaft blades count): 10

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 68.0

Exducer Diameter B (Exducer Diameter B): 52.0

Tip Height C (Tip Height C): 11.6

Journal Bearing Diameter D (Journal Bearing Diameter D): 10.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 6.5

Shaft Length (mm) (Shaft Length (mm)): 116.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): CT26

17201-17010, 17201-17020, 17201-17030, 17201-17060, 17201-42010, 17201-42020, 17201-58010, 17201-58011, 17201-58020, 17201-68010, 17201-74002, 17201-74003, 17201-74010, 17201-74020, 17201-74030, 17201-74040, 17201-74060, 17201-74080
