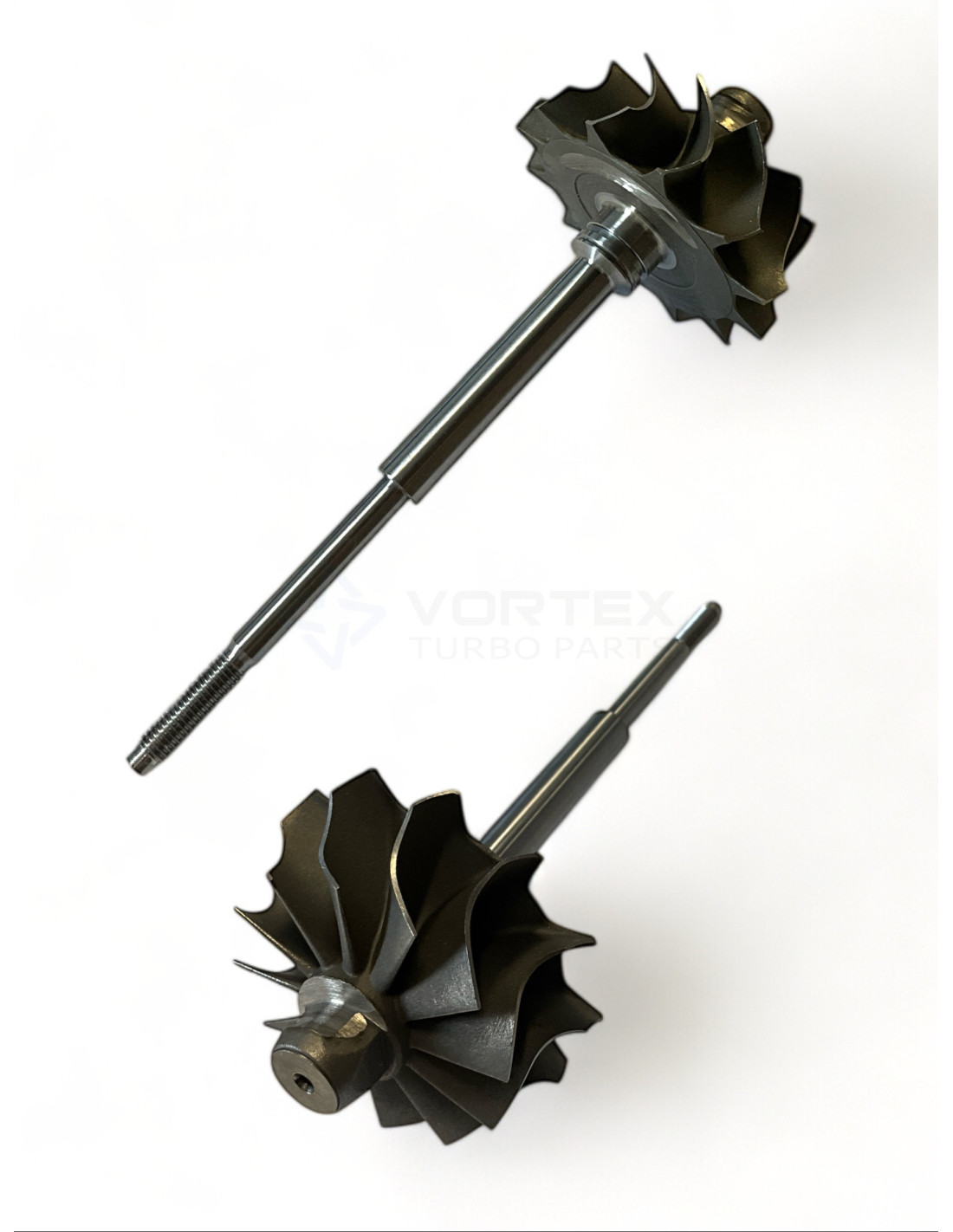

Shaft and wheel SW-K029
Shaft and wheel SW-K029
Shaft and wheel SW-K029
Shaft and wheel SW-K029

Shaft and wheel SW-K029

SW-K029
New
In Stock (7 Items)
€40.90
Tax included

5316 120 5015, 5316 120 5028, SW-K029

Shaft and wheel SW-K029 for turbos 53169700017, 53169700074, 53169706408, 53169706500, 53169706501, 53169706502, 53169706503, 53169706504, 53169706505, 53169706506.



SW-K029 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-K029

SW-K029 - Alternative numbers

BWO (BorgWarner original part number): 5316 120 5015

BWO (BorgWarner original part number): 5316 120 5028

SW-K029 - Compatibility table

Shaft and wheel SW-K029 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerK1653169700017--
BorgWarnerK1653169700074--
BorgWarnerK16-2464GGA5.82GAAVD53169706408--
BorgWarnerK16-2465OXBAA7.82GAAQD5316970650051.09100-7517
BorgWarnerK16-2465OXBKO7.12GAAVD5316970650151.09100-7560
BorgWarnerK16-2465OXBAA7.82GAAQD5316970650251.09100-7568
BorgWarnerK16-2465OXBAA7.82GAAQD5316970650351.09100-7693
BorgWarnerK16-2465OXBAA5.82GAAQD5316970650451.09100-7699
BorgWarnerK1653169706505--
BorgWarnerK16-2465OXBAA5.82GAAQD5316970650651.09100-7955
BorgWarnerK1UG5316970650751.09100-7961
BorgWarnerK1UG5316970650951.09101-7237
BorgWarnerK16-2267GGB5.52GACSD53169706702037522, 9351014780
BorgWarnerK16-2267GGB5.52GACVD531697067074827885, 4828775, 4834947
BorgWarnerK1653169706714--
BorgWarnerK16-2267GXC5.82GABVD5316970671535242057F
BorgWarnerK16-2467GGA5.82GAAVD5316970671935242076F, 35242076G
BorgWarnerK16-2267GGBAA5.82GAAVD53169706724253414510102
BorgWarnerK16-2467GGAAA5.82GAAVD5316970672535242083F
BorgWarnerK16-2267GGB5.82GAAVD5316970673199441177
BorgWarnerK16-2267GGB5.82GAAVD5316970673298428874
BorgWarnerK16-2267GGB5.82GABVD5316970673398441853
BorgWarnerK16-2467GYAAA5.82GAAZD531697067343740960299
BorgWarnerK16-2267GGB5.82GAAXD53169706737037588, 9623067880
BorgWarnerK1653169706740--
BorgWarnerK1653169706741--
BorgWarnerK16-2467GGAAA5.82GAAVD5316970674335242097A
BorgWarnerK1653169706753--
BorgWarnerK1653169706755--
BorgWarnerK1653169706756--
BorgWarnerK16-2470GGA7.82GACXK5316970700190423023
BorgWarnerK16-2470GYCAA5.82GAAVD531697070039040960399
BorgWarnerK16-2270GGB5.82GAAVD531697070049244004
BorgWarnerK16-2470GYCAA5.82GAAVD531697070089040961299
BorgWarnerK16-2470GYCAA8.12GABVD531697070099040960999
BorgWarnerK16-2470GYCAA8.12GABVD531697070109040961099
BorgWarnerK16-2470GYCAA7.12GAAVD531697070139040961999
BorgWarnerK16-2470GYCAA7.12GAAVD531697070149040962099
BorgWarnerK16-2470GYCAA5.82GAAVD531697070159040962399
BorgWarnerK16-2470GYCAA7.12GAAVD531697070169040962499
BorgWarnerK16-2470GYCAA7.12GAAWD531697070179040962799
BorgWarnerK16-2470GYCAA5.82GAAWD531697070199040963099
BorgWarnerK16-2470GYCAA5.82GAAWD531697070209040963199
BorgWarnerK16-2471OYCKB5.82GAAWD531697070219040963599
BorgWarnerK16-2471OYCKB5.82GAAWD531697070229040963699
BorgWarnerK16-2470GYCAA7.12GAAWD531697070239040964399
BorgWarnerK16-2470GYCAA5.82GAAWD531697070249040964299
BorgWarnerK16-2471OYCKB5.82GAAWD531697070259040964199
BorgWarnerK16-2470GYCAA5.82GAAWD531697070279040963199
BorgWarnerK16-2470GYCAA7.12GAAVD531697070289040965299
BorgWarnerK16-2470GYCAA7.12GAAVD531697070299040965699
BorgWarnerK16-2470GYCAA5.82GAAVD531697070309040965399
BorgWarnerK1653169707033--
BorgWarnerK1653169707035--
BorgWarnerK16-2471OYCKB7.12GAAWD531697071019040964899
BorgWarnerK16-2471OYCKB5.82GAAWD531697071039040965899
BorgWarnerK16-2471OYCKB7.12GAAWD531697071049040965799
BorgWarnerK16-2471OYCKB7.12GAAVD531697071059040965499
BorgWarnerK16-2471OYCKB5.82GAAVD531697071069040965599
BorgWarnerK16-2471OYCKB5.82GAAWD531697071079040965999
BorgWarnerK16-2471OYCKB5.82GAAWD531697071119040966399, 9040967699
BorgWarnerK16-2471OYCKB5.82GAAVD531697071139040967499
BorgWarnerK16-2471OYCKB5.82GAAVD531697071149040967599
BorgWarnerK16-2471OYCKB5.82GAAWD531697071169040966899
BorgWarnerK16-2471OYCKB5.82GAAWD531697071179040967399
BorgWarnerK16-2471OYCKB5.82GAAWD531697071189040967299
BorgWarnerK16-2471OYCKB5.82GAAWD531697071199040967199
BorgWarnerK16-2471OYCKB5.82GAAWD531697071209040966999
BorgWarnerK1653169707121--
BorgWarnerK1653169707122--
BorgWarnerK16-2471OYCKB5.82GAAWD531697071239040968099
BorgWarnerK16-2471OYCKB5.82GAAWD531697071249040968199
BorgWarnerK16-2471OYCKB5.82GAAWD531697071259040967999
BorgWarnerK16-2471OYCKB5.82GAAWD531697071269040968299
BorgWarnerK16-2471OYCKB5.82GAAWD531697071279040968399
BorgWarnerK16-2471OYCKB5.82GAAVD531697071289040968499
BorgWarnerK16-2471OYCKB5.82GAAWD531697071299040968299, 9040968599
BorgWarnerK16-2471OYCKB5.82GAAWD531697071309040968799
BorgWarnerK16-2471OYCKB5.82GAAWD531697071329040968699
BorgWarnerK1653169707133--
BorgWarnerK16-2471OYCKB5.82GAAWD531697071389040969099
BorgWarnerK1653169707139--
BorgWarnerK1653169707141--
BorgWarnerK1653169707143--
BorgWarnerK1653169707145--
BorgWarnerK16-2471OYCKB5.82GAAWD531697071559040969899
BorgWarnerK1653169707156--
BorgWarnerK1653169707158--
BorgWarnerK1653169707159--
BorgWarnerK1653169707161--
BorgWarnerK1653169707163--
BorgWarnerK1653169707165--
BorgWarnerK1653169707166--
BorgWarnerK1653169707183--
BorgWarnerK1653169707198--

SW-K029 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 55.0

Exducer Diameter B (Exducer Diameter B): 46.2

Tip Height C (Tip Height C): 6.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 8.5

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.4

Shaft Length (mm) (Shaft Length (mm)): 107.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): K14/16

53169707155, 53169707138, 53169707132, 53169707130, 53169707129, 53169707128, 53169707127, 53169707126, 53169707125, 53169707124, 53169707123, 53169707120, 53169707119, 53169707118, 53169707117, 53169707116, 53169707114, 53169707113, 53169707111, 53169707107, 53169707106, 53169707105, 53169707104, 53169707103, 53169707101, 53169707030, 53169707029, 53169707028, 53169707027, 53169707025, 53169707024, 53169707023, 53169707022, 53169707021, 53169707020, 53169707019, 53169707017, 53169707016, 53169707015, 53169707014, 53169707013, 53169707010, 53169707009, 53169707008, 53169707004, 53169707003, 53169707001, 53169706743, 53169706741, 53169706740, 53169706737, 53169706734, 53169706733, 53169706732, 53169706731, 53169706725, 53169706724, 53169706719, 53169706715, 53169706714, 53169706707, 53169706702, 53169706509, 53169706507, 53169706506, 53169706504, 53169706503, 53169706502, 53169706501, 53169706500, 53169706408, 53169700017, 5316 970 0017, 53169700074, 5316 970 6408, 51.09100-7517, 5316 970 6500, 51.09100-7560, 5316 970 6501, 51.09100-7568, 5316 970 6502, 51.09100-7693, 5316 970 6503, 51.09100-7699, 5316 970 6504, 53169706505, 51.09100-7955, 5316 970 6506, 51.09100-7961, 5316 970 6507, 51.09101-7237, 5316 970 6509, 037522, 5316 970 6702, 9351014780, 4827885, 4828775, 4834947, 5316 970 6707, 5316 970 6714, 35242057F, 5316 970 6715, 35242076F, 35242076G, 5316 970 6719, 253414510102, 5316 970 6724, 35242083F, 5316 970 6725, 5316 970 6731, 99441177, 5316 970 6732, 98428874, 5316 970 6733, 98441853, 3740960299, 5316 970 6734, 037588, 5316 970 6737, 9623067880, 5316 970 6740, 5316 970 6741, 35242097A, 5316 970 6743, 53169706753, 53169706755, 53169706756, 5316 970 7001, 90423023, 5316 970 7003, 9040960399, 5316 970 7004, 9244004, 5316 970 7008, 9040961299, 5316 970 7009, 9040960999, 5316 970 7010, 9040961099, 5316 970 7013, 9040961999, 5316 970 7014, 9040962099, 5316 970 7015, 9040962399, 5316 970 7016, 9040962499, 5316 970 7017, 9040962799, 5316 970 7019, 9040963099, 5316 970 7020, 9040963199, 5316 970 7021, 9040963599, 5316 970 7022, 9040963699, 5316 970 7023, 9040964399, 5316 970 7024, 9040964299, 5316 970 7025, 9040964199, 5316 970 7027, 9040963199, 5316 970 7028, 9040965299, 5316 970 7029, 9040965699, 5316 970 7030, 9040965399, 53169707033, 53169707035, 5316 970 7101, 9040964899, 5316 970 7103, 9040965899, 5316 970 7104, 9040965799, 5316 970 7105, 9040965499, 5316 970 7106, 9040965599, 5316 970 7107, 9040965999, 5316 970 7111, 9040966399, 9040967699, 5316 970 7113, 9040967499, 5316 970 7114, 9040967599, 5316 970 7116, 9040966899, 5316 970 7117, 9040967399, 5316 970 7118, 9040967299, 5316 970 7119, 9040967199, 5316 970 7120, 9040966999, 53169707121, 53169707122, 5316 970 7123, 9040968099, 5316 970 7124, 9040968199, 5316 970 7125, 9040967999, 5316 970 7126, 9040968299, 5316 970 7127, 9040968399, 5316 970 7128, 9040968499, 5316 970 7129, 9040968299, 9040968599, 5316 970 7130, 9040968799, 5316 970 7132, 9040968699, 53169707133, 5316 970 7138, 9040969099, 53169707139, 53169707141, 53169707143, 53169707145, 5316 970 7155, 9040969899, 53169707156, 53169707158, 53169707159, 53169707161, 53169707163, 53169707165, 53169707166, 53169707183, 53169707198
