Shaft and wheel SW-I024
SW-I024
New
In Stock
(10 Items)
€29.89
Tax included
Shaft and wheel SW-I024 for turbos AL0065, VA84, VL25, VL35, VV11, VV13, VV16, VV17, VVP1.
See below for more info.
SW-I024 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-I024
SW-I024 - Compatibility table
| Shaft and wheel SW-I024 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| IHI | RHF4 | AL0065 | -- |
| IHI | RHF4 | VA84 | -- |
| IHI | RHF4 | VL25 | -- |
| IHI | RHF4H | VL35 | 55181245, 55223446, 55223928, 71783881, 71793616, 71793619 |
| IHI | RHF4 | VV11 | -- |
| IHI | RHF4 | VV13 | -- |
| IHI | RHF4H | VV16 | -- |
| IHI | RHF4 | VV17 | -- |
| IHI | RHF4 | VVP1 | -- |

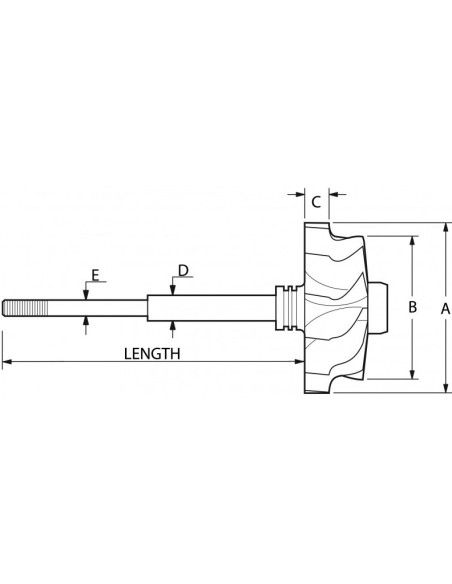

SW-I024 - Part Properties
Blades (Shaft blades count): 8
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 44.0
Exducer Diameter B (Exducer Diameter B): 36.0
Tip Height C (Tip Height C): 6.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.4
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 91.5
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): RHF4
AL0065, VA84, VL25, 55181245, 55223446, 55223928, 71783881, 71793616, 71793619, VL35, VV11, VV13, VV16, VV17, VVP1
Data updated: 2023-07-13 17:13:32
