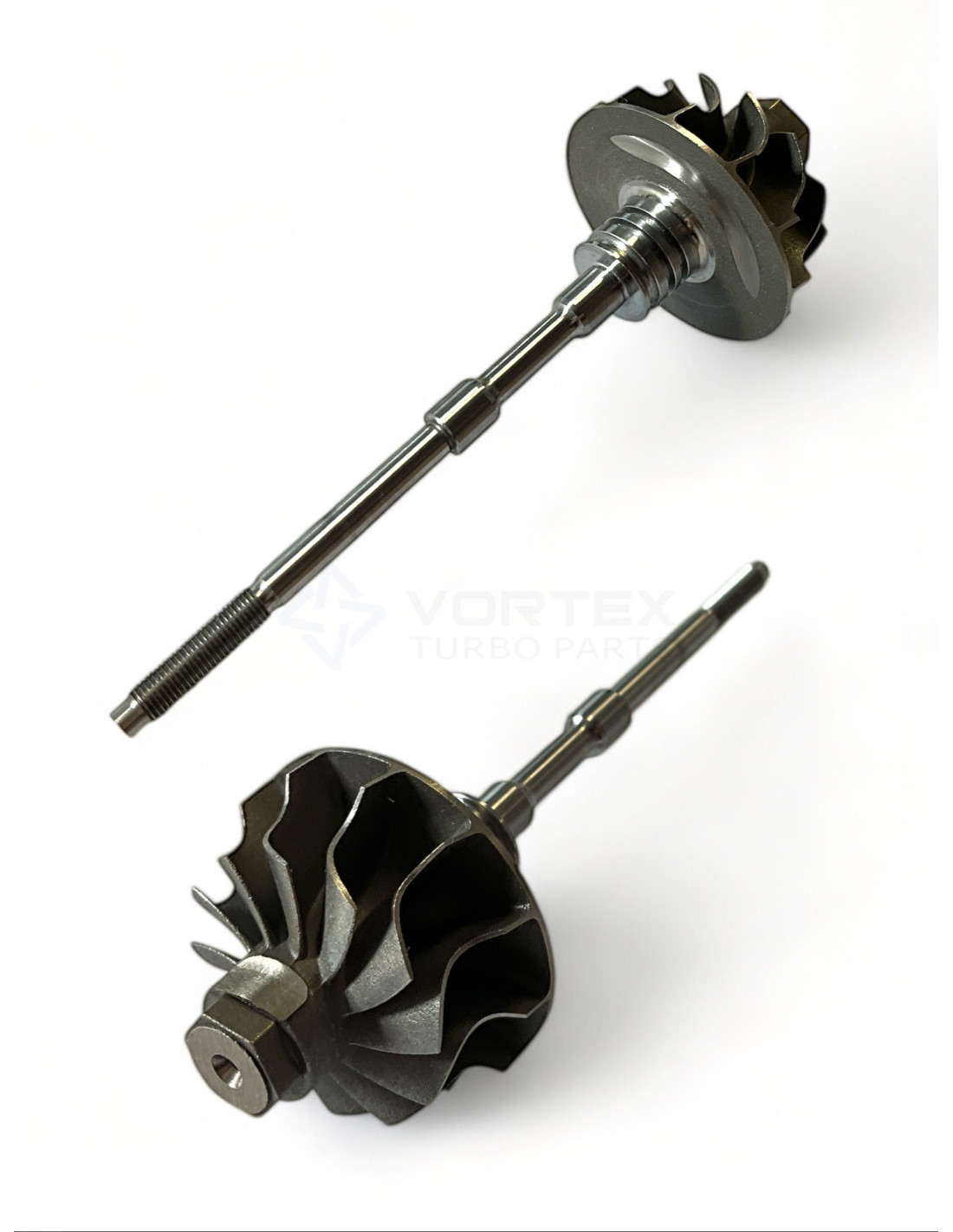

Shaft and wheel SW-G170 for turbos 836389-0006, 841384-0001, 855382-0005, 856162-0001, 856162-0002, 858366-0001, 878393-0002.



SW-G170 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G170

SW-G170 - Compatibility table

Shaft and wheel SW-G170 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1241SZM836389-0006--
GarrettGT1241Z841384-0001--
GarrettGTB1238Z855382-0005--
GarrettGT1241SZM856162-0001--
GarrettGT1241SZM856162-0002--
GarrettGT1241SZM858366-0001--
GarrettGT1238Z878393-0002--

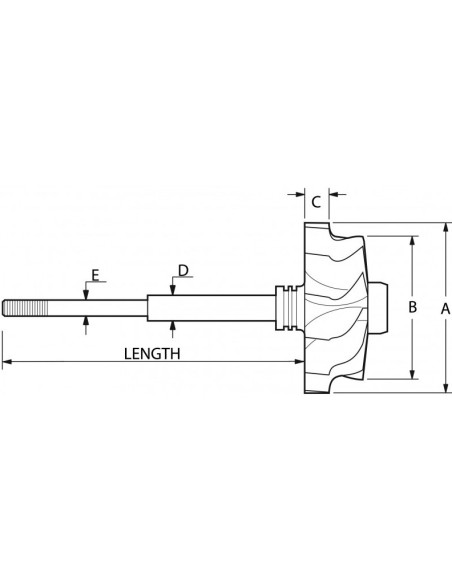

SW-G170 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 35.5

Exducer Diameter B (Exducer Diameter B): 29.0

Tip Height C (Tip Height C): 4.7

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 79.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT12

836389-0006, 841384-0001, 855382-0005, 856162-0001, 856162-0002, 858366-0001, 878393-0002
