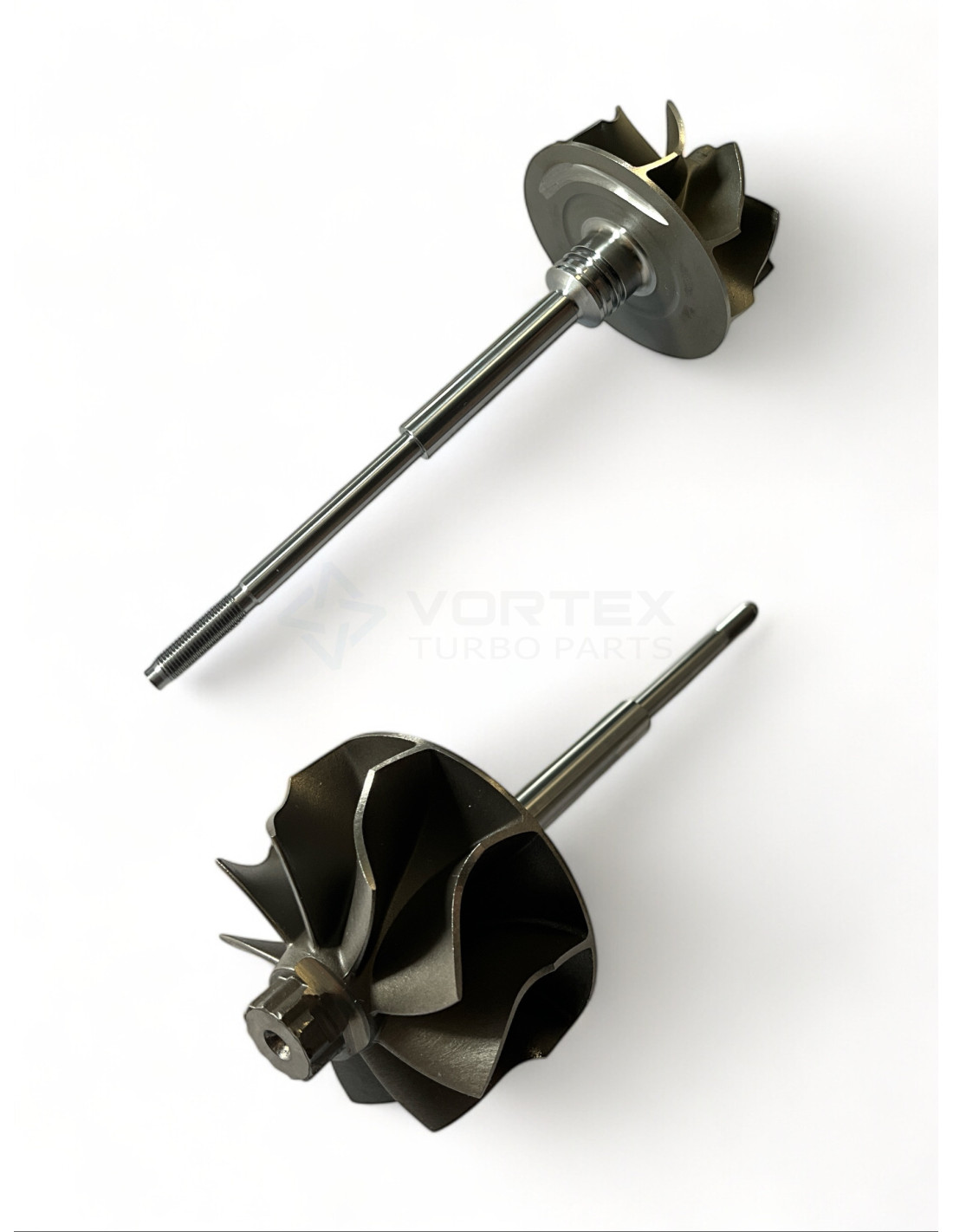

SW-K070 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-K070
SW-K070 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight

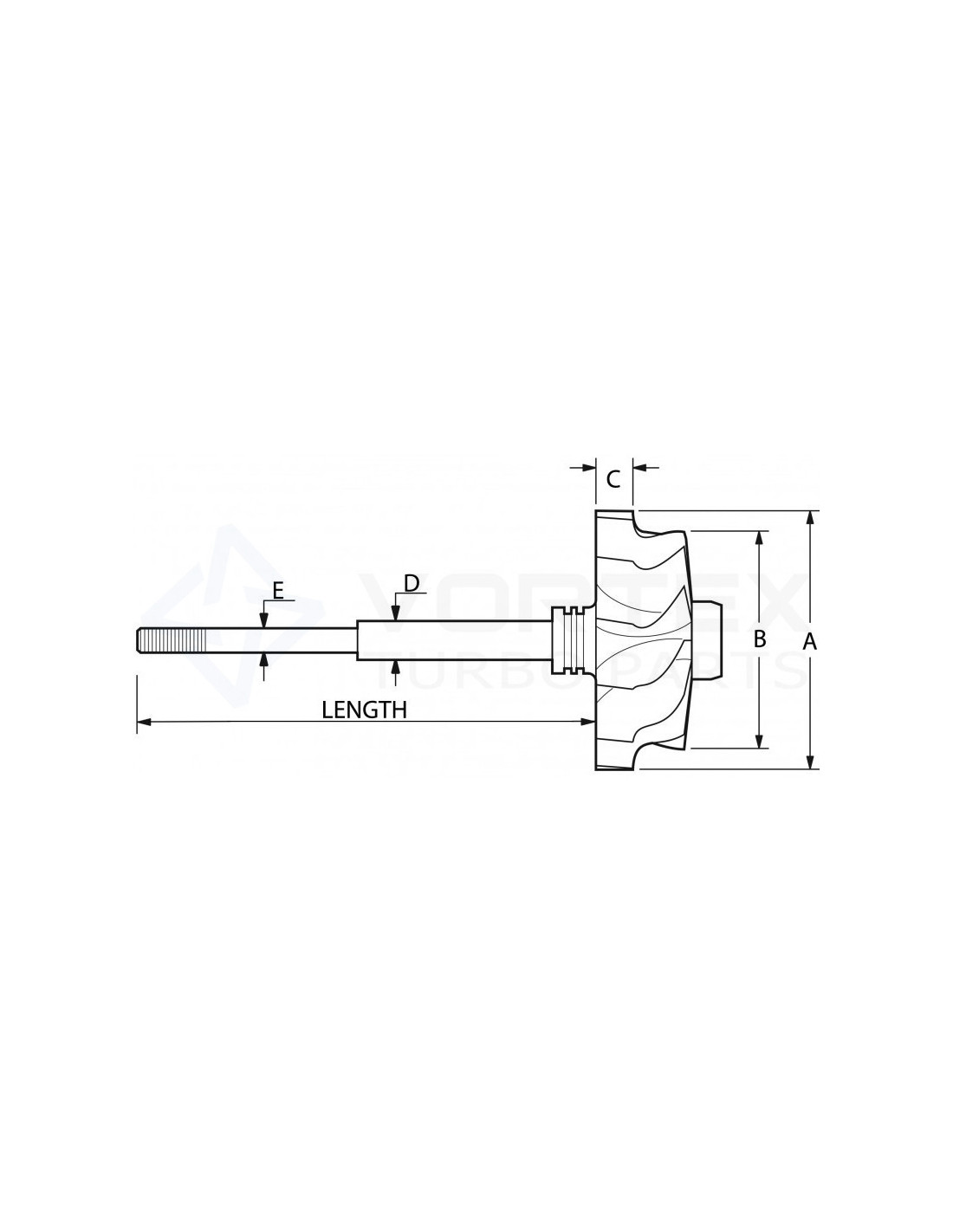

Inducer Diameter A (Inducer Diameter A): 48.0
Exducer Diameter B (Exducer Diameter B): 42.7
Tip Height C (Tip Height C): 8.3
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6
Shaft Length (mm) (Shaft Length (mm)): 98.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Twin
Model (Model): K04
Data updated: 2025-08-26 12:58:59
