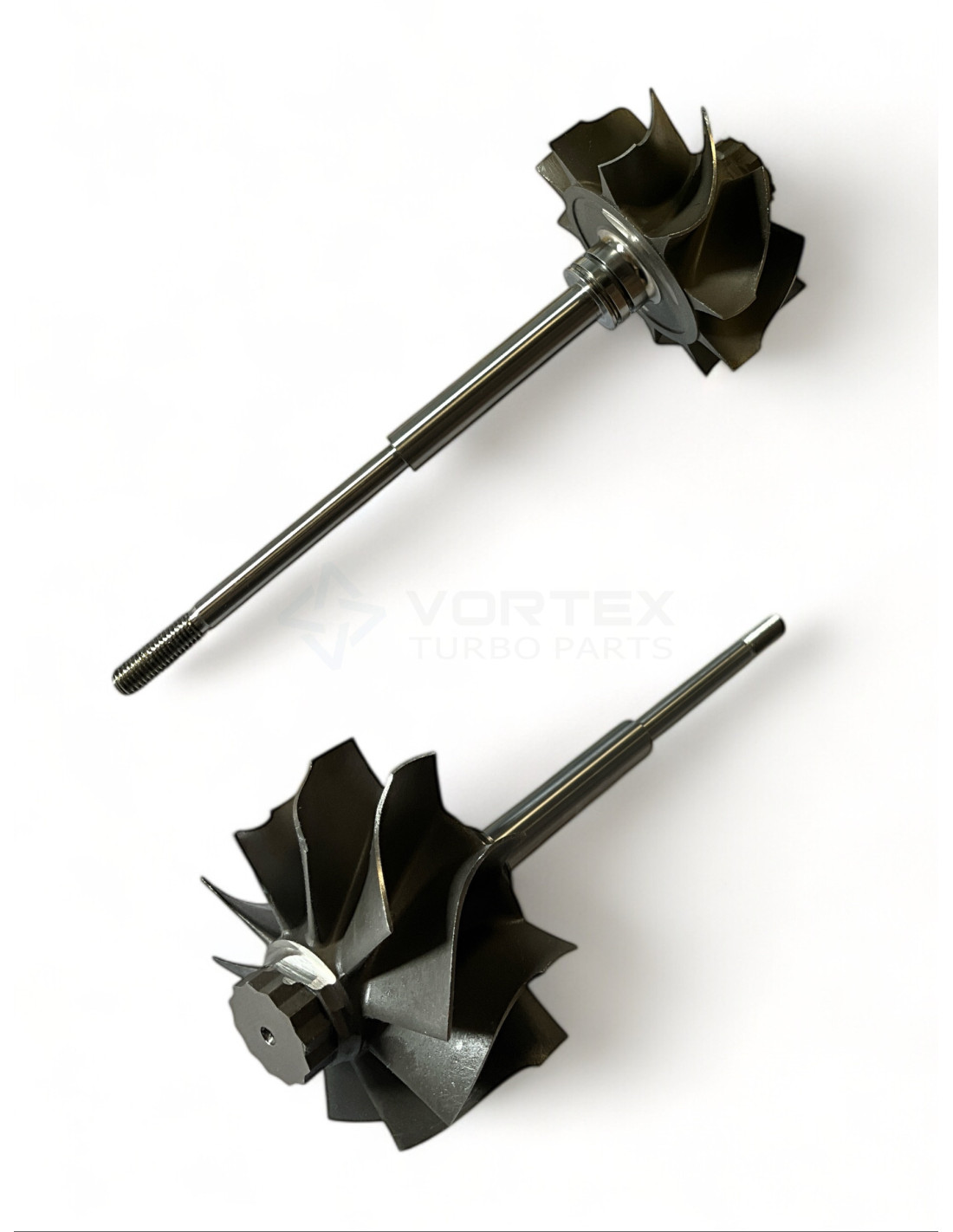

Shaft and wheel SW-S006 for turbos 318018, 318442, 318617, 318674, 318680, 318706, 318783, 318784, 319303.



SW-S006 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-S006

SW-S006 - Compatibility table

Shaft and wheel SW-S006 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerS200318018--
BorgWarnerS200318442--
BorgWarnerS200318617--
BorgWarnerS200318674--
BorgWarnerS200318680--
BorgWarnerS200318706--
BorgWarnerS200318783--
BorgWarnerS200318784--
BorgWarnerS200319303--

SW-S006 - Part Properties

Blades (Shaft blades count): 10

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 73.0

Exducer Diameter B (Exducer Diameter B): 64.5

Tip Height C (Tip Height C): 9.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 10.5

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 7.0

Shaft Length (mm) (Shaft Length (mm)): 146.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): S200

318018, 318442, 318617, 318674, 318680, 318706, 318783, 318784, 319303
