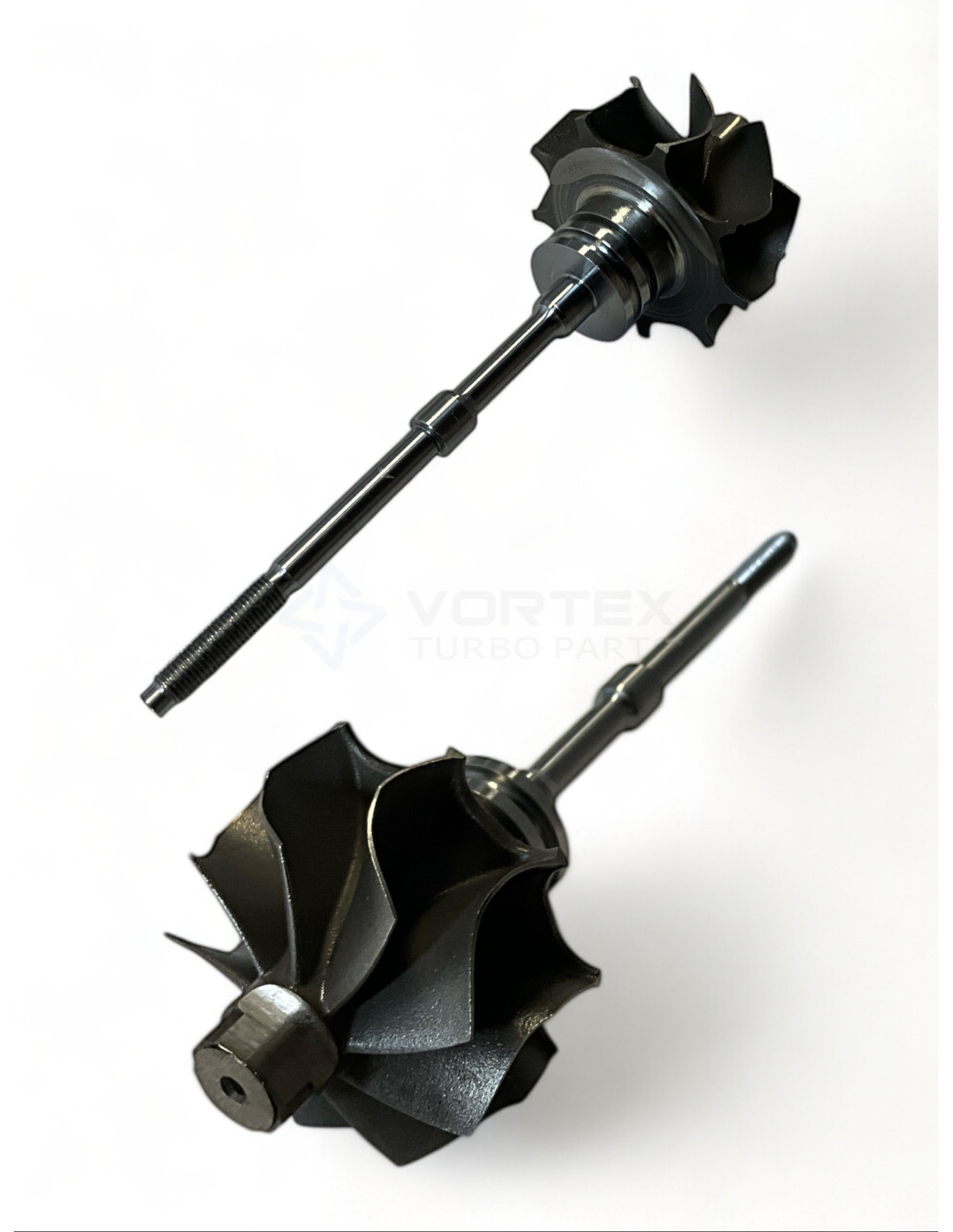

Shaft and wheel SW-G017
SW-G017
New
Out-of-Stock
€40.90
Tax included
Shaft and wheel SW-G017 for turbos 793996-0001, 793996-0002, 793996-0003, 793996-0004, 811310-0002, 812811-0001, 812811-0004, 827727-0001.
SW-G017 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G017
SW-G017 - Compatibility table
| Shaft and wheel SW-G017 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | MGT1238SZ | 793996-0001 | -- |
| Garrett | MGT12 | 793996-0002 | -- |
| Garrett | MGT12 | 793996-0003 | -- |
| Garrett | MGT1238SZ | 793996-0004 | -- |
| Garrett | MGT1238SZ | 811310-0002 | -- |
| Garrett | MGT1238SZ | 812811-0001 | -- |
| Garrett | MGT1238SZ | 812811-0004 | -- |
| Garrett | MGT1238SZ | 827727-0001 | -- |

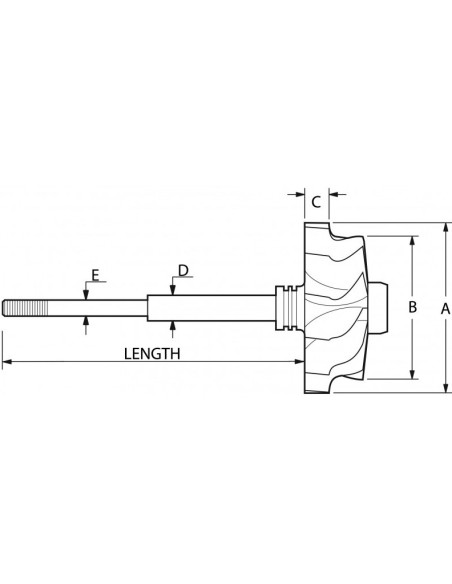

SW-G017 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Slender
Inducer Diameter A (Inducer Diameter A): 35.2
Exducer Diameter B (Exducer Diameter B): 32.0
Tip Height C (Tip Height C): 7.5
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 77.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): GT12
793996-0001, 793996-0002, 793996-0003, 793996-0004, 811310-0002, 812811-0001, 812811-0004, 827727-0001
Data updated: 2024-10-11 12:38:14
