Shaft and wheel SW-G188
Shaft and wheel SW-G188

Shaft and wheel SW-G188

SW-G188
New
Last items in stock (2 Items)
€36.18
Tax included

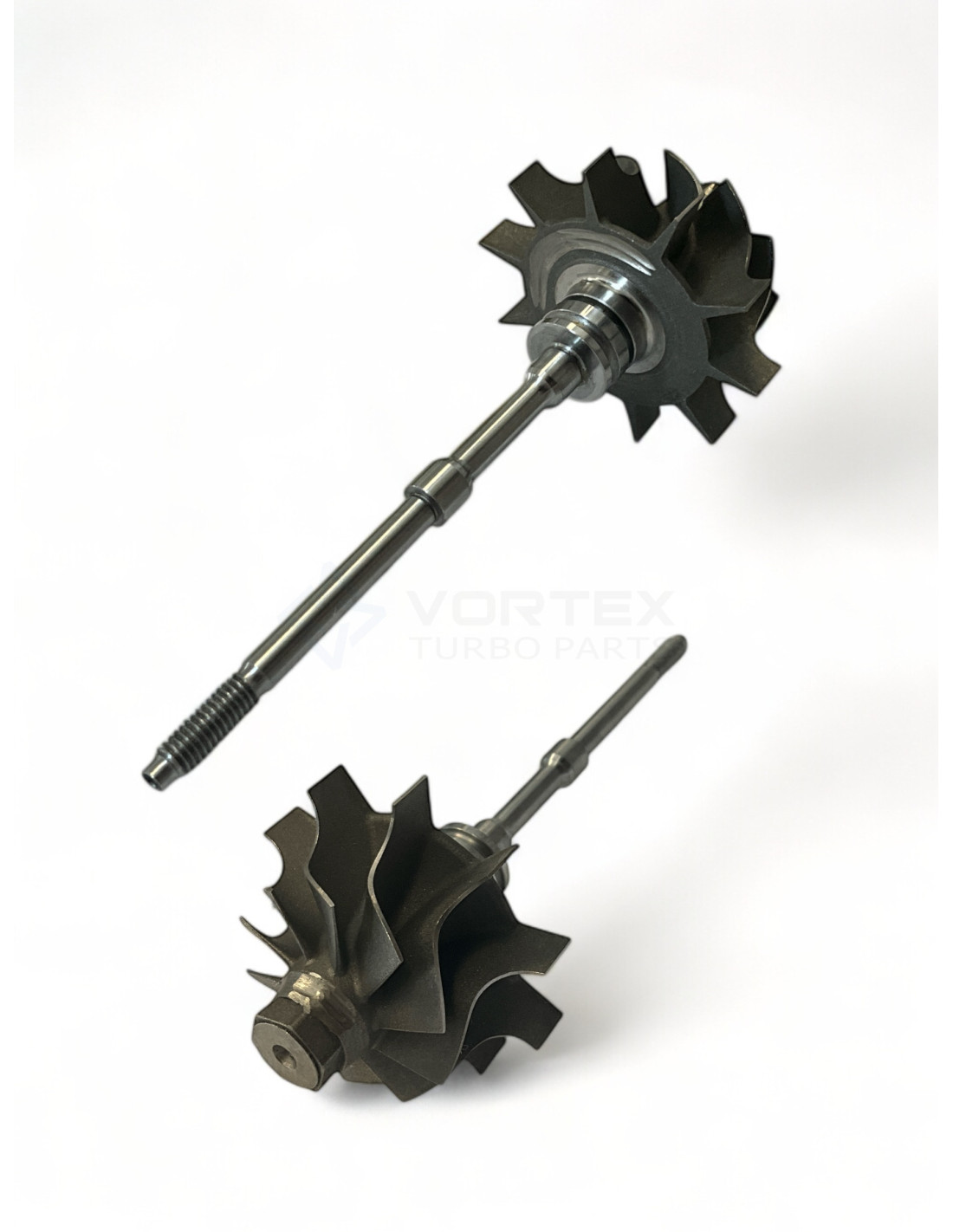

Shaft and wheel SW-G188 for turbos 703863-0002, 802419-0001, 802419-0009.



SW-G188 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G188

SW-G188 - Compatibility table

Shaft and wheel SW-G188 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1544MSZ703863-00021101619, YS6Q6K682BC
GarrettGT1544MSZ802419-00011101619, YS6Q6K682BC
GarrettGT1544Z802419-0009--

SW-G188 - Part Properties

Blades (Shaft blades count): 10

Type (Shaft & Wheel Type): Z Bearing

Inducer Diameter A (Inducer Diameter A): 42.0

Exducer Diameter B (Exducer Diameter B): 29.9

Tip Height C (Tip Height C): 6.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1

Shaft Length (mm) (Shaft Length (mm)): 77.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT14

1101619, 703863-0002, YS6Q6K682BC, 1101619, 703863-0002, YS6Q6K682BC, 802419-0009

Data updated: 2025-03-24 11:41:01
