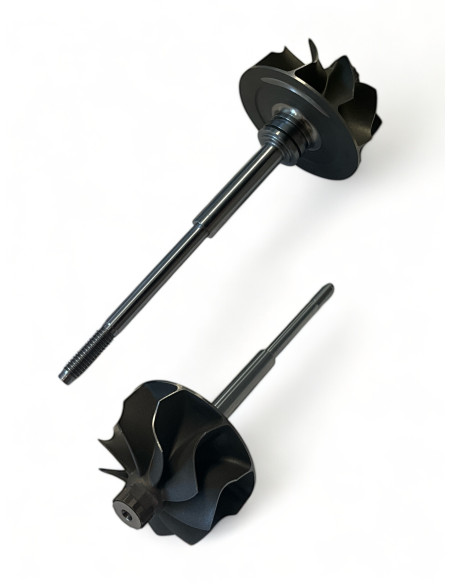

Shaft and wheel SW-M035
SW-M035
New
Please login to see prices and stock
Shaft and wheel SW-M035 for turbos 49477-01500, 49477-01510, 49477-01600, 49477-01610.
SW-M035 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-M035
SW-M035 - Compatibility table
| Shaft and wheel SW-M035 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Mitsubishi | TD04L10-VG | 49477-01500 | -- |
| Mitsubishi | TD04L10-VG | 49477-01510 | -- |
| Mitsubishi | TD04L10-VG | 49477-01600 | -- |
| Mitsubishi | TD04L10-VG | 49477-01610 | -- |

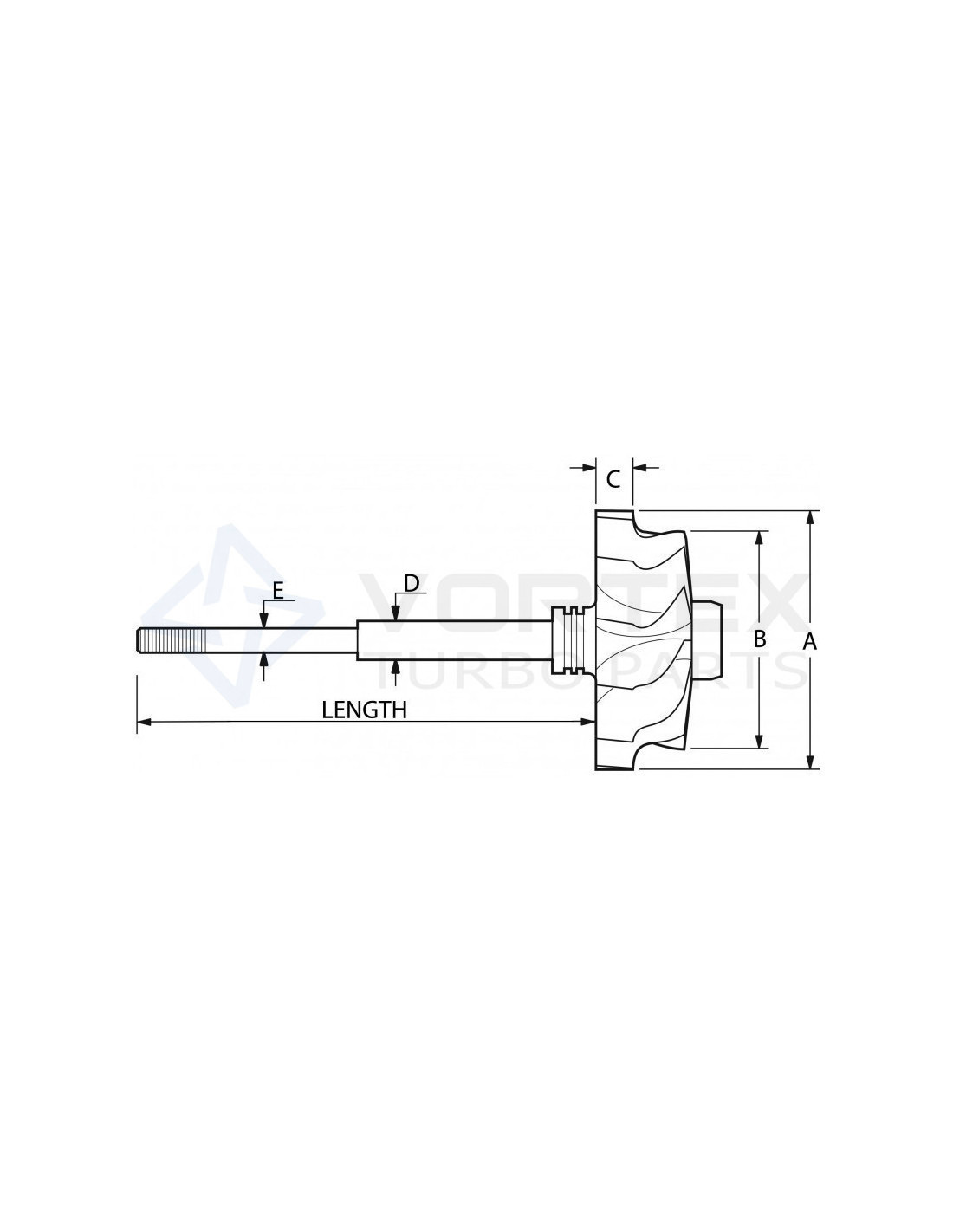

SW-M035 - Part Properties
Blades (Shaft blades count): 9
Inducer Diameter A (Inducer Diameter A): 47.0
Exducer Diameter B (Exducer Diameter B): 41.3
Tip Height C (Tip Height C): 8.3
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.5
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Single
Model (Model): TD04
49477-01500, 49477-01510, 49477-01600, 49477-01610
Data updated: 2025-09-02 17:21:56
