Shaft and wheel SW-G194
SW-G194
New
Please login to see prices and stock

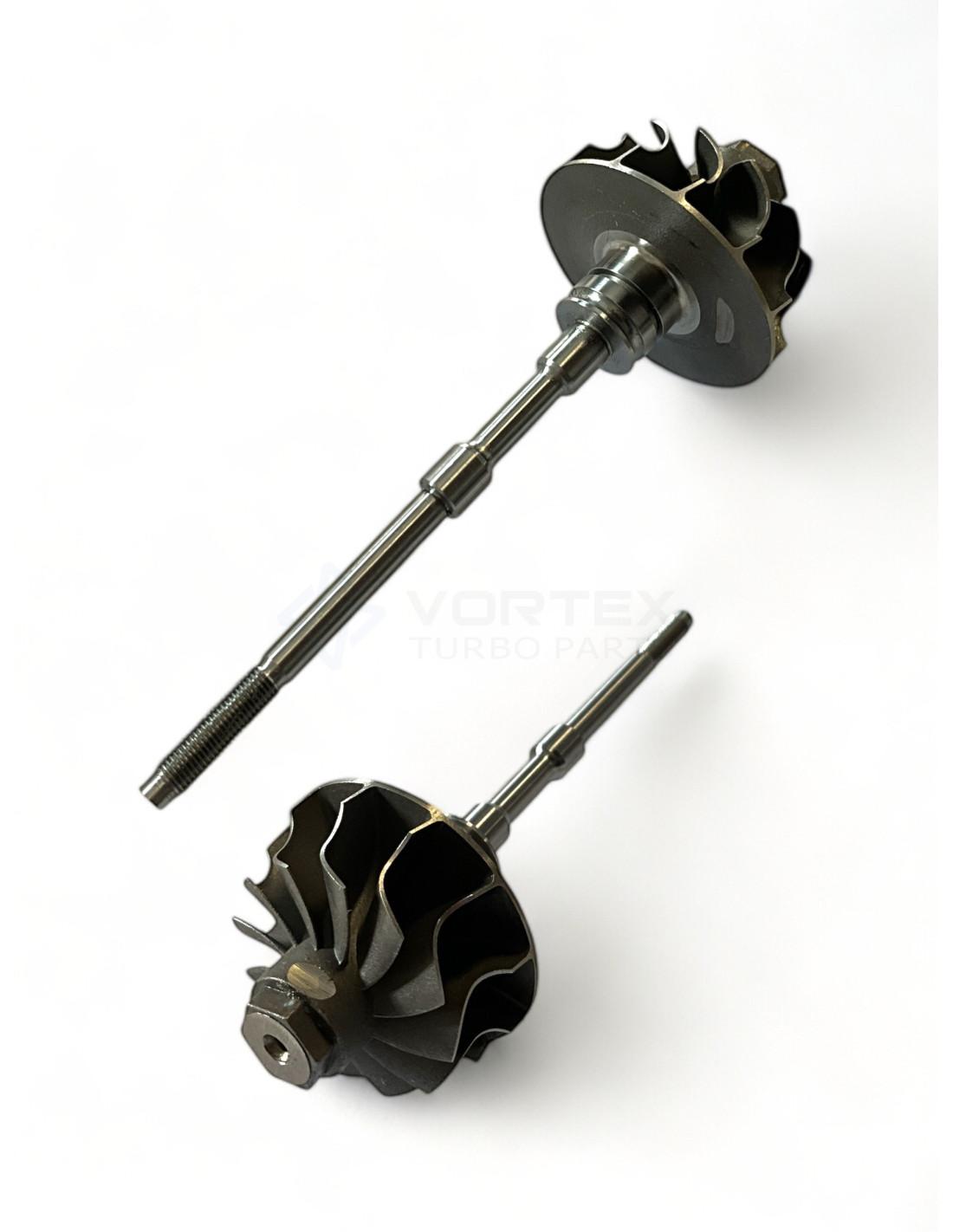

Shaft and wheel SW-G194 for turbos 833852-0001, 836264-0001.
SW-G194 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G194
SW-G194 - Compatibility table
| Shaft and wheel SW-G194 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT1241Z | 833852-0001 | -- |
| Garrett | GT1244SZ | 836264-0001 | -- |
SW-G194 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Z Bearings

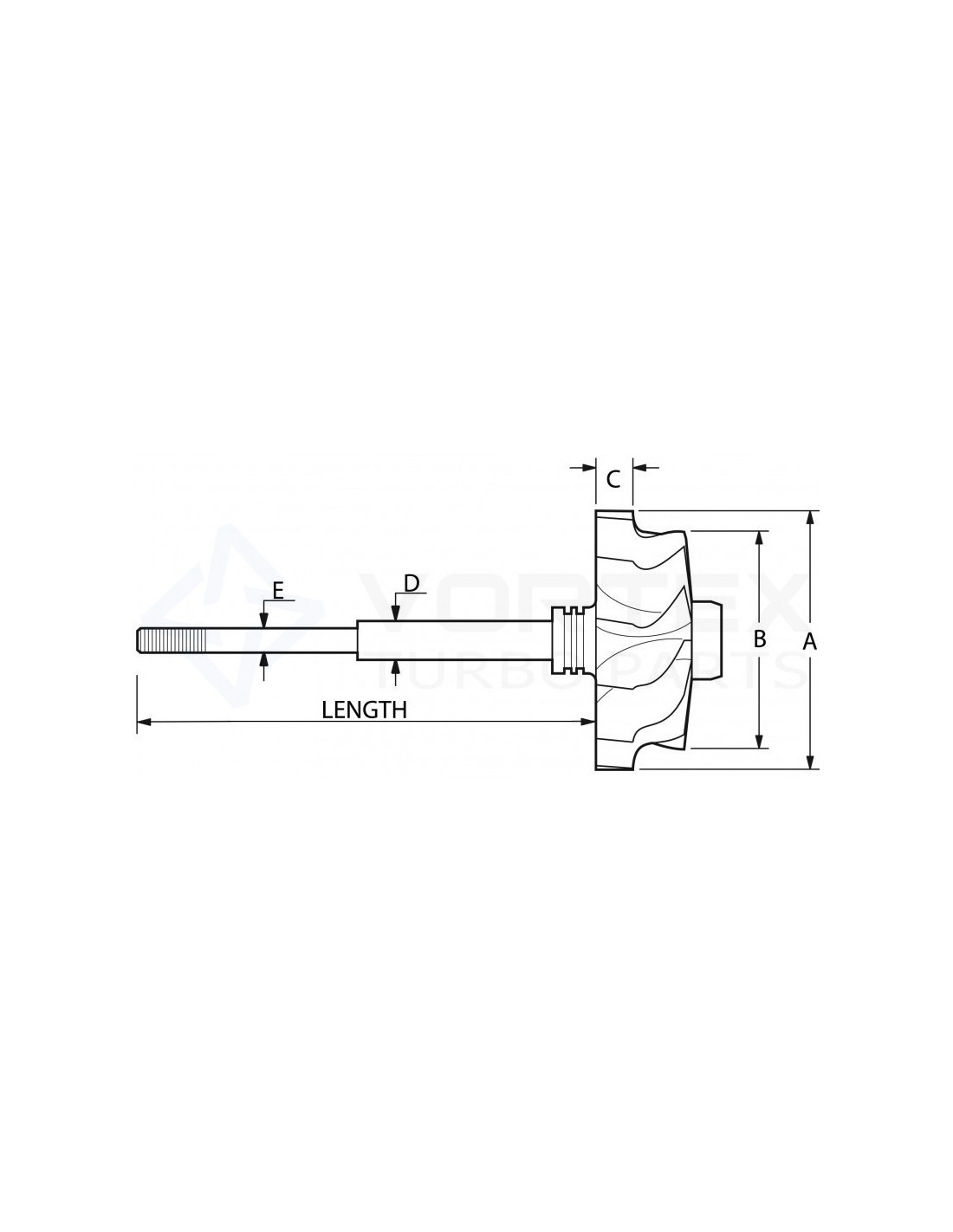

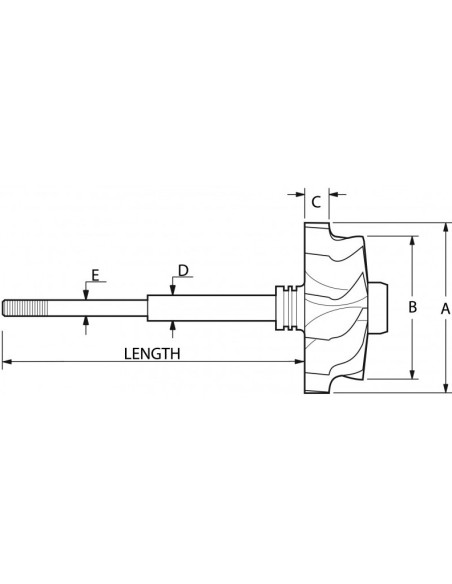

Inducer Diameter A (Inducer Diameter A): 35.4
Exducer Diameter B (Exducer Diameter B): 30.1
Tip Height C (Tip Height C): 4.7
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Single
Model (Model): GT12
833852-0001, 836264-0001
