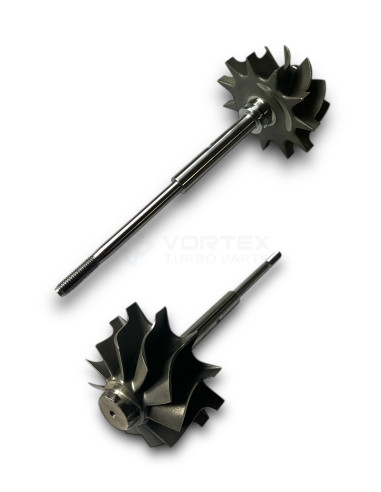

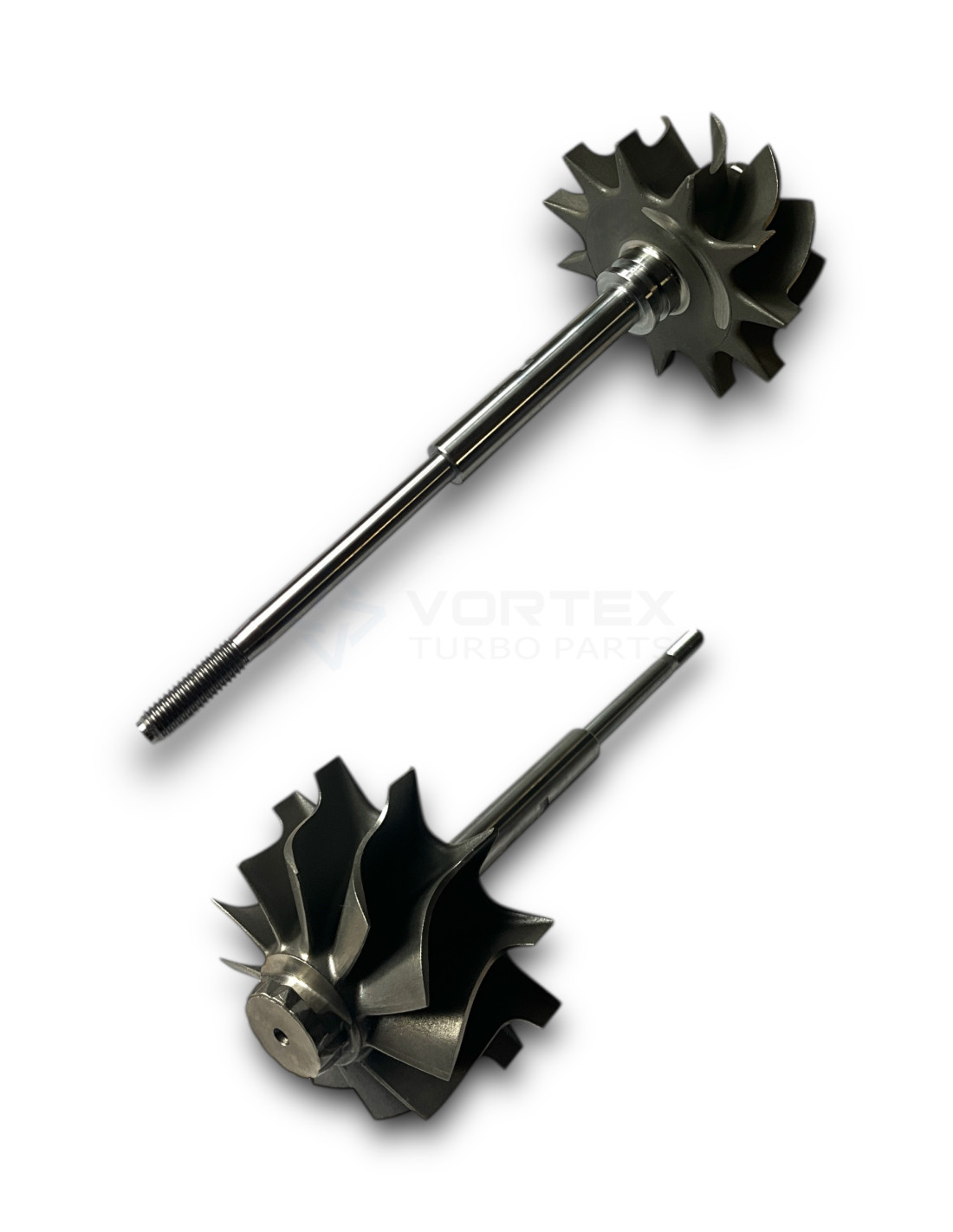

Shaft and wheel SW-H024
Shaft and wheel SW-H024 for turbos 5640240, 5640246, 5640247, 5640249, 5640250, 5640255, 5640256, 5640258, 5640259, 5640263.
SW-H024 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-H024
SW-H024 - Compatibility table
| Shaft and wheel SW-H024 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Holset | HE400VG | 5640240 | -- |
| Holset | HE400VG | 5640246 | -- |
| Holset | HE400VG | 5640247 | -- |
| Holset | HE400VG | 5640249 | -- |
| Holset | HE400VG | 5640250 | -- |
| Holset | HE400VG | 5640255 | -- |
| Holset | HE400VG | 5640256 | -- |
| Holset | HE400VG | 5640258 | -- |
| Holset | HE400VG | 5640259 | -- |
| Holset | HE400VG | 5640263 | -- |
| Holset | HE400VG | 6371258 | -- |
| Holset | HE400VG | 6371259 | -- |
| Holset | HE400VG | 6371275 | -- |
| Holset | HE400VG | 6371276 | -- |
| Holset | HE400VG | 6371277 | -- |
| Holset | HE400VG | 6371278 | -- |
| Holset | HE400VG | 6371279 | -- |
| Holset | HE400VG | 6371280 | -- |
| Holset | HE400VG | 6371281 | -- |
| Holset | HE400VG | 6390411 | -- |
| Holset | HE400VG | 6390412 | -- |
| Holset | HE400VG | 6390413 | -- |
| Holset | HE400VG | 6390415 | -- |
| Holset | HE400VG | 6390416 | -- |
| Holset | HE400VG | 6390421 | -- |
| Holset | HE400VG | 6390422 | -- |
| Holset | HE400VG | 6390426 | -- |
| Holset | HE400VG | 6390427 | -- |
| Holset | HE400VG | 6456388 | -- |
| Holset | HE400VG | 6456389 | -- |
| Holset | HE400VG | 6456719 | -- |
| Holset | HE400VG | 6456720 | -- |
| Holset | HE400VG | 6456721 | -- |
| Holset | HE400VG | 6516746 | -- |

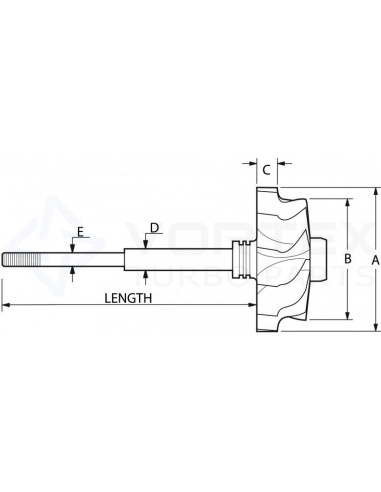

SW-H024 - Part Properties
Blades (Shaft blades count): 11
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 76.0
Exducer Diameter B (Exducer Diameter B): 62.0
Tip Height C (Tip Height C): 8.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 11.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 7.0
Shaft Length (mm) (Shaft Length (mm)): 145.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Twin
Model (Model): HE400
5640240, 5640246, 5640247, 5640249, 5640250, 5640255, 5640256, 5640258, 5640259, 5640263, 6371258, 6371259, 6371275, 6371276, 6371277, 6371278, 6371279, 6371280, 6371281, 6390411, 6390412, 6390413, 6390415, 6390416, 6390421, 6390422, 6390426, 6390427, 6456388, 6456389, 6456719, 6456720, 6456721, 6516746
Data updated: 2025-11-10 16:40:22
